KOSO, digital gear indicator

In the past, with 3 gears on your Flathead, life was easy. Today, with up to 6 gears, it is practical to have a gear indicator to eliminate the guesswork. The large numbers and blue backlighting make it easy to read, day or night.

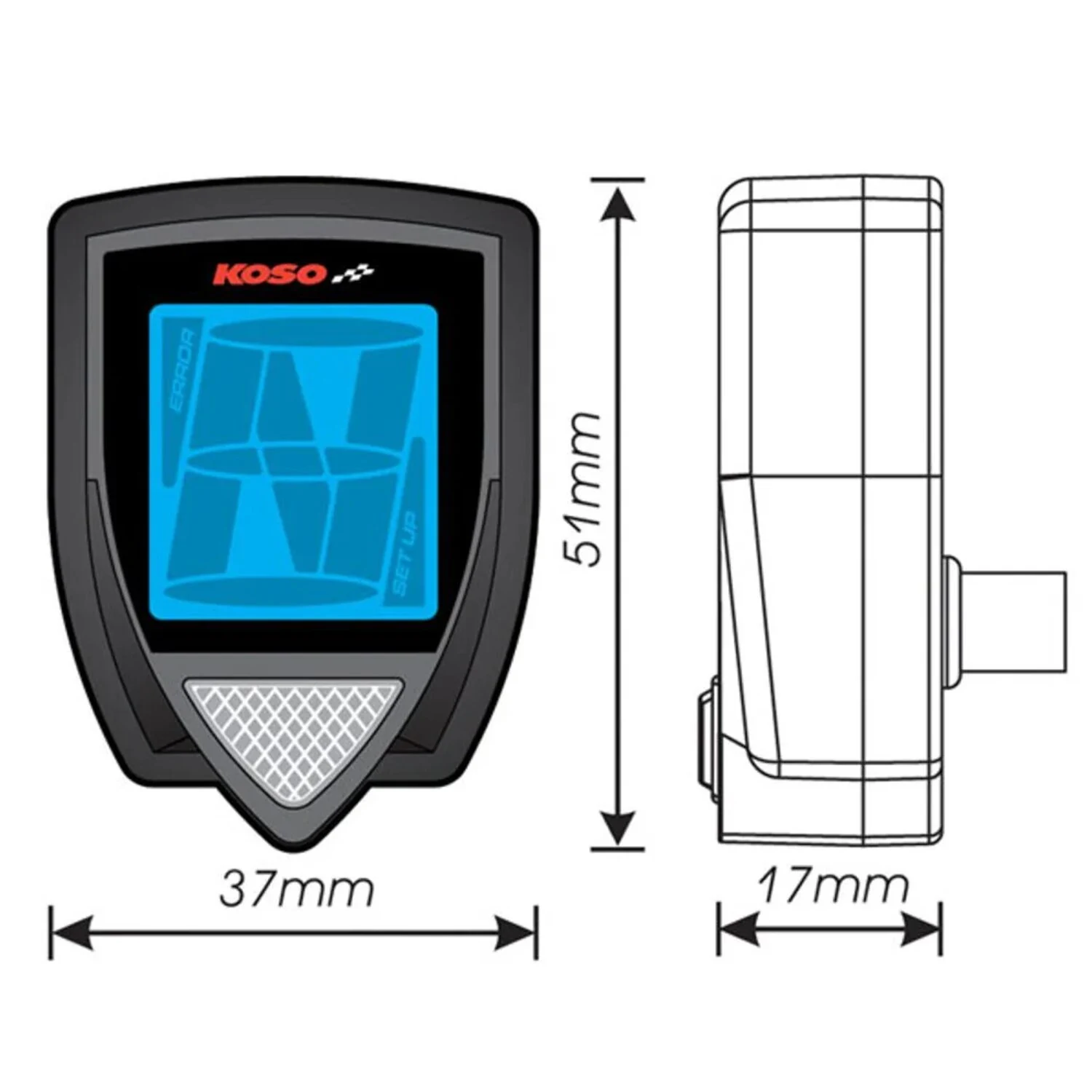

- Gear indicator display: N, 1, 2, 3, 4, 5, 6, 7 - Large numbers - Blue backlight - Effective voltage DC12V - Temperature from -10 to +60°C - Standard JIS D 0203 specified instrument - For models equipped with the 3-pin J1850 bus system - Dimensions: 37mm wide x 51mm high x 17mm deep - Weight approx. 51.3 grams.
Note: See 701741 for the optional gear indicator bracket. Allows the indicator to be mounted on 1-1/4" (32mm) handlebars.


Specifications


Brand
Koso


Application
04-11 H-D (excl. CAN-bus and 07-08 XL1200 models) (NU)


Packaging weight
0.155 kg


HS Code
90303100


Original name
KOSO, indicador de marchas digital
