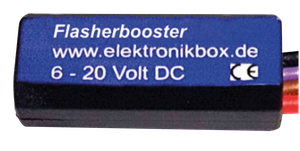

Axel Joost Elektronik, Evo Flasher 2 (91-94)

Replacement Direct Axel Joost indicator module for OEM module 68537-89G, but much smaller and more robust. Offers 4 overtaking flashes, 40 regular flashes with auto-cancel and hazard light function. Compatible with LED indicators or halogen bulbs.
- Auto-cancel function - Press < 0.5 seconds for 4 flashes (overtaking) - Press > 0.5 seconds for 40 flashes - Press again to stop flashing - The auto-cancel function can be deactivated by connecting the green wire to earth - Integrated hazard light function (press both left and right buttons to activate, press one button to stop) - Compatible with LED or halogen bulbs - Dimensions: 38 mm x 16 mm x 11 mm - Body material: ABS with 2 k epoxy resin encapsulated - Input voltage range: 7 - 18 Volts - Connections: Inputs 0.14 mm², Outputs 0.75 mm² - Maximum output power: 40 Watts / Output - Maximum ambient temperature: 80 degrees Celsius


Specifications


Brand
Elektronikbox


Application
87-93 FL; 90-95 FX; 92-93 XL (NU)


OEM
68537-89G


Packaging weight
0.039 kg


HS Code
87141090


Motorcycle family
DYNA, FXR, SOFTAIL, SPORTSTER, TOURING


Original name
Axel Joost Elektronik, Evo Flasher 2 (91-94)
