Bessey, self-adjusting vertical lever press. 35mm

With vertical clamping action.
Max. clamping width: 35mm.
Automatic adjustment range: 20mm.
Maximum clamping force: 1100N.
Weight: 0.22kg.

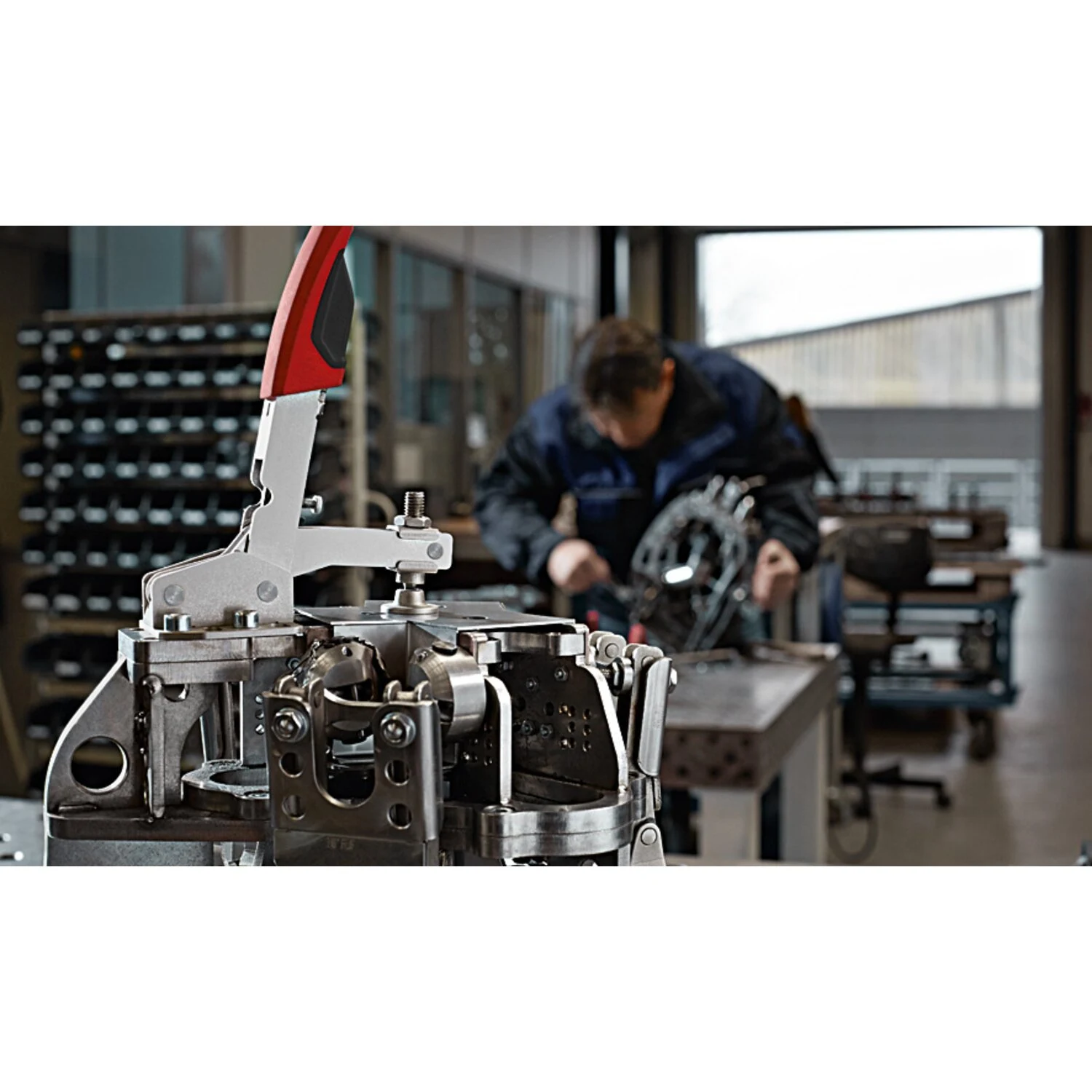

Versatile lever-type clamp with release trigger, for use on machine tables or similar. The clamp body is screwed to the table and the arm provides clamping action via a rotating round pressure plate. In clamping position, the high-quality 2-component handle is horizontal. Automatic adjustment up to the specific range, after which manual adjustment is possible. The clamping force is adjustable, depending on the setting of the screw in the joint.


Specifications


Brand
Bessey


Application
Universal


Material
Steel


Packaging weight
0.218 kg


HS Code
87141090


Original name
Bessey, self-adjusting vertical toggle clamp. 35mm
