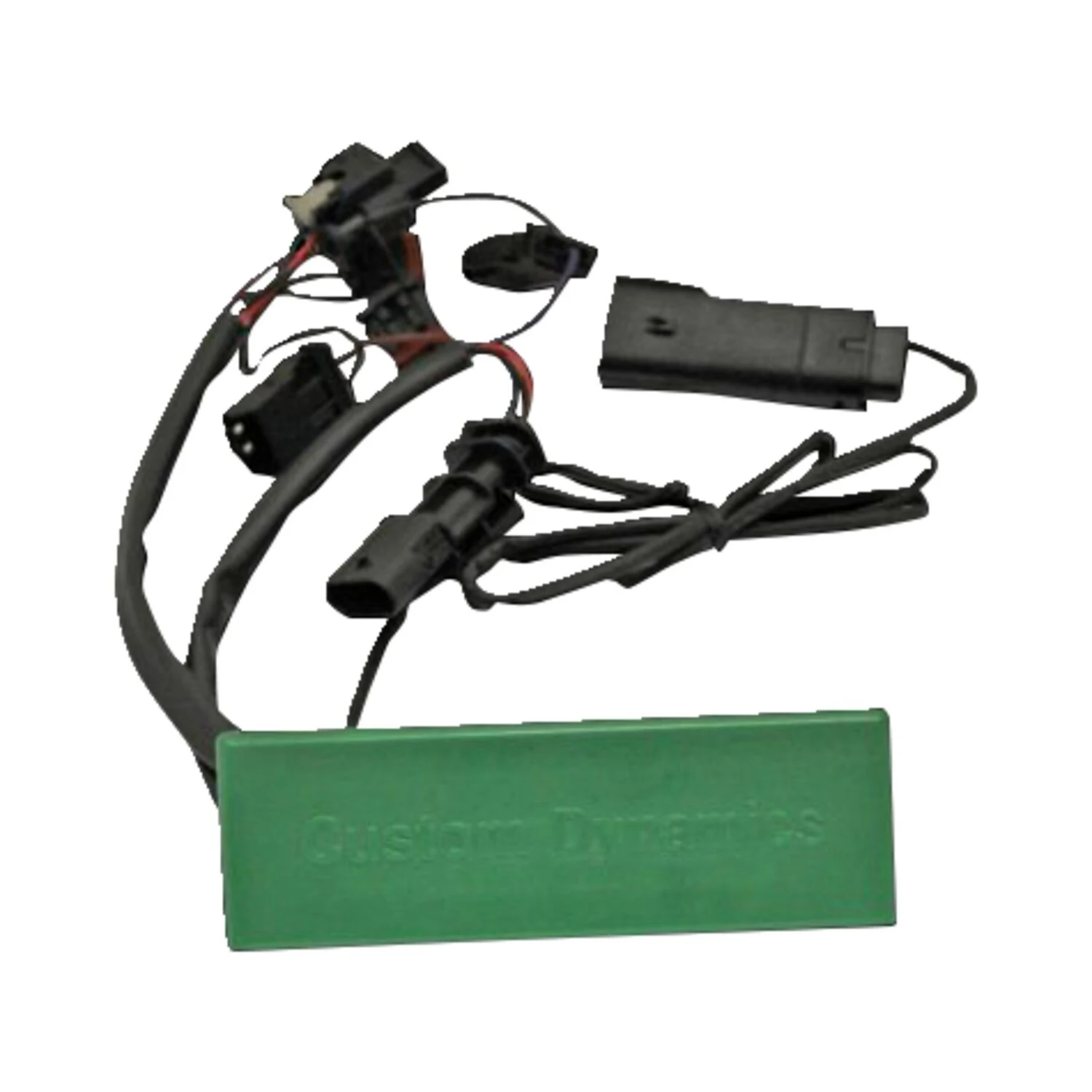

'Smart Triple Play' unit Custom Dynamics. M8 Softail

Plug & play installation.
For models with central rear light.
Converts the rear turn signals (1156 bulb) to run-brake-turn function.
With integrated 'no heat' load equaliser, compatible with LEDs or incandescent bulbs.
Choice of 10 user-selectable brake light flash/blink patterns (the user can also select no flash/blink on braking).
Option to apply brake flash/blink patterns to the centre rear light only, the rear indicators only, or both the rear indicators and the centre rear light.
The 'SMART Function': If brake flashing/blinking is activated, the flashing/blinking pauses on the indicator if there is simultaneous braking and turning.
Includes 10 user-selectable running light intensities to match the centre tail light intensity. Built-in short circuit protection. Sealed in a weather-resistant casing.
Slim design. Dimensions: 4.2" (10.7cm) x 1.4" (3.6cm) x 0.6" (1.5cm).
Note: Rear indicators must be converted to red to comply with DOT regulations. Please note that red does not comply with EU regulations.


Specifications


Brand
Custom Dynamics


Application
18-20 FLHC Heritage Classic 107; 18-24 FLHCS Heritage Classic 114; 18-20 FLDE Deluxe 107; 18-20 FXDR 107; 18-20 FXLR Lowrider 107; 20-21 FXLRS Lowrider S 114; 22-24 FXLRS Low Rider S 117; 22-24 FXLRST Low Rider ST 117; 2022 FXRST Low Rider El Diablo 117


Height
0.6 inch


Position
['Trasera']


Packaging weight
0.163 kg


HS Code
85129090


Motorcycle family
SOFTAIL


Original name
Custom Dynamics, 'Smart Triple Play' unit. M8 Softail
