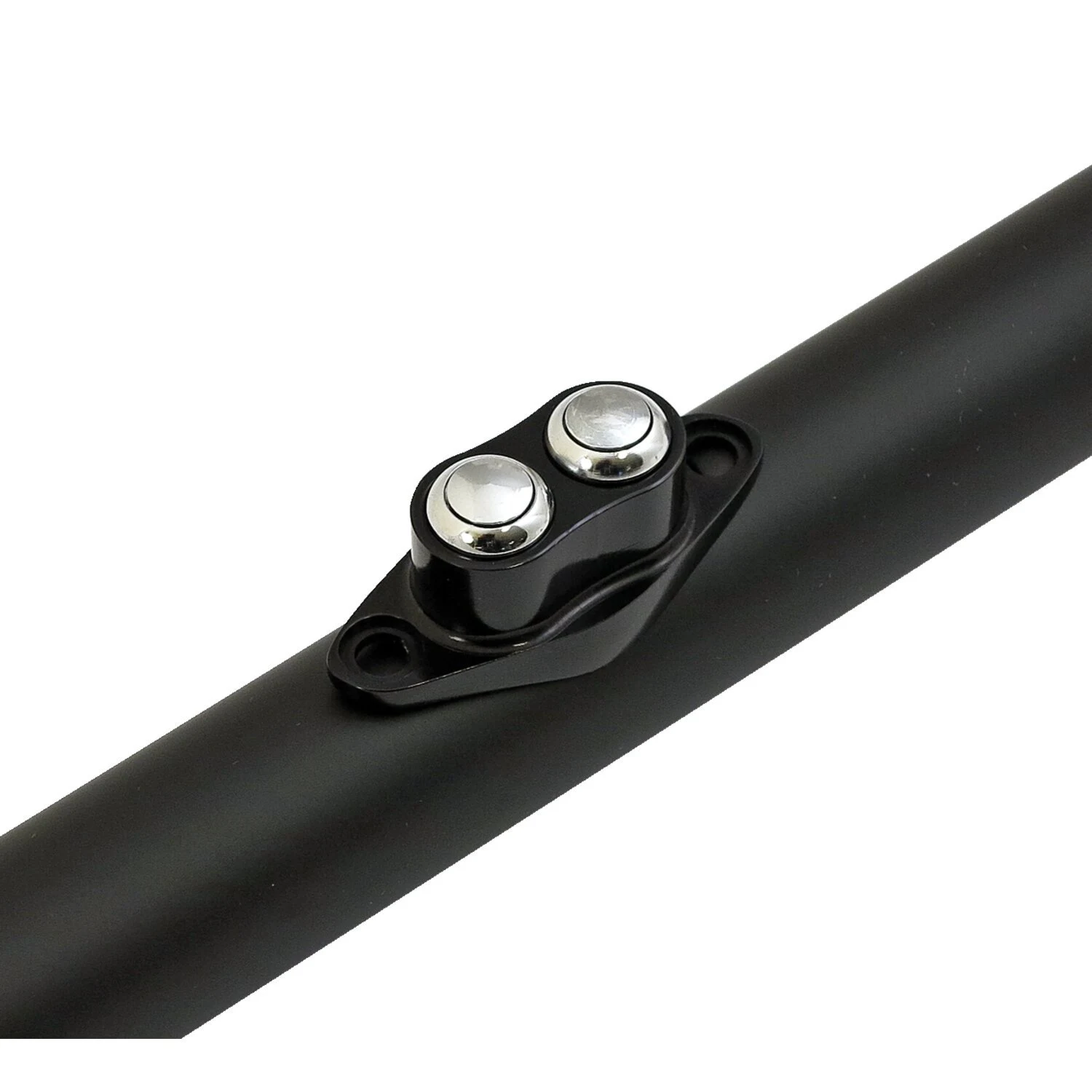

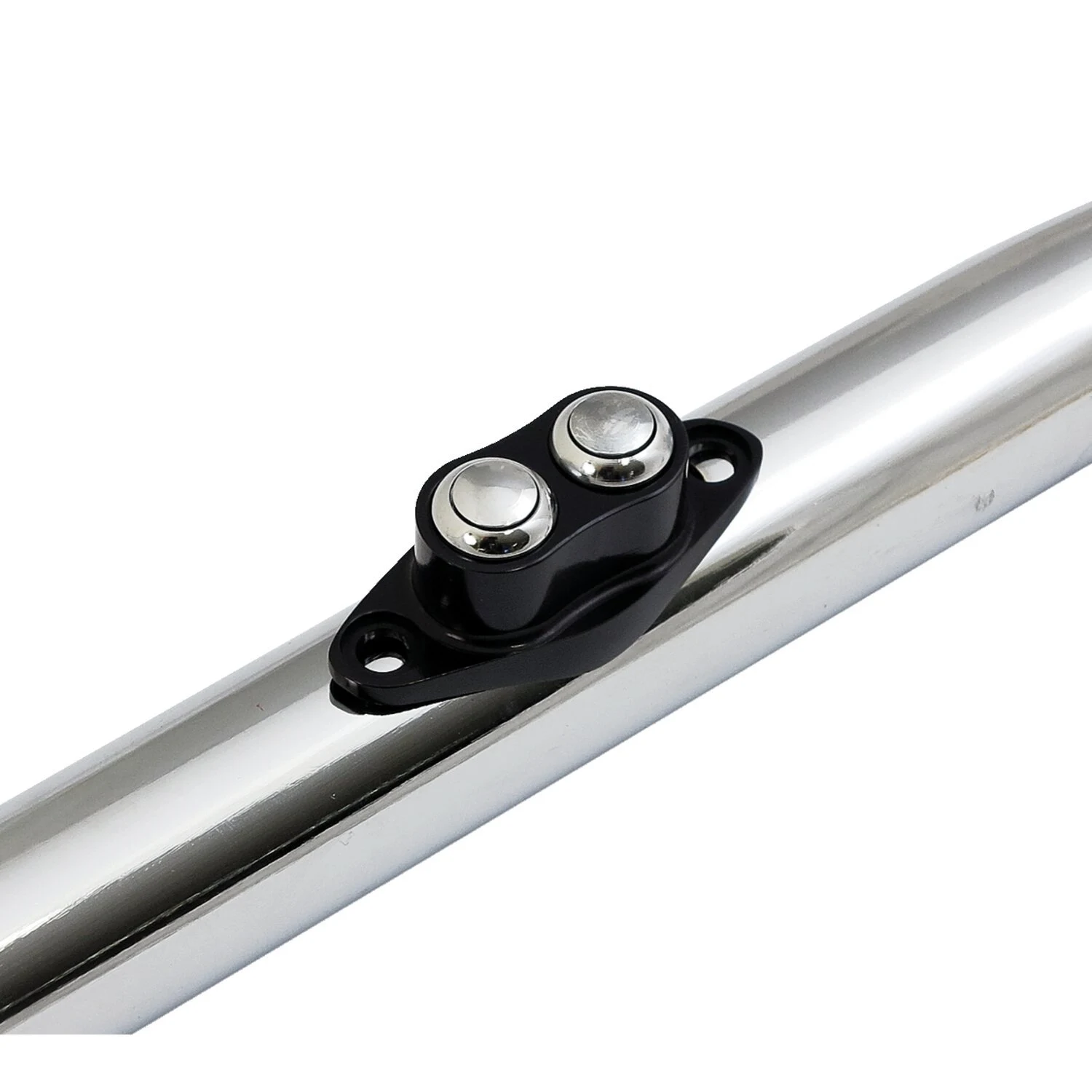

D. black handlebar switch assembly

Machined aluminium housing, with two pre-wired stainless steel momentary push-button switches, curved to follow the contours of the handlebar when installed. Can be used as a horn, start or indicator switch. Mounts directly onto the handlebar. Offers a perfect fit on 1" diameter bars and will show a slight 'air gap' on smaller 7/8" (22 mm) bars, an aesthetic issue at most. Approximate dimensions: Body 21.2 mm high x 51 mm wide. Switch head, without bezel Ø 11.9 mm, switch head with bezel approx. Ø 17.5 mm, switch knob thread Ø 7.9 mm with 5/16"-24 thread.


Specifications


Brand
MCS


Application
Universal


Colour
Black


Material
Aluminium


Diameter
1 inch


Position
['Side']


Packaging weight
0.052 kg


HS Code
85365019


Original name
Double d, handlebar switches. Black
