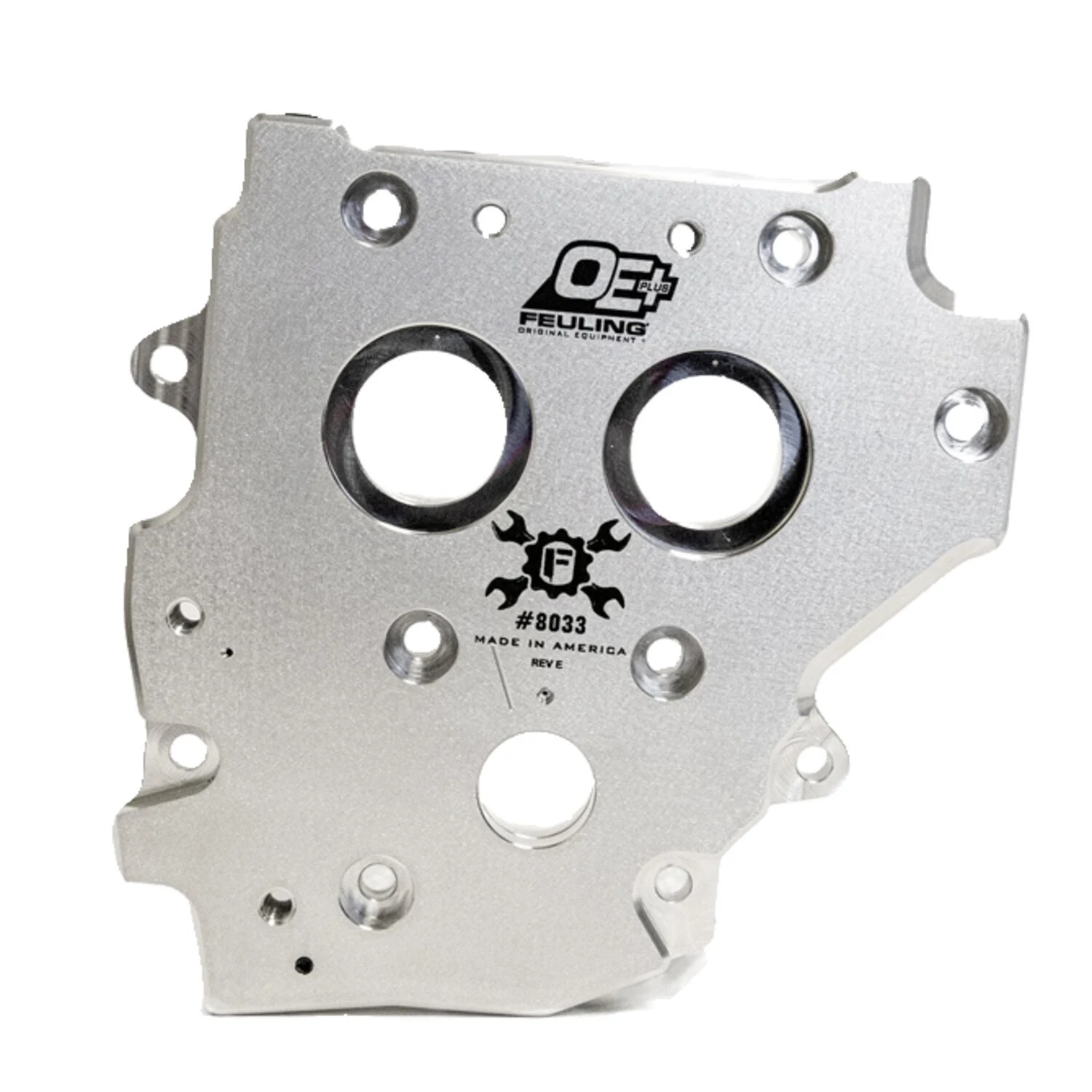

Feuling, OE+ camshaft support plate. Gear or chain drive

Direct replacement for stock cam plates. OEM replacement reference 25355-06. Feuling OE+ plates are made from 6061 aluminium, offering greater rigidity and machined to high tolerance standards.
Compatible with both stock chain and aftermarket gear drives for use with 07-17 style stock oil pumps and Feuling oil pumps: 707380, 566076, 707384.
Note: Gear drive cam systems require lock plates; see Feuling 566113.
Feuling's OE+ stock replacement cam plates are machined from 6061 aluminium, offering greater rigidity and machined to Feuling's high tolerance standards. The pressure relief valve and spring are pre-set, matched and seated by Feuling with a full 50-60 psi opening pressure. The OE+ cam plates are a direct bolt-on replacement and accept the factory oil pump. Like all Feuling components, the competitively priced OE+ cam plates are designed and manufactured to the highest standard of quality with proven Feuling performance.
• Tighter cam journal bore tolerance for improved cam fit • Added oil groove in the cam journal for cold-start protection and increased cam journal lubrication • Added oil pressure feed holes at the front and rear of the cam journals to prevent excessive thrust wear


Specifications


Brand
Feuling


Application
07-17 Softail; 06-17 Dyna; 07-16 FLT/Touring (NU)


OEM
25355-06


Sales unit
Kit


Packaging weight
0.888 kg


HS Code
84831021


Motorcycle family
DYNA, SOFTAIL, TOURING, TRIKE


Original name
Feuling, OE+ cam support plate. Gear or chain drive
