Feuling, St Race series cam head kit

BULLETPROOF™ CAMCHESTS!
Complete FEULING camchest kits include all the necessary components from the top to the bottom of the camchest, conveniently packaged under a single part number (#). These combined kits not only ensure that every individual part is designed to work and function together, but to do so in perfect harmony. These camchest kits remove the uncertainty from the ordering process and guarantee the engine builder maximum reliability, optimal performance and the lowest possible engine and oil temperatures.

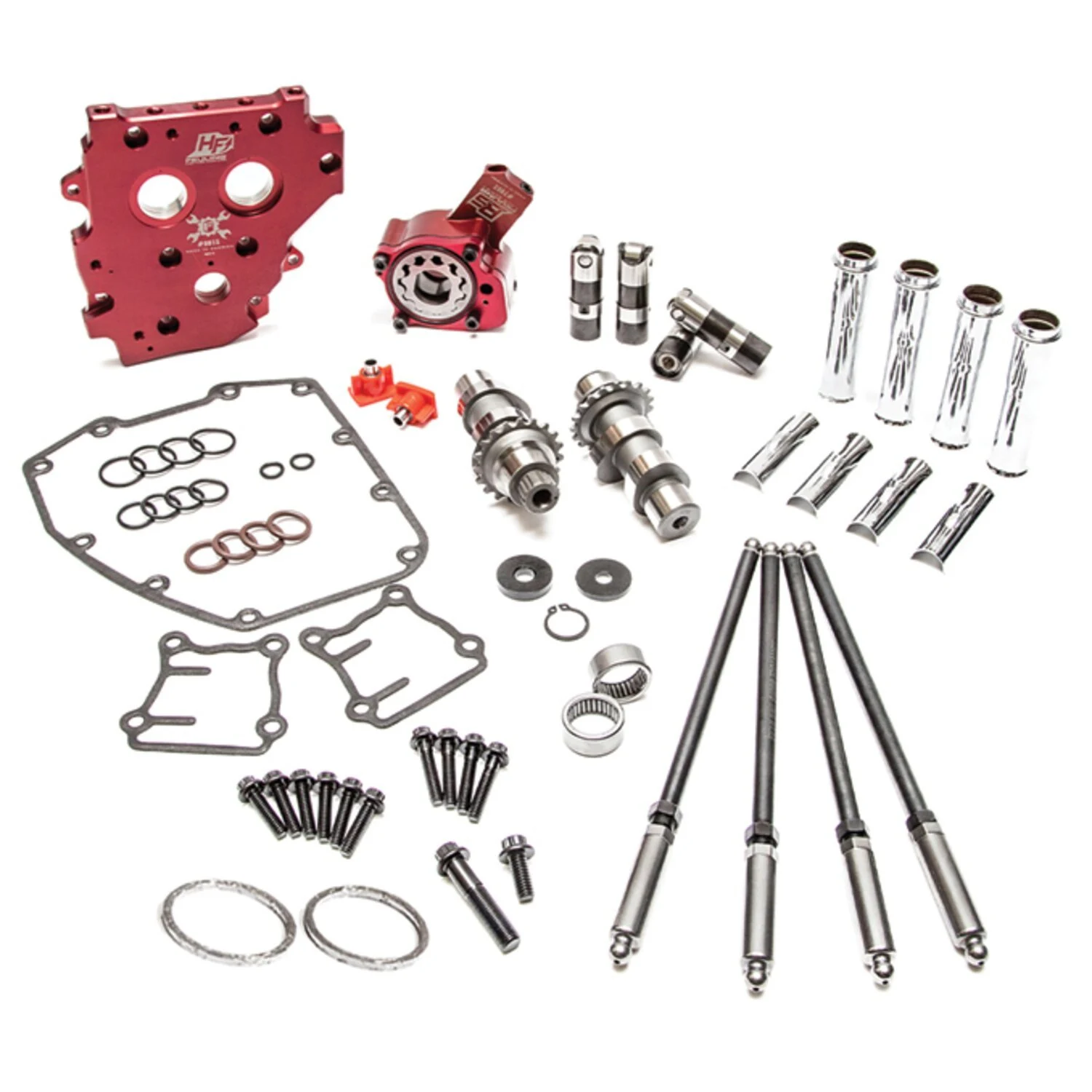

The Complete Camchest Kits include: FEULING high-volume oil pump, high-flow camplate, REAPER Series camshafts, short-travel roller hydraulic lifters, quick-install adjustable pushrods with .134" wall thickness, chrome pushrod tubes, Timken bearings, gaskets, O-rings, exhaust gaskets, ARP fasteners, washers, molybdenum paste, Loctite and hardware.
Camchest kits are available in FEULING HP+ and RACE SERIES combinations, and with gear drive or chain drive REAPER camshafts. Compatibility available for '99-'17 Twin Cam engines. Engine temperatures 25-35 degrees cooler, oil temperatures 15-30 degrees cooler, 15-30 pounds more oil pressure, quieter and smoother engine running, elimination of wet sumping, crankcase blow-by and oily air filters.
594 CAMS - High-performance camshaft for a variety of engine sizes; 103", 110" and 124" large-displacement engines seeking a superior torque band with excellent horsepower gains on heavy bikes (RPM 2,200 - 6,250). Medium-high displacement 95" style engines on lighter bikes looking to twist the throttle and harness the power (RPM 2,500 - 6,800). Large displacements respond well to an increase in compression ratio, and smaller displacements will require it. The 594 camshafts require high-performance valve springs, pushrods, lifters, carburettor or throttle body work, performance exhaust, intake and clutch.
Note: Product available on special order only.
To order, please contact your MCS sales representative.


Specifications


Brand
Feuling


Application
TC '07-'17 Includes '06 Dyna, Chain Drive, Includes 594 Reaper Camshafts #1303, Cam Install kit #2070, RACE SERIES Short Travel Lifters #4050ST, Quick Install Adjustable Pushrods #4096, Chrome pushrod tubes #4095, RACE SERIES oil pump #7062, Natural camplate #8015, and ARP Camplate/Oil Pump Fasteners #8020, Replacement tensioner pads #8078.


Sales unit
Kit


Packaging weight
0 kg


HS Code
84831021


Motorcycle family
DYNA, SOFTAIL, TOURING, TRIKE


Original name
Feuling, Race Series St Camchest Kit
