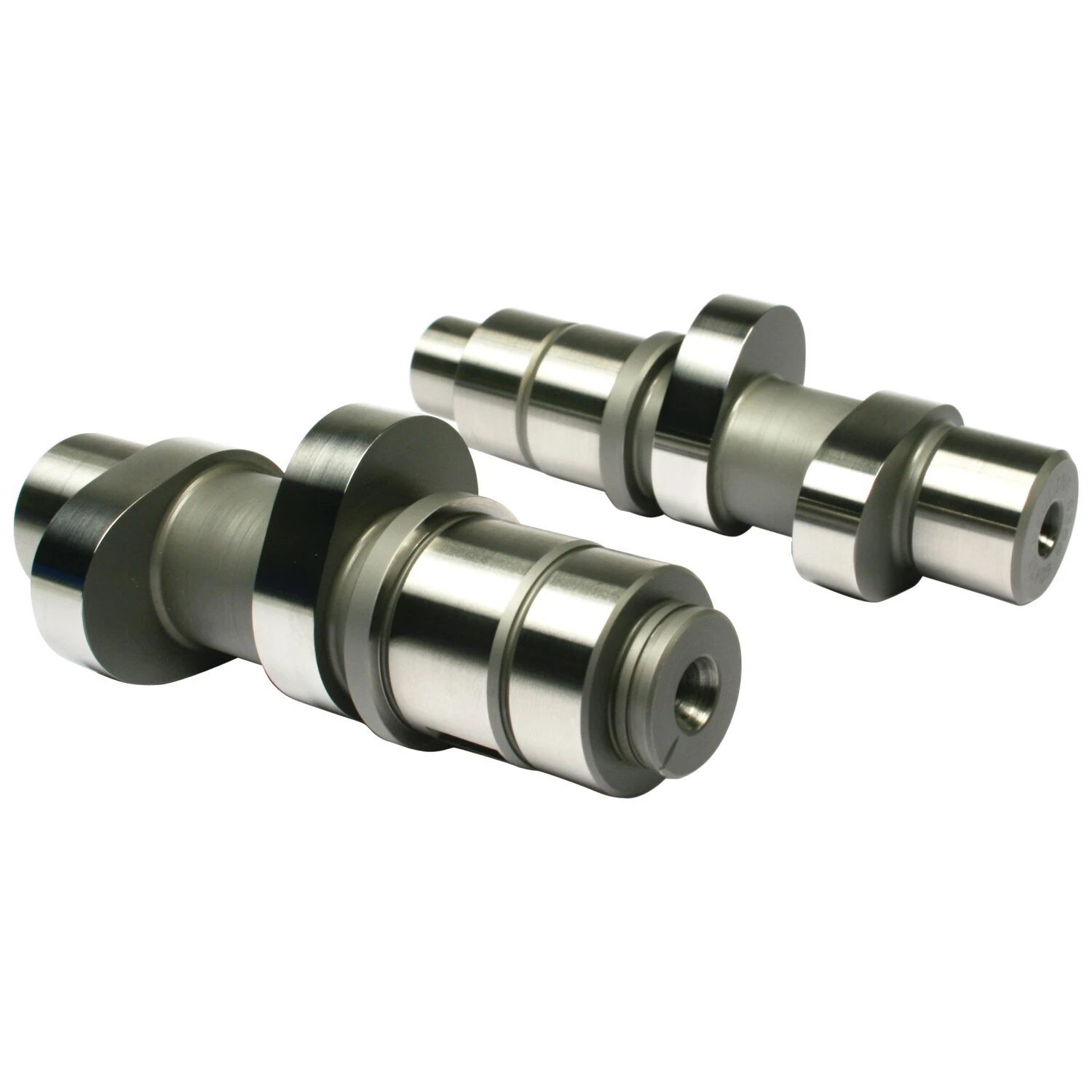

Feuling, Reaper 630G gear-driven camshaft kit

Gear drive. Intake valve lift of .630" and exhaust of .630". The camshafts are supplied without inner and outer drive gears.
Large, high-performance engines with head work and high compression ratios. High-performance camshaft with good low-rev behaviour, similar to stock. Significant power gains in the mid and high RPM range. Street-legal power band from 2500 to 6900 RPM.
Note: These high lift camshafts have smaller base circles and therefore require adjustable pushrods to compensate for the additional length needed.
Note: The gears must be purchased separately. Installation is straightforward, by press fit. If you have gears from your current gear-drive camshaft, Andrews or S&S, these can be reused, or a new S&S set can be purchased (531264).
Note: The 566113 locking plates are sold separately. They are required to block the oil holes of the hydraulic chain tensioners when installing gear-driven camshafts.


Specifications


Brand
Feuling


Application
07-17 Softail; 06-17 Dyna; 07-16 FLT/Touring (NU)


Material
Steel


Packaging weight
1.339 kg


HS Code
84831021


Motorcycle family
DYNA, SOFTAIL, TOURING, TRIKE


Original name
Feuling, Reaper gear driven 630G camshaft set
