Goodridge, universal pre-assembled brake line. 7"

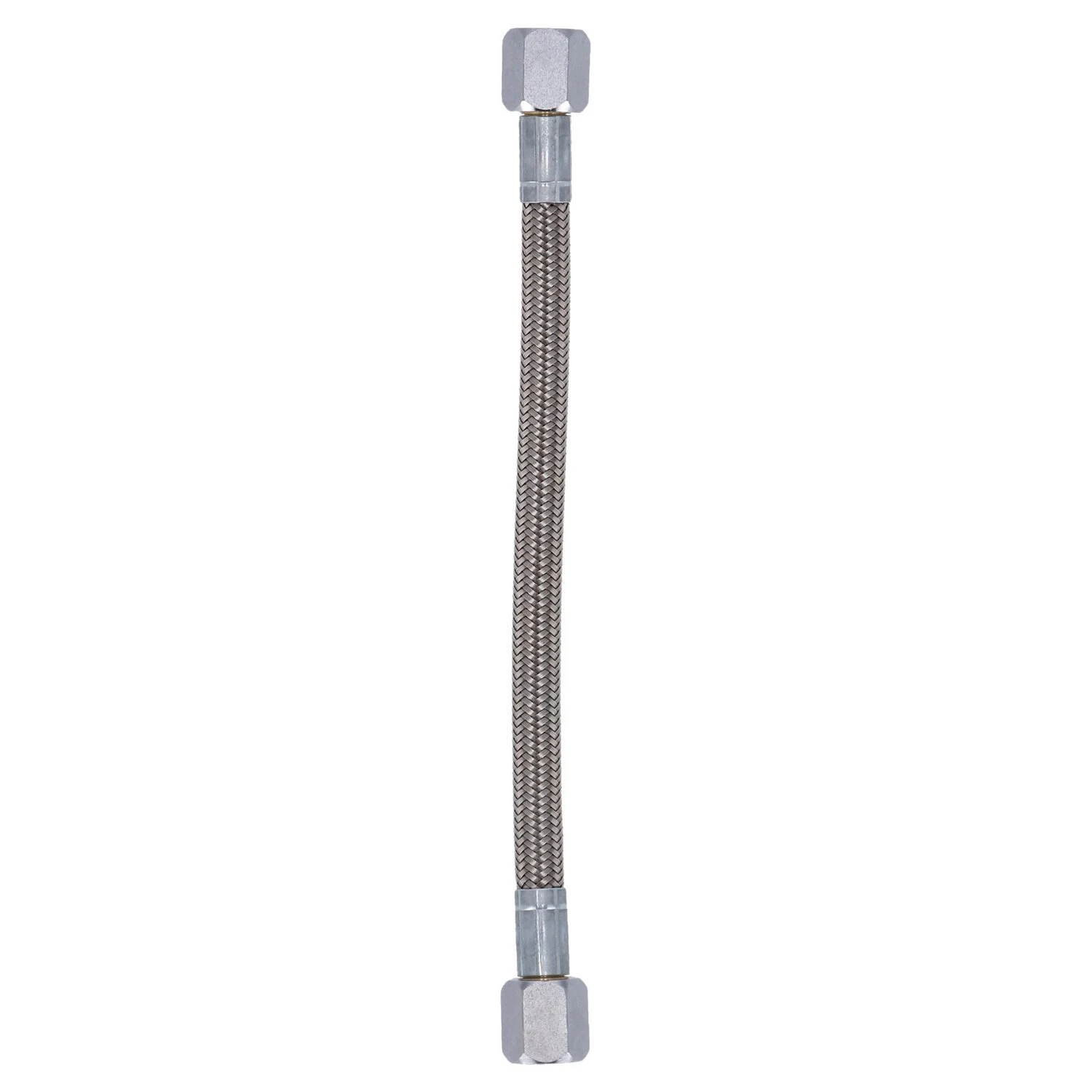

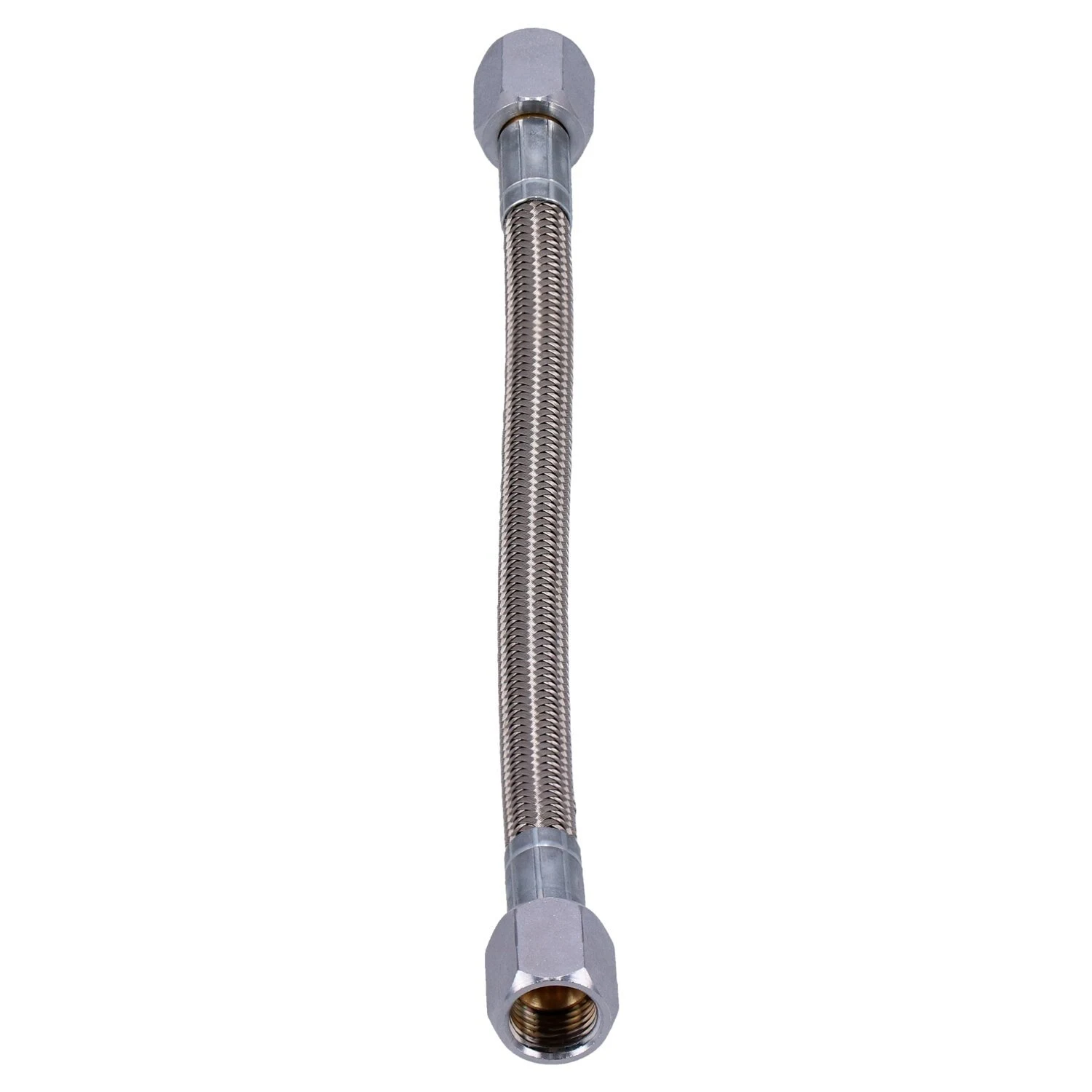

Pre-assembled, fixed-length stainless steel braided oil line, with swivel female fittings installed. Used in Pre-Twin Cam applications, both stock and custom. Simply buy the oil line in the correct length, along with the appropriate fittings for your application, and you will have an oil line set that will outperform all others in quality, fit and finish. Comes with PTFE-lined inner hose and braided steel outer cover.
Note: The oil line has highly polished stainless steel JIC -6 swivel fittings, pre-installed, and fits the oil line fittings listed below.
Note: The mentioned oil line length is the distance between the internal flares of the swivel female fitting. The actual overall hose length is 2" longer than stated.
Note: The oil line fittings are highly polished stainless steel. With JIC -6 connection on the oil line side and 1/8" NPT thread (approx. 10 mm diameter, as on the oil tank and oil pump) or 1/4" NPT (approx. 13.5 mm diameter) to suit regular H-D applications. Order the oil line fittings separately as required:
- 921912 1/8" straight - 921913 1/4" straight - 921914 1/8" 45° - 921915 1/4" 45° - 921916 1/8" 90°


Specifications


Brand
Goodridge


Application
Pre-Twin Cam & custom applications


Material
Stainless Steel


Finish
Chrome


Length
7 inch


Packaging weight
0.224 kg


HS Code
84849000


Motorcycle family
BIG TWIN, DYNA, FX, FXR, SOFTAIL, TOURING


Original name
Goodridge, universal pre-assembled oil line. 7"
