Motorcycle belt tensioning tool

Belt-driven motorcycles require correct tension to avoid excessive stress on moving components and ensure a smooth and comfortable ride.
Achieving the correct tension adjustment usually requires numerous measurements and adjustments, which is time-consuming.
Our motorcycle belt tensioning tool, the Belt Monkey, is designed to eliminate the need for multiple measurements and adjustments, achieving the correct tension first time.
Belt Monkey allows users to tension the belt quickly and easily.
The simplicity of the product allows you to maintain the motorcycle yourself, regardless of experience.
How to use your Belt Monkey:
Step 1: Consult your motorcycle manufacturer's manual to determine the required displacement with 10 lb of pressure.

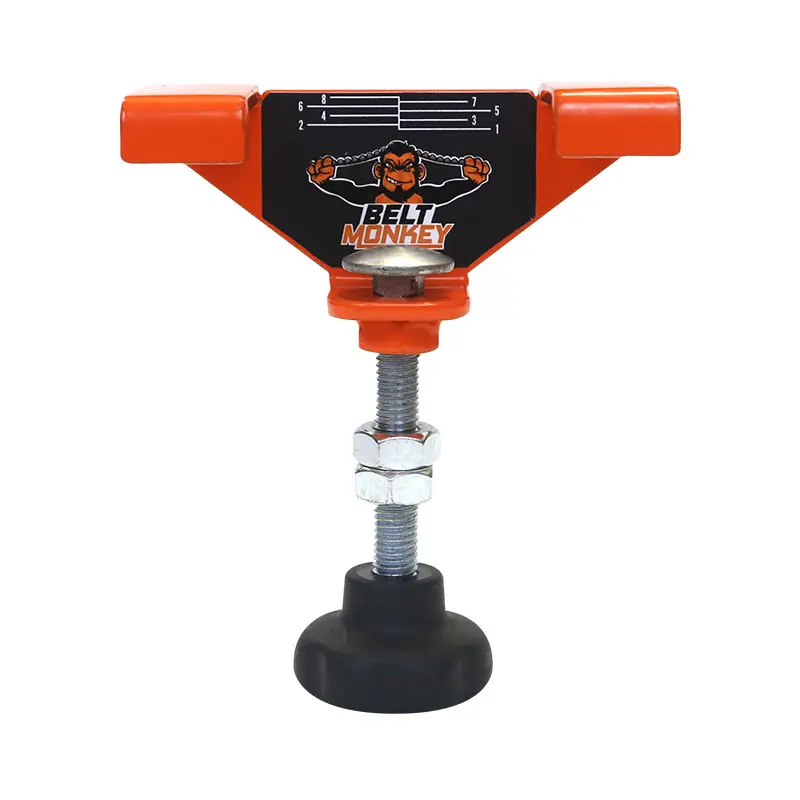

Step 2: Align the bottom of the curved edge with the required adjustment line and tighten the lock nuts until they touch the orange base. Secure the nuts to each other using two spanners to set up your Belt Monkey.

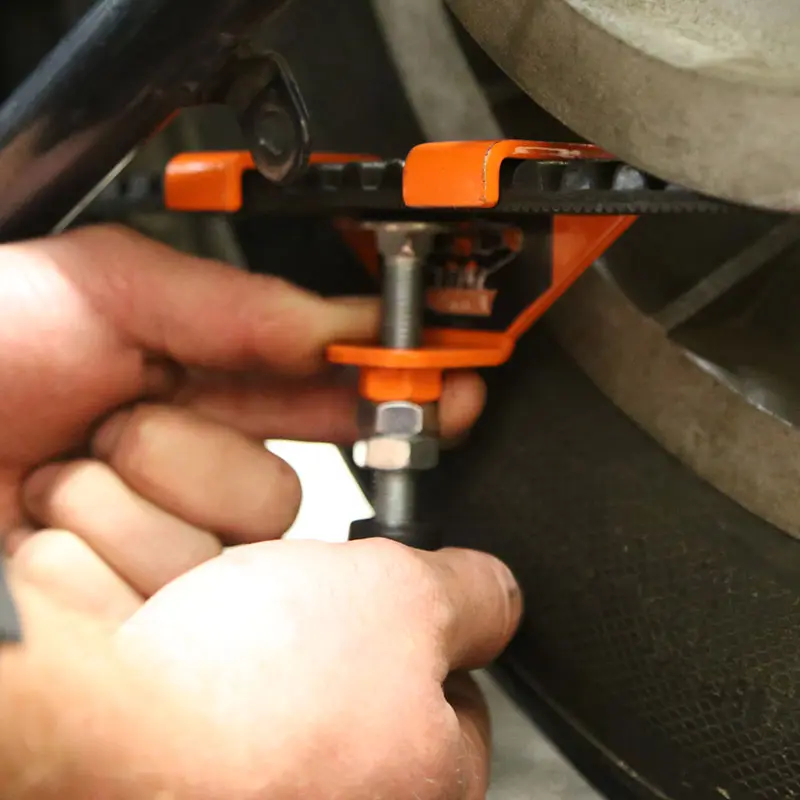

Step 3: Loosen the rear wheel nut and slightly slacken the belt. Engage the tool onto the belt and tighten until the lock nuts touch the orange base. Ensure the motorcycle is in neutral.
Step 4: Adjust the swingarm adjusters evenly until the belt is taut. Ensure the wheel is aligned and tighten the rear wheel nut.
Step 5: Remove the tool from the belt. The required tension is already set.
Package contents: 1 x motorcycle belt tensioning tool.



Specifications


Brand
TRU-TENSION


Supplier reference
M026


Colour/finish
Black, Orange


Material
Steel


Product name
Belt tool


Type
Tension


Units
Unit
