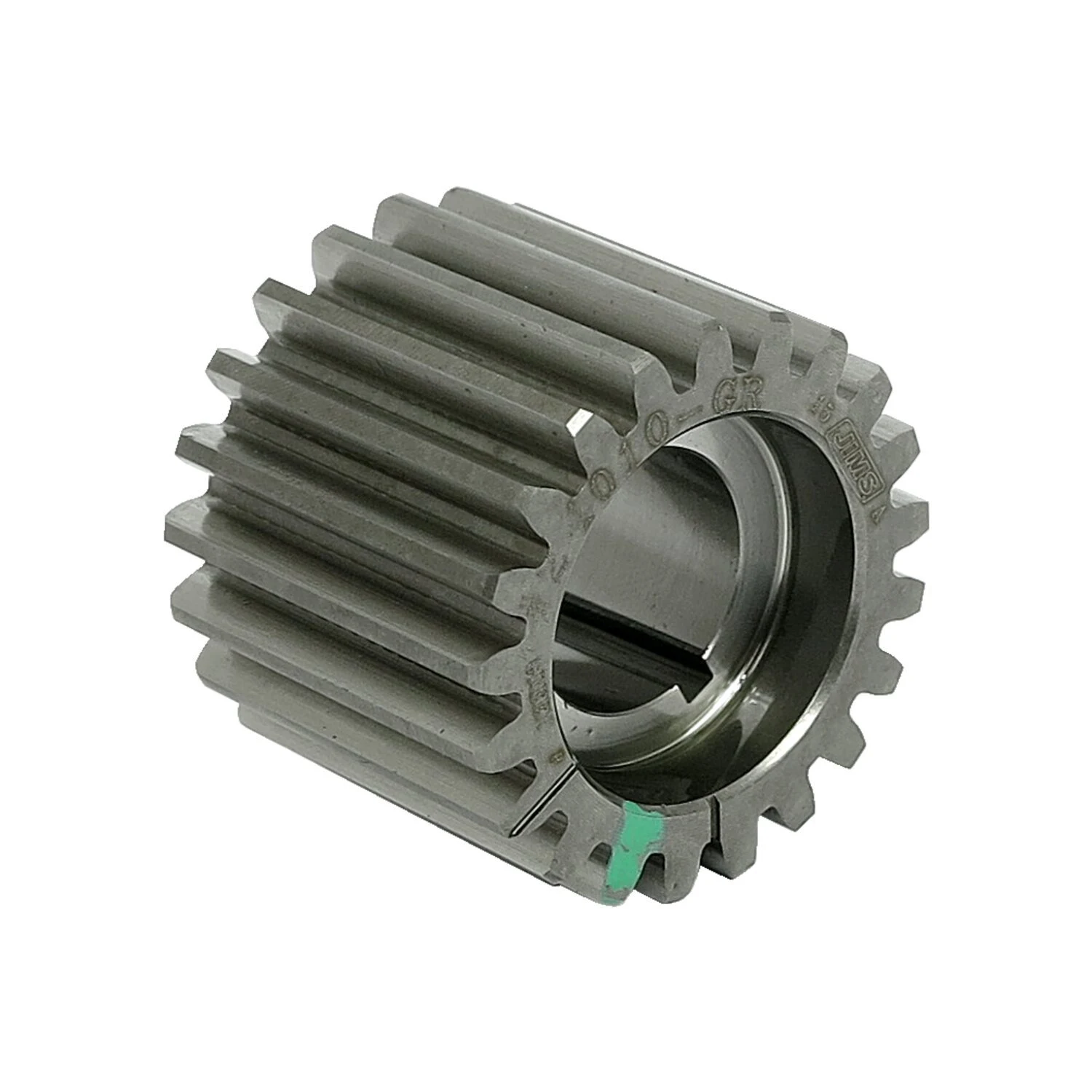

JIMS, sprocket 54-77. Green

Gear size over .105" pins: 1.4470-1.4465".
Cam gear over .105" pins: 2.7685-2.769".
Manufactured from the finest American aerospace quality tool steel. Precision machined to exacting tolerances with no compromises.
Note: Correct cam gear fitment is essential for quiet valve train operation. Too loose a fit will cause a clicking noise, sometimes confused with tappet noise. Too tight a fit will produce a buzzing sound and premature wear.
The sizes are as follows:
961300 Orange (larger).
961301 Red.
961302 Blue (medium).
961303 Green (average). Replaces 24010-54.
961304 White. Replaces 24010-54.
961305 Brown.
961306 Amarillo (smaller).


Specifications


Brand
Jims


Application
54-E77 Big Twin (NU) (average)


Colour
Green


Material
Steel


Packaging weight
0.131 kg


HS Code
84099100


Motorcycle family
BIG TWIN, FX, TOURING


Original name
JIMS, pinion gear 54-77. Green
