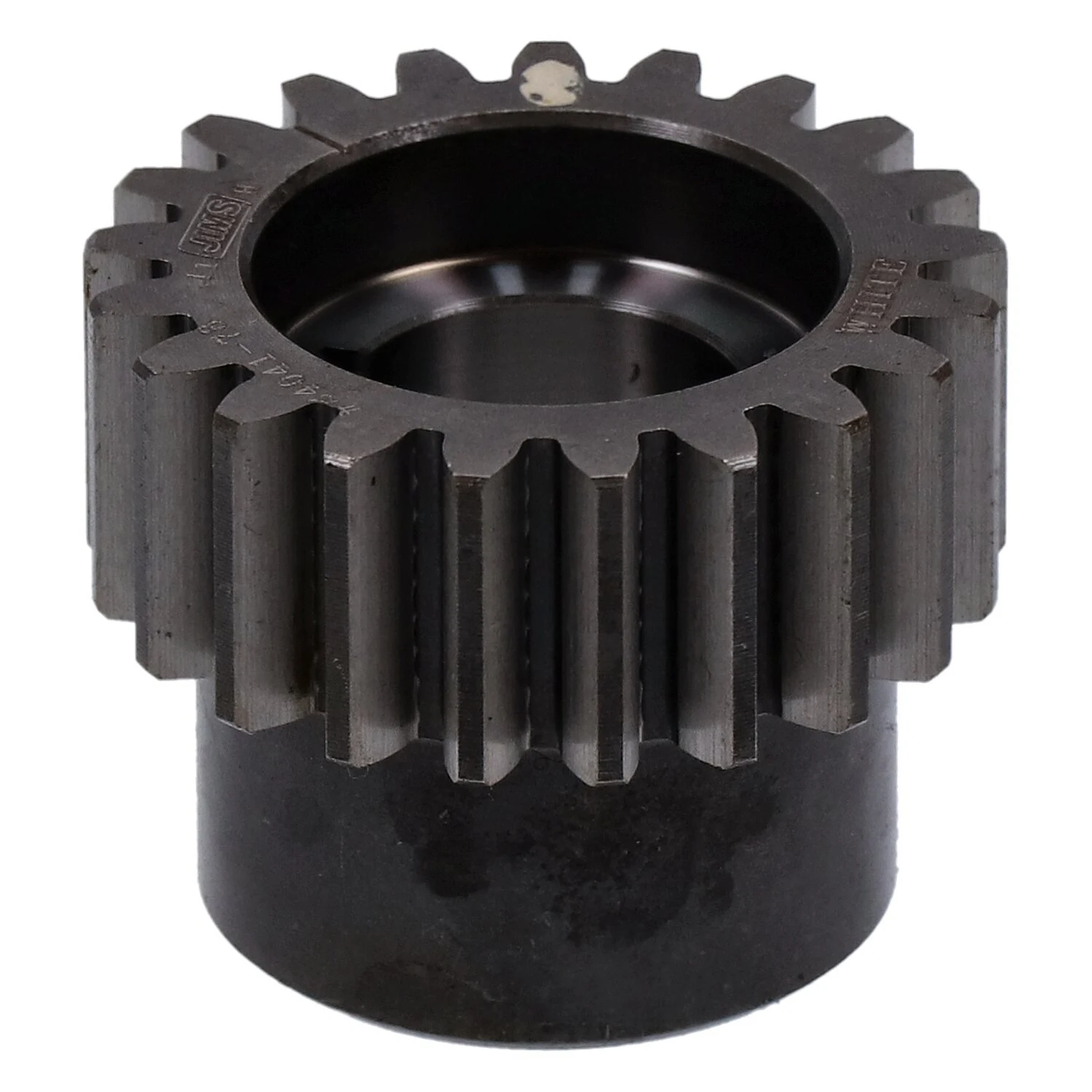

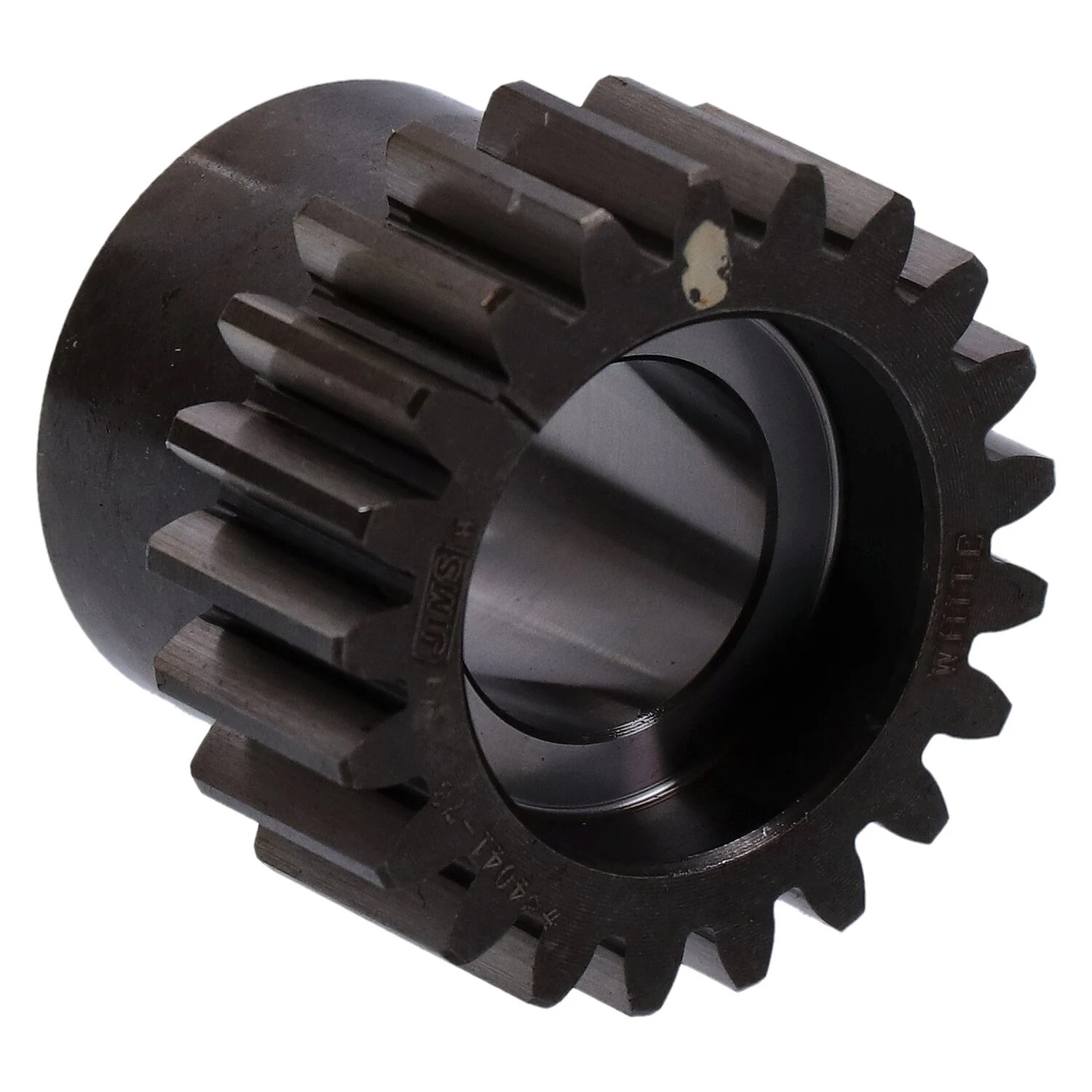

JIMS, L77-89 sprocket. Orange

Sprocket size for .105" bolts: 1.4751-1.4756".
Cam sprocket size for .105" bolts: 2.7324-2.7334".
Made from the finest American aerospace quality tool steel. Precision machined to exact tolerances without compromise.
Note: Correct cam sprocket adjustment is essential for quiet valve train operation. An adjustment that is too loose will cause a clicking noise, sometimes confused with lifter noise. An adjustment that is too tight will produce a whining sound and premature wear.
The sizes are as follows:
961307 Orange (larger). Replaces 24040-78.

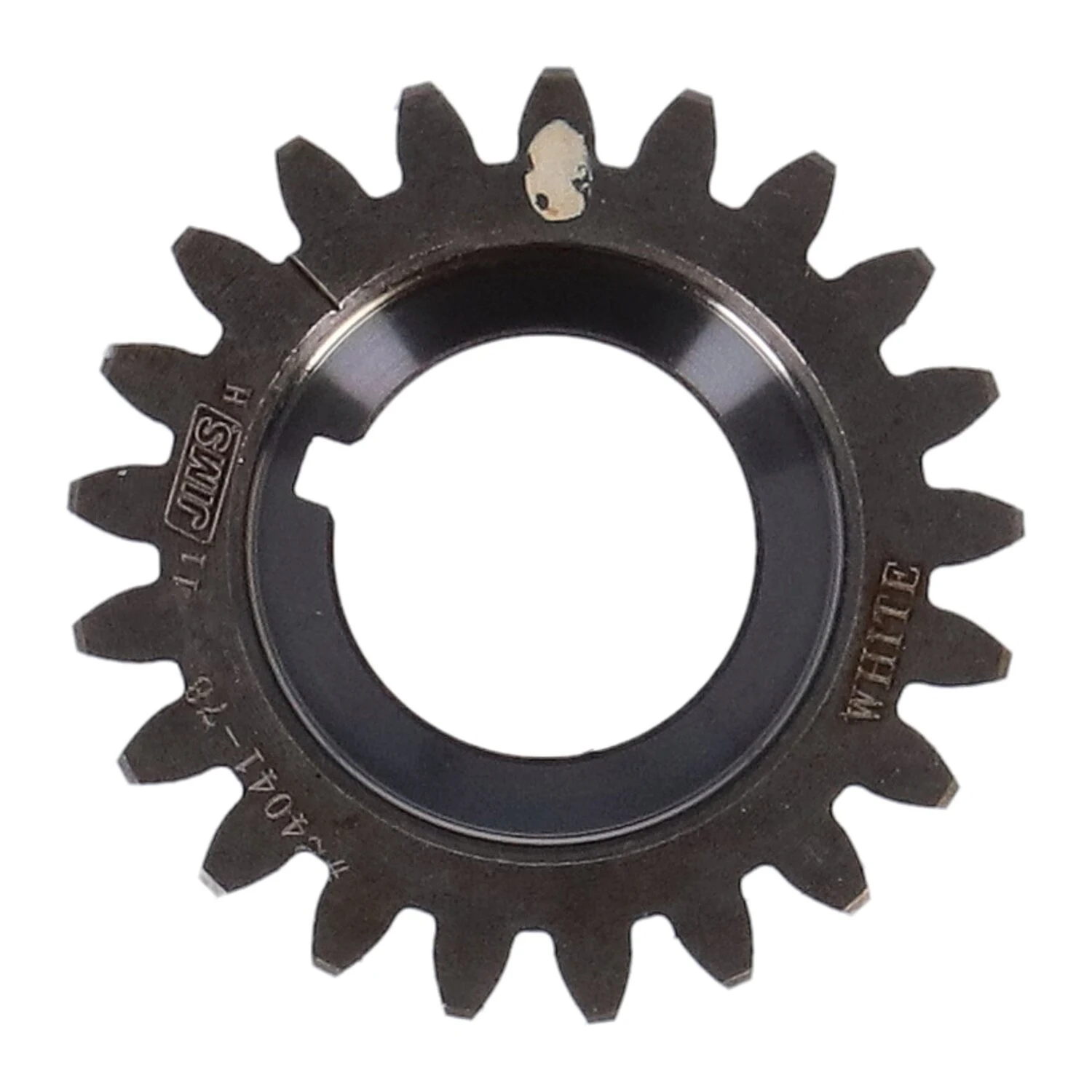

961308 Blanco. Replaces 24041-78.
961309 Yellow. Replaces 24042-78.
961310 Red (average). Replaces 24043-78.
961311 Blue (average). Replaces 24044-78.
961312 Green. Replaces 24045-78.
961313 Black (smaller). Replaces 24046-78.


Specifications


Brand
Jims


Application
L77-89 Big Twin (NU) (biggest)


Colour
Orange


Material
Steel


Packaging weight
0.1 kg


HS Code
84099100


Motorcycle family
BIG TWIN, FX, FXR, SOFTAIL, TOURING


Original name
JIMS, pinion gear L77-89. Orange
