Jims, pinion shaft kit

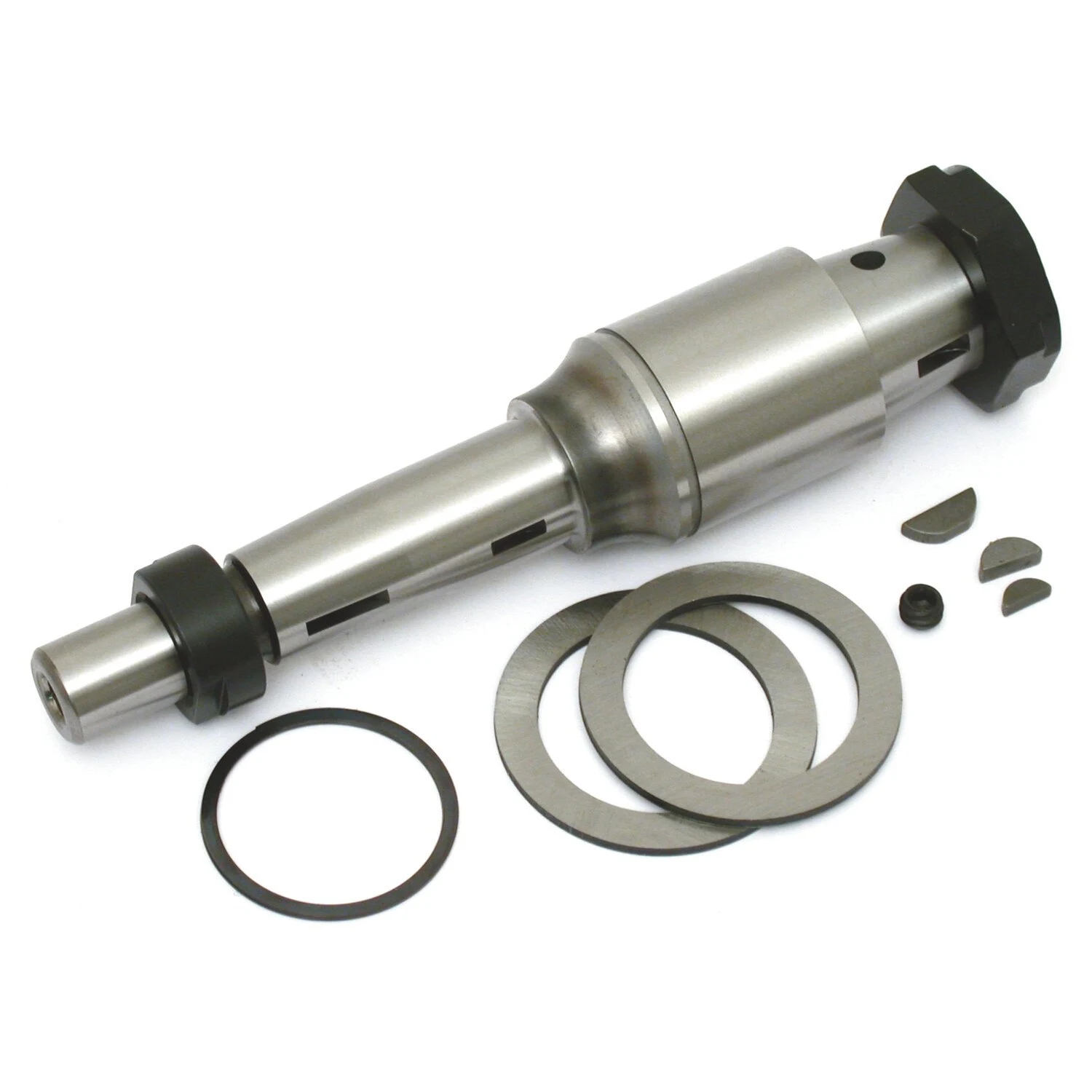

Final drive lubrication. Same as the JIMS 507281 sprocket shaft, but complete as a kit. This kit includes all the parts required for assembly. The parts shown here as 'spare parts' are included by JIMS in this kit. The parts are shown for reference only and are not necessarily JIMS branded.
Spare parts: 507281 24006-83 and 24006-80 sprocket shaft; 978262 JIMS 2196 oil feed screw; 978261 24016-80 nut, flywheel side; 517951 11218 Woodruff key, flywheel side; 517955 23985 Woodruff key, sprocket side; 508565 11007 retaining ring; 519006 24692-58 washer (2); 978263 24023-54 nut, sprocket side; 509030 26348-15 Woodruff key, oil pump drive gear; 531221 26348-15 S&S Woodruff key, oil pump drive gear.


Specifications


Brand
Jims


Application
L81-86 Big Twin (NU)


OEM
24006-83, 24006-80, 24016-80, 24692-58, 24023-54, 26348-15


Material
Steel


Packaging weight
0.561 kg


HS Code
87141090


Original name
Jims, pinion shaft kit
