KOSO, HD-05 speedometer / tachometer. Black bezel

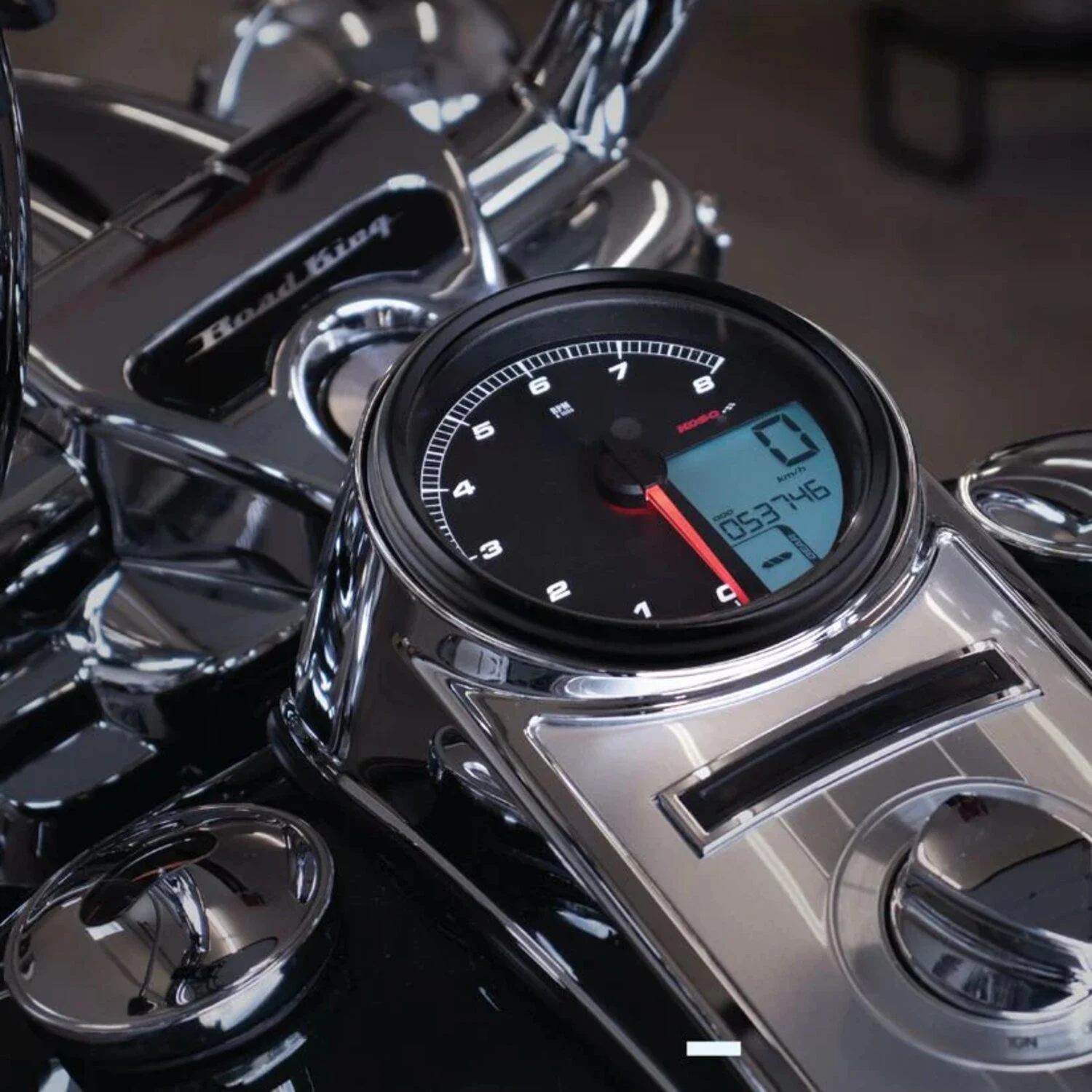

Black face, black bezel. For earlier models wired without CAN-bus. Replacement for the later version 4.5" (11.43 cm) diameter tank-mounted H-D speedometers. Plug & play connection to existing wiring. Offers speedometer (km/h/mph), tachometer, odometer, two trip meters, rev limit adjustment, shift light, multi-colour backlighting, gear indicator, engine temperature, battery voltage, fuel level gauge, average fuel consumption and more.

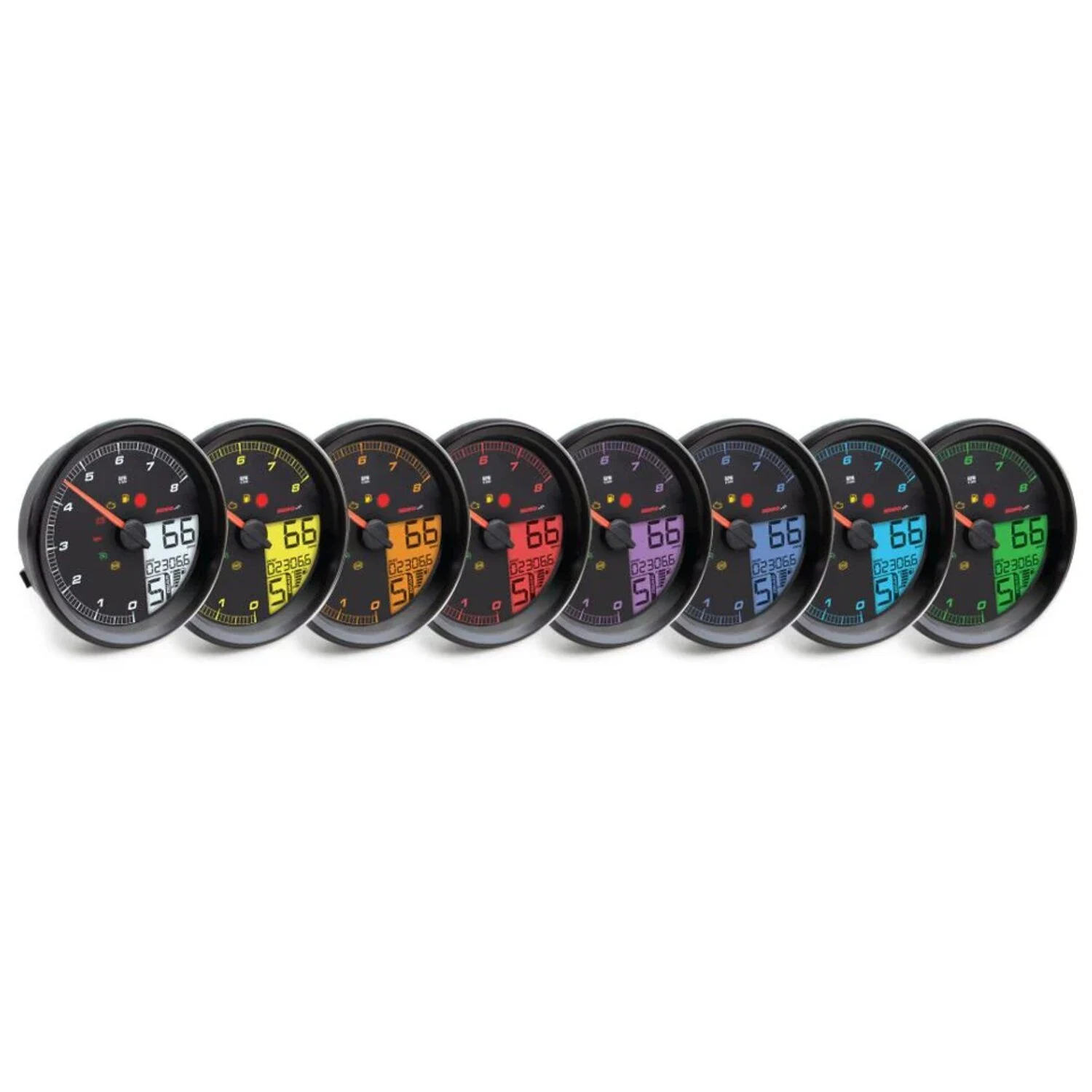

- 12 V DC - Multicolour backlighting: Red / Orange / Yellow / Green / Blue / Indigo / Purple / White - Backlight brightness: 5 levels - Speedometer: 0 to 360 km/h (0 to 225 mph) - Display delay: < 0.5 seconds - Odometer: 0 to 999,999 km (miles) - Trip meter A/B: 0 to 9,999.9 km (miles) with automatic reset after 9,999.9 km (miles) - Tyre circumference adjustment: 50 to 210%, in 1% increments - Gear indicator: Off / Neutral and 1st to 6th gear - Tachometer: 0 to 8,000 rpm - Rev limit light: 2,000 to 8,000 rpm. The warning light flashes when the set rpm is exceeded. Adjustable in 100 rpm increments - Adjustable maximum speed warning (steady or flashing light) - Engine temperature warning: 40 to 215 °C (40 to 419 °F) adjustable - Fuel gauge: 6 levels - Tank capacity: Off / 1 to 9.9 gallons (approx. 3.8 to 37 litres) - Average consumption: Off / litres per 100 km / miles per gallon (US standard) / miles per gallon (UK standard) - Clock: 12h / 24h - Voltmeter: 8-18 V DC - Maintenance intervals: Off / 500 to 16,000 km (300 to 10,000 miles). Adjustable in 100 km (miles) increments - Fuel reserve: 0 to 9,999 km (miles). When the range is less than 10 miles (16 km), the 'LO RNG' warning will appear on the display - Indicator lights: RPM warning, fuel reserve, engine check, low voltage, anti-theft device, cruise control - Operating temperature: 14 to 140 °F (10 to 60 °C) - Required DC voltage: 12 V - JIS D 0203 S2 certified - Dimensions: (D x H) Ø 45/8 x 13/4" (Ø 117 x 45 mm) - Weight: 208.5 grams (7.36 oz.)


Specifications


Brand
Koso


Application
04-10 Softail; 04-13 FLHR; 04-11 FXDWG, FXDC, FXDF (NU)


Packaging weight
0.321 kg


HS Code
90292031


Motorcycle family
DYNA, SOFTAIL, TOURING


Original name
KOSO, HD-05 speedometer / rev counter. Black bezel
