KOSO, 4-piece HD-06 instrument kit. Blue display

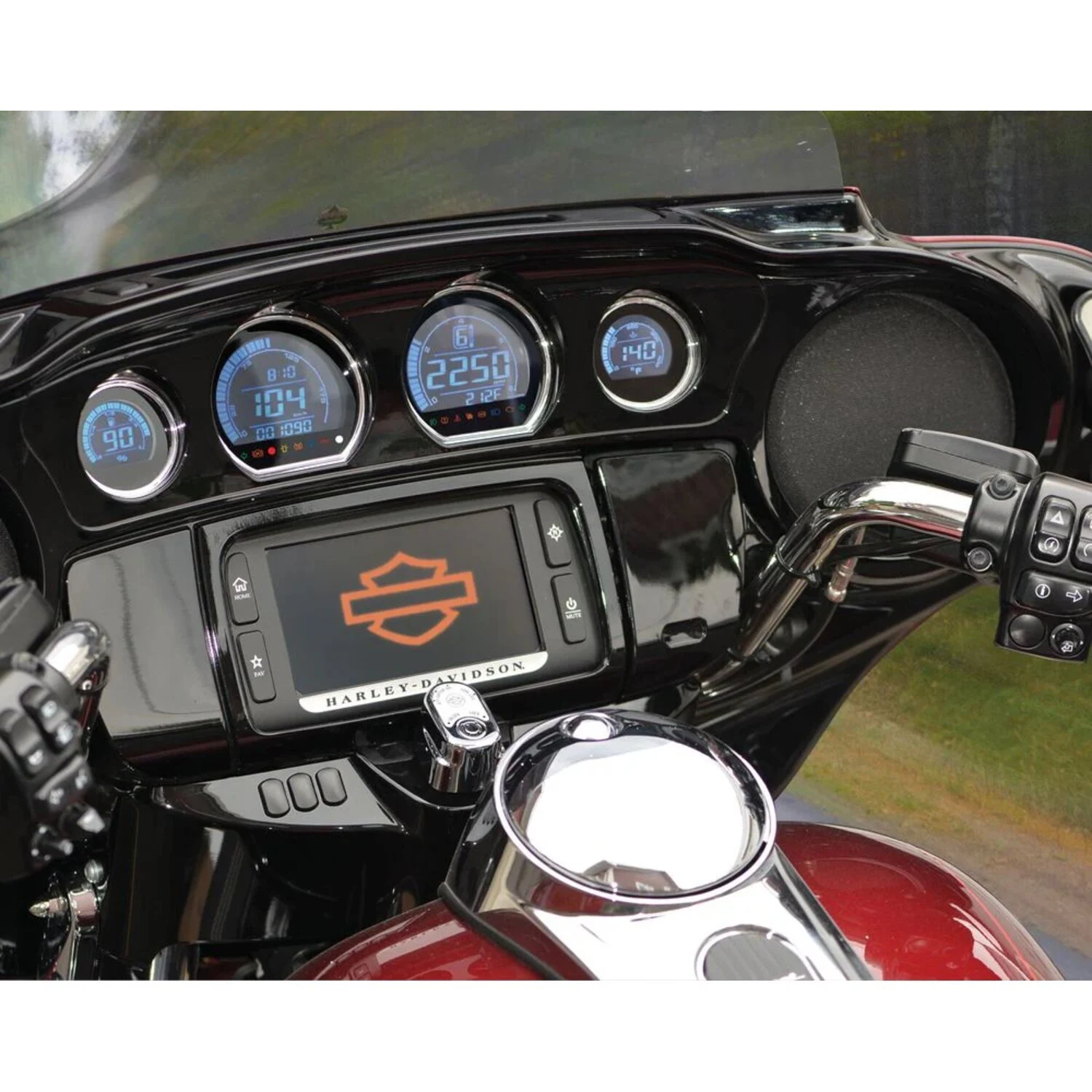

ABE approved. Plug & play replacement for the stock instruments. Connect the OEM connectors to the instruments and install them in the fairing. Done! Offers a single display colour option (Blue) and 5 intensity levels for the digits and graphics on each individual instrument. Once the ignition is switched off, all instruments go completely black for a great custom look. This kit includes a 4" speedometer, a 4" tachometer with gear indicator, a 2" oil temperature gauge and a 2" fuel gauge.
- Screen colour: Blue - 12V DC - Speedometer: 0 to 299 km/h (0 to 199 mph) - Screen refresh rate: <0.5 seconds - Speed warning setting: 30 to 299 km/h (19 to 199 MPH). Warning light illuminates when the set value is reached - Max speed record: 0 to 299 km/h (mph) - Odometer display range: 0 to 999,999 km (miles), displayed in 0.1 km (mile) increments - Trip A/B: 0 to 9,999.9 km (miles) - Wheel circumference: Adjustment range: 50 - 210%. Adjusted in 1% increments - Oil change/maintenance interval: Off - 300 - 10,000 miles or 500 - 16,000 km adjustable. Adjustable in 1 mile/km increments. Countdown as miles/km increase. From 0 km/miles, the warning light flashes and the device counts down to the maximum minus 999 km/miles. Manual reset - Gear indicator: Off, N, P, R, 1, 2, 3, 4, 5, 6 - Tachometer: 0 to 9,990 rpm. Displayed in 10 rpm increments - Shift light: 2,000~8,000 rpm, adjustable in 100 rpm increments. Light illuminates when the set RPM is reached - Engine temperature: -40 to 300 °C / -40 to 572 °F - Fuel gauge setting: Standard HD / customer custom - Fuel warning setting 1-Standard HD: LCD flashes when > 211 ℧, LCD off when < 187 ℧ - Fuel warning setting 2-HD Custom: LCD flashes when < 20%, LCD off when > 30% - Fuel tank capacity: OFF / 1 ~ 9.9 US gallons - Average fuel consumption: OFF / MPG (US spec) / MPG (UK spec) L/100 km / km/L - Fuel 'remaining range': LCD displays 'LO RNG' and flashes as a warning when the remaining range is less than 16 km (10 miles) - Clock: 12h / 24h - Oil temperature indicator: 0 to 400°F (32 to 248°C), displayed in 1°F (1°C) increments - Max oil temperature record (storage): 0 to 400°F (32 to 248°C) - Air pressure indicator: Display: Shows --- if no sensor installed, 0 – 150 PSI. Displayed in: 1 PSI increments - Air pressure indicator calibration: Calibration range: 0 – 25 PSI +/- 1 PSI. Calibration unit: 1 PSI. Default value: 0 PSI - Voltmeter range: DC 8 to 18V - Digit brightness: 5 levels - Digit/graphic colour: 1 colour: Red - Operating temperature: -10°C to 60°C - Standard JIS D 0203 (S2) specified - Speedometer & tachometer weight: 286 grams - Oil temp. weight: 81 grams - Fuel indicator weight: 81 grams - Indicator lights: Right + left turn (green), Photometric detection, Oil (red), Check engine light (yellow), Cruise control (orange/green), Anti-theft device (red), Water temperature (blue), Warning light (orange/green), High beam (blue), Fog light (green), ABS (yellow)


Specifications


Brand
Koso


Application
14-20 Touring (excl. CVO & Road King) (NU)


Packaging weight
0.868 kg


HS Code
90292031


Original name
KOSO, HD-06 4-piece gauge kit. Blue display
