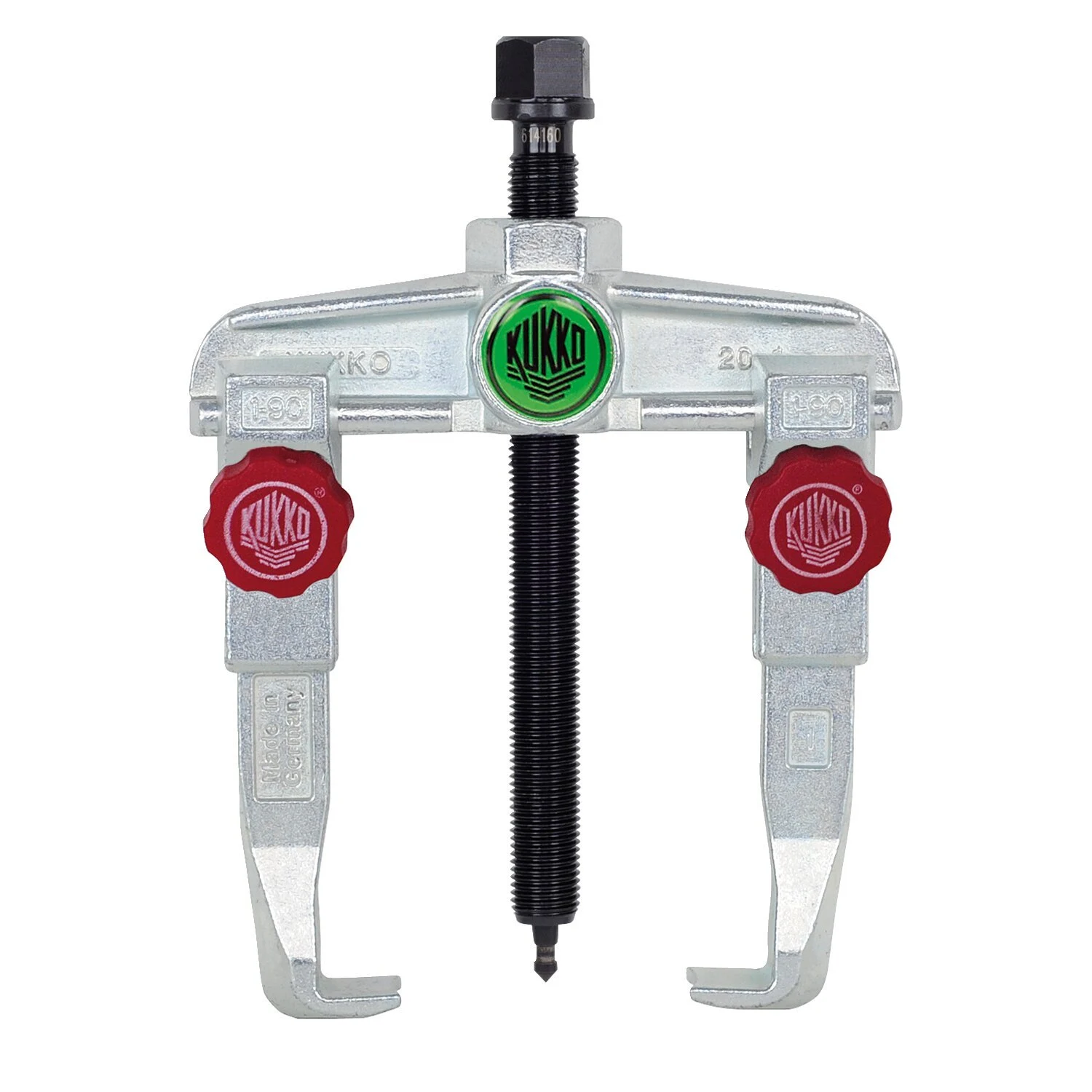

Kukko, gear puller with 2 arms, quick-adjust. Standard

Regular-size puller arms. The gear pullers with 'quick-adjust arms' allow the jaws to slide along the crossbar to the required diameter, between 70 and 140 mm, for direct traction. Optional 150 mm jaw extensions are available for extra reach when needed. The jaws can be inverted, allowing both internal and external traction.
- Number of jaws: 2 - Construction series: 20 - Appearance of the extractor arms: Design 1 - Spread (in mm): 30-90 - Depth (in mm): 100 - Internal spread used (in mm): 70-140 - Hexagonal drive (male) (in mm): 17 - Maximum load: 4500 kg - Maximum torque: 80 Nm - Weight: 1.305 kg - Bottom space (in mm): 10 - Lateral space (in mm): 31 Technologies used:
- Switch: A double-sided spindle tip provides optimal spindle-to-axle fit.
- Glide & Fix: An improved geometry guarantees fast and easy movement of the jaws over the crossbar.
- Armlock: Crossed claws guarantee maximum stability for clamping the jaws on the slider.
- Quick Adjust: The serrations allow quick release and repositioning of the jaws on the cross bar without tools.
Note: The optional/replacement quick-adjust arms are available separately as 'regular', 'narrow' and 'extremely narrow' for direct replacement or to fine-tune the puller to the specific task.
Note: Optional jaw extensions are available to extend the reach of the quick-change jaws. The extensions are interconnectable. Each jaw extension added provides an additional 150 mm of reach.


Specifications


Brand
Kukko


Material
Steel


Packaging weight
1.27 kg


HS Code
87141090


Original name
Kukko, gear puller with 2 quick adjusting arms. Standard
