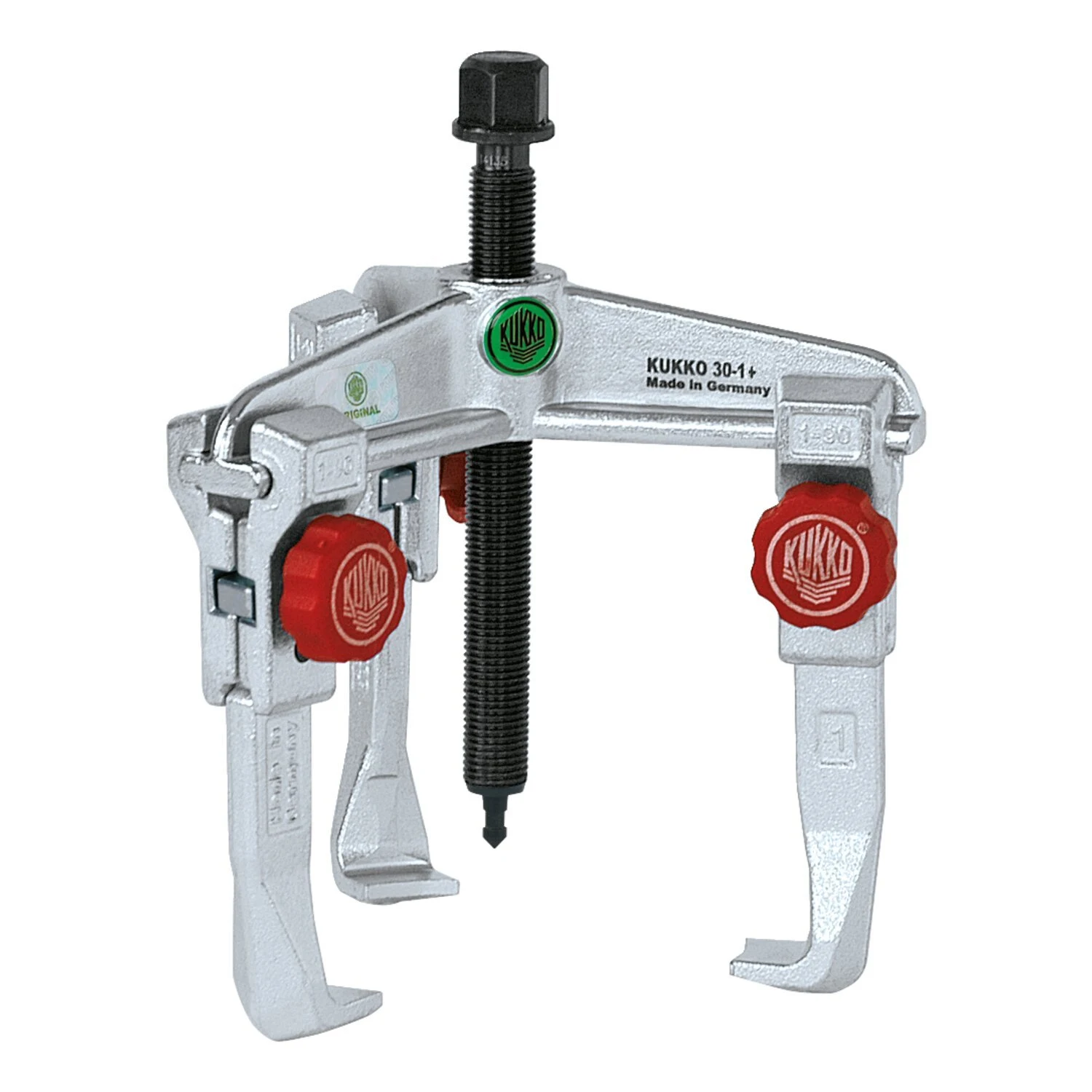

Kukko, 3-arm quick-adjust gear puller. Regular

With regular-size extractor arms. The gear puller with 'quick-adjust arms' allows the jaws to slide along the crossbar to the required diameter, between 70 and 140 mm, for direct traction. The 150 mm 'jaw extensions' are available as an option to increase the jaw reach when needed. The jaws can be reversed, allowing both internal and external traction actions.
- Number of jaws: 3 - Construction series: 30 - Appearance of extractor arms: Drawing 1 - Opening (in mm): 27-90 - Depth (in mm): 100 - Internal opening used (in mm): 70-140 - Hexagonal drive (male) (in mm): 17 - Maximum load: 6000 kg - Maximum torque: 80 Nm - Weight: 1.53 kg - Bottom space (in mm): 10 - Side space (in mm): 31 Technologies used:
- Switch: The double-sided spindle tip provides optimal spindle-to-axle fit.
- Glide & Fix: The improved geometry guarantees fast and easy movement of the jaws over the crossbar.
- Armlock: The crossed jaws guarantee maximum stability for clamping the jaws on the slider.
- Quick Adjust: The serrations allow quick release and repositioning of the jaws on the cross bar without tools.
Note: The optional/replacement quick-adjust arms are available separately as 'regular', 'narrow' and 'extremely narrow' for direct replacement or to fine-tune the puller to the specific task.
Note: Optional jaw extensions are available to extend the reach of the quick-change jaws. The extensions are interconnectable. Each jaw extension added provides an additional 150 mm of reach.


Specifications


Brand
Kukko


Material
Steel


Packaging weight
1.46 kg


HS Code
87141090


Original name
Kukko, gear puller with 3 quick-adjust arms. Standard
