Axeo Performance 49mm fork cartridge set. +2" raised

Additional parts required for various models, see notes.

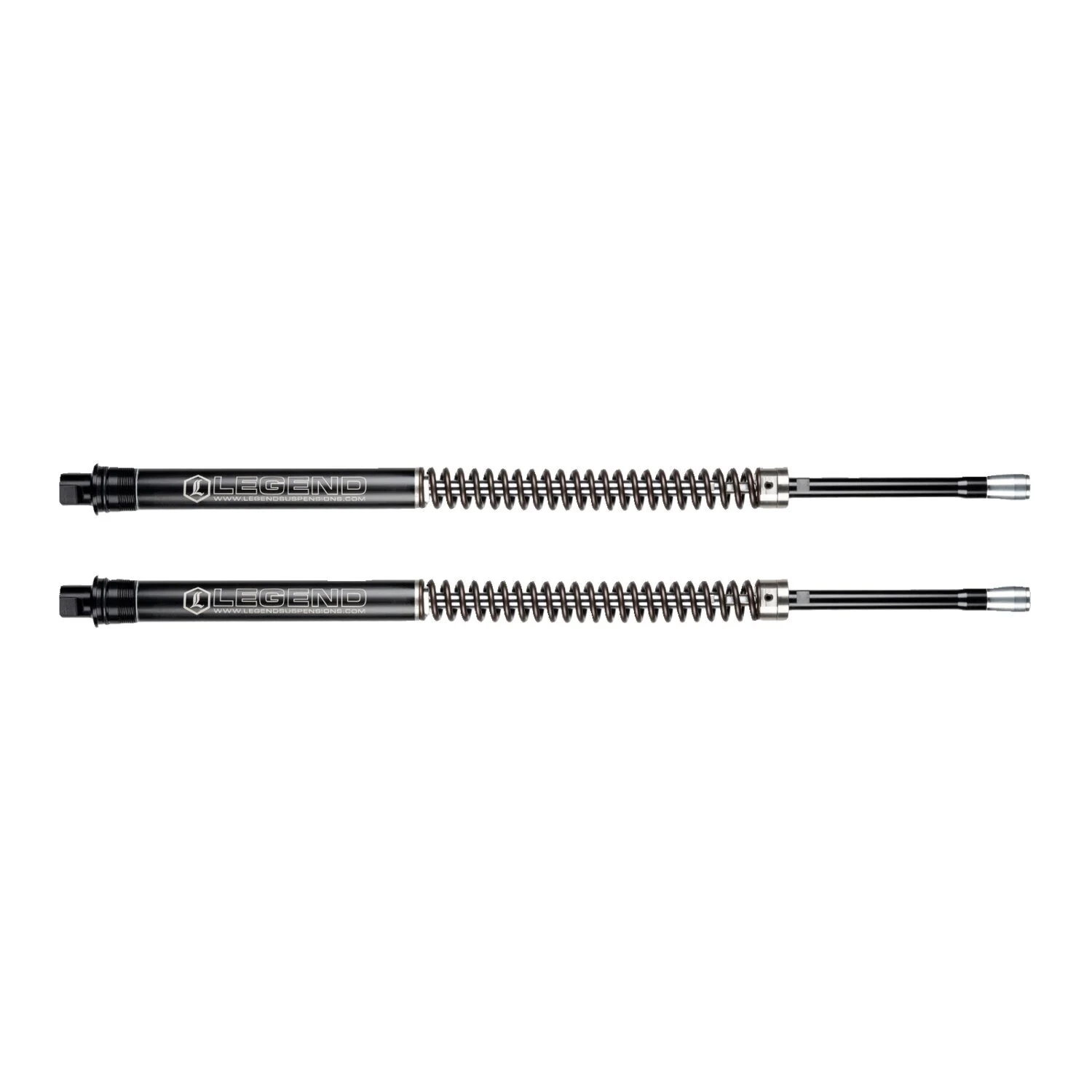

The high-performance spring rate offers agile handling for aggressive riders without sacrificing comfort. Specifically designed to increase ride height on FL touring models. Improves cornering clearance, lean angles and eliminates scraping of footpegs and floorboards. Improves straight-line stability, high-speed cornering handling and manoeuvrability. Increases resistance to bottoming out on large bumps or potholes. The threaded preload adjuster allows tuning for various rider weights and an increased preload range. Reduces front-end dive and improves front tyre grip under aggressive braking. Designed for optimum performance with Legend's 14″ Revo-Arc rear shocks. Includes two 2″ dual-chamber monotube damper cartridges and two extension springs. Designed for use with stock diameter front wheels.
Note: 14-26 models (excl. all CVO 23-up with inverted forks) require the use of extended OEM 45500123 fork inner tubes (24.31″ long), Custom Cycle Engineering (923715 hard chrome) or Arlen Ness 2" extended 993521 (gold nitrided) / 993506 (black) 24.25″ fork tubes.
Note: 97-13 models require the use of H-D OEM fork upper tubes 83804-09 (22.55″ long).
Note: 97-01 models equipped with stock air forks will require the additional purchase of H-D OEM 45419-80 (Colony 989703 fork tube cap nut set) (2) and 45733-48 (James 909040 O-rings) (2) for installation.
Note: Due to the nature of the design, this front end kit will raise the overall riding height of the motorcycle.
Note: This product is not designed for use with 21″ or 23″ front wheels.
Note: Does not fit 23-up CVO models with inverted forks.


Specifications


Brand
Legend Air Suspension


Application
17-26 FLT/Touring (excl. 23-26 CVO Touring with inverted forks). Additional parts required


OEM
83804-09, 45419-80, 45733-48


Packaging weight
5.444 kg


HS Code
87141090


Motorcycle family
TOURING


Original name
Legend, 49mm Axeo Performance fork cartridge set. +2" raised
