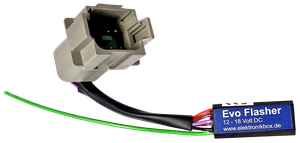

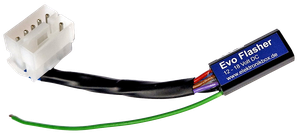

EVO FLASHER INDICATOR MODULES

This module replaces the old Harley indicator modules and, thanks to modern electronics, is significantly smaller and more robust than its predecessor. It incorporates an automatic cancellation function. When the indicator button is pressed briefly for less than 0.5 seconds, the corresponding light flashes 4 times and then goes out. This function can be used for overtaking. If the button is pressed for more than 0.5 seconds, the light flashes 40 times. This is useful when turning. The automatic cancellation function is deactivated by connecting the green wire to earth. It is active when the green wire is not in use. It also integrates a hazard light function. This is activated by pressing the left and right indicators simultaneously and deactivated by pressing either button. The flash rate is independent of the connected load, so LED indicators or halogen bulbs can be used.


Specifications


OEM
68570-94B


Pack
1


HS Code
8714109090


Origin
DE


Motorcycle family
Sportster | Touring
