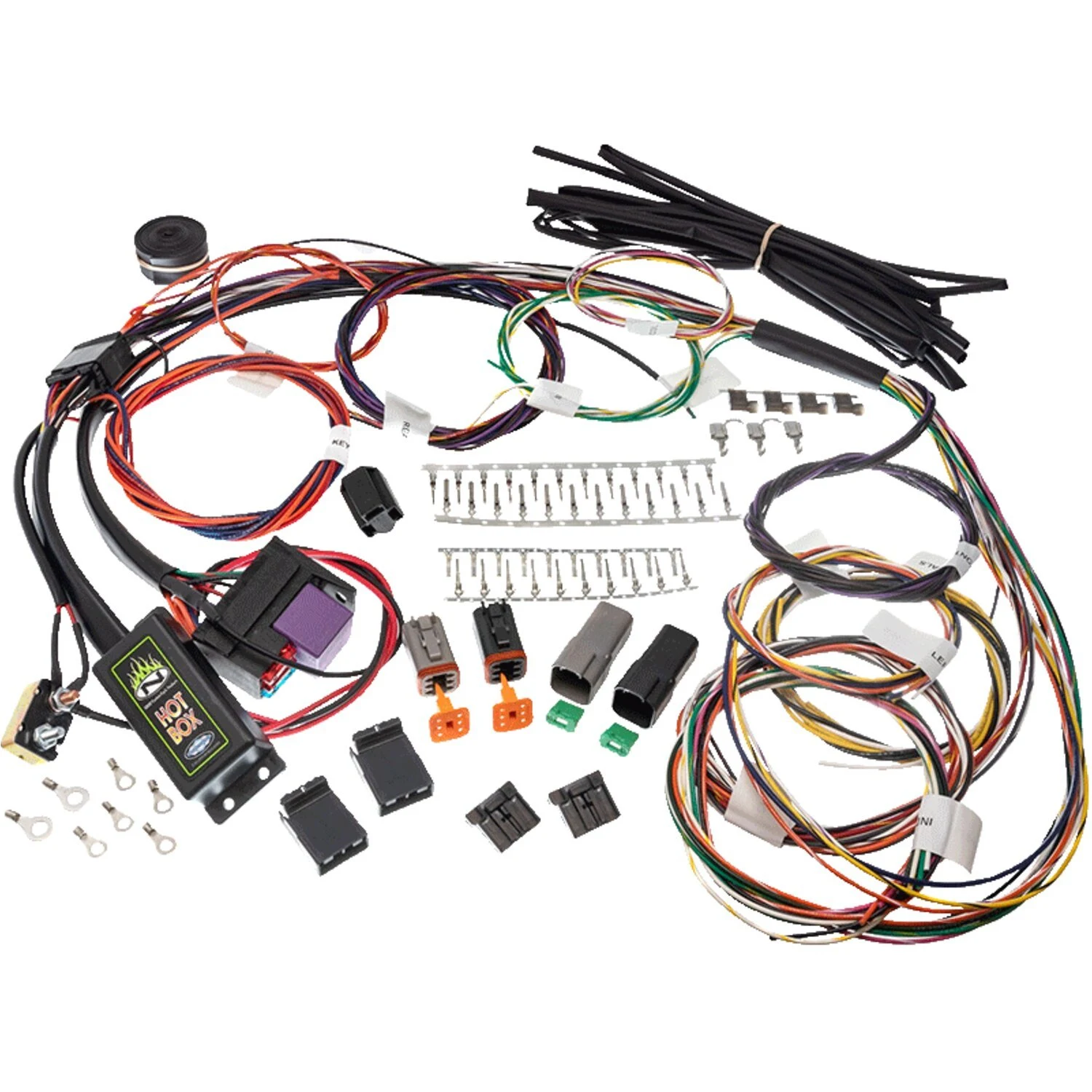

NAMZ, complete main wiring harness for custom motorcycle

Used as a universal H-D style base for re-wiring most H-D OEM models with carburettor, or for setting up a custom project. Compatible with any standalone ignition system, Evo or Twin Cam. Designed to work with a two-position key switch. A three-position key-operated ignition switch (car type) can be used with a simple wiring modification. Wiring can be challenging for a non-specialist, so professional installation is recommended.
Includes the following:
- Separate wiring allowing the use of white running/amber LED turn signal functions in the front turn signals - Running, brake and turn signal functions for the rear turn signals - OEM colour-matched wiring with 22-second auto-cancelling turn signal module - Fuse block housing a full-size, commonly available and replaceable start relay and (3) ATO fuses - A 30 Amp circuit breaker installed and ready for any regulator/charging system - Oil, neutral, high beam and turn signal indicator wiring - Handlebar switch wiring with colour matching, as on 1996-2013 non-Touring models - Headlight wiring with socket and terminals - Connectors and terminals for the front turn signals - Rear mudguard harness with connectors and terminals - Ignition switch wiring with ring terminals - Coil lead with ring terminals, tachometer wiring, horn, oil sender, brake switch and neutral switch wiring with terminals - 3/16", 1/4", 3/8" and 1/2" ID heat-shrink sections included - Heavy-gauge power (+) and earth (-) leads with terminals for battery connection - Installation instructions included / available as a PDF online.


Specifications


Brand
Namz


Application
Universal H-D with carburetor


Packaging weight
1.315 kg


HS Code
85443000


Original name
NAMZ, complete custom bike main wiring harness
