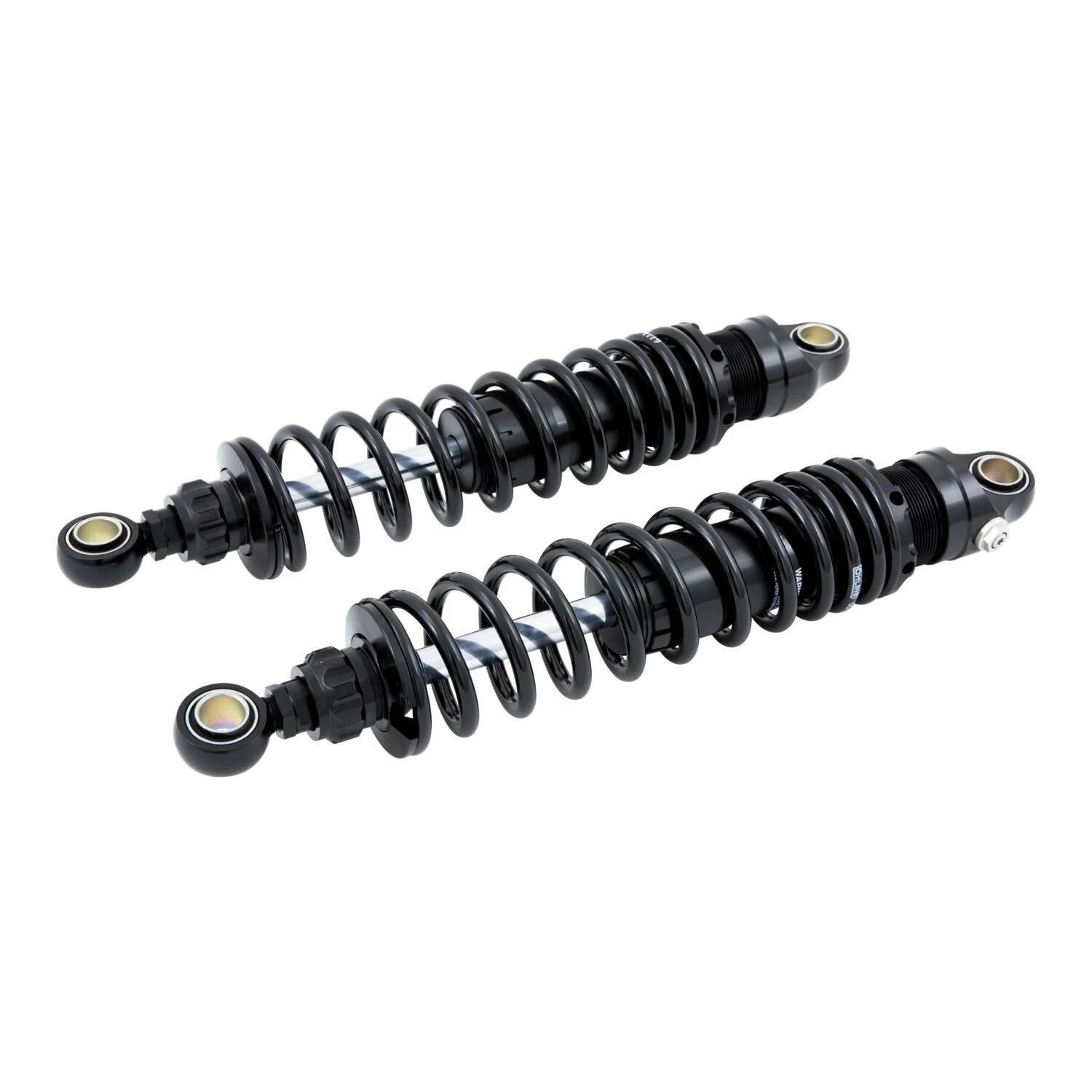

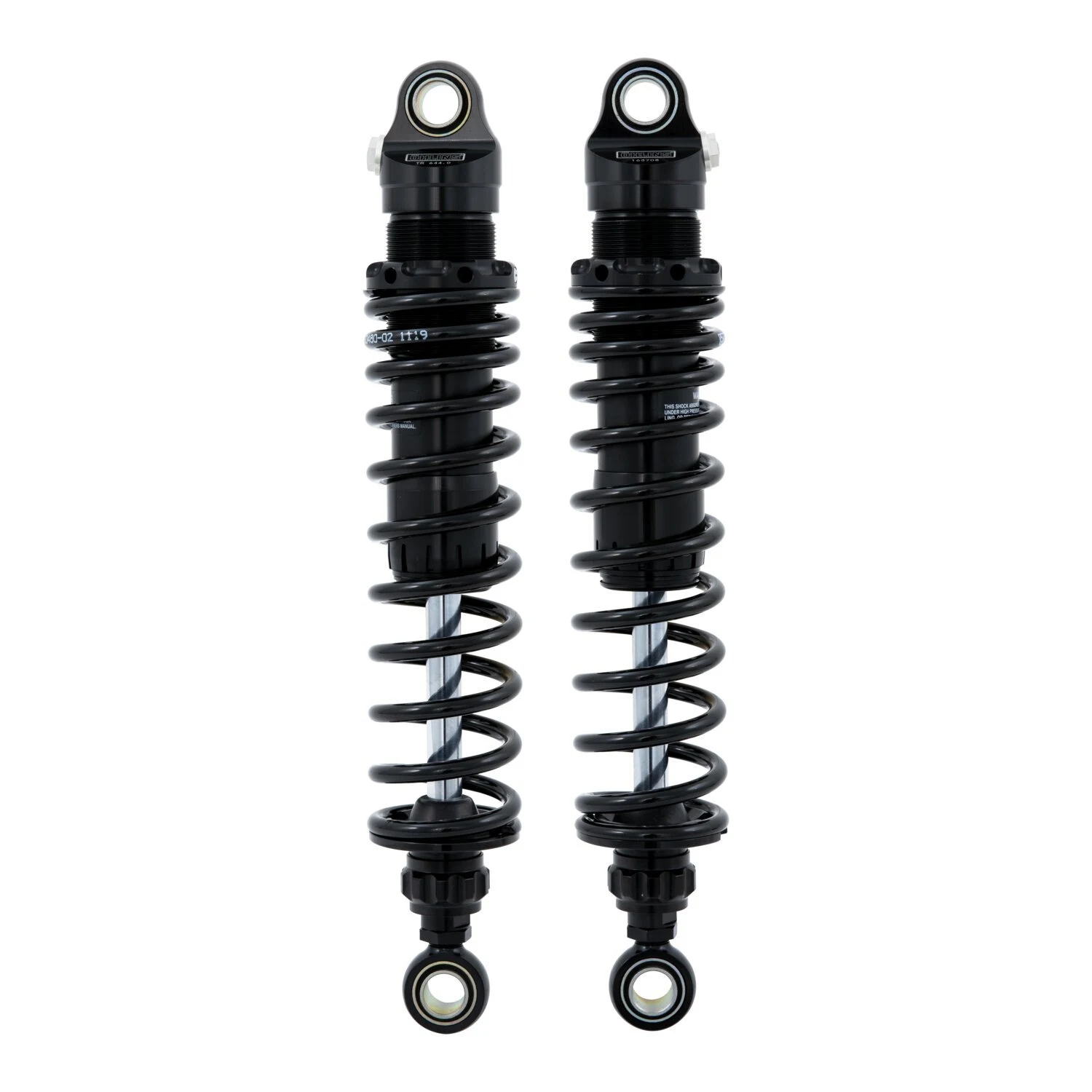

Öhlins, STX36 Blackline rear shock absorber kit. 305mm

- Black springs - Black body - S: Single tube body - Piston diameter: 36 mm - D: High-pressure gas mono-tube shock absorber with internal reservoir in the main body - R1: Adjustable extension damping. Adjustment wheel on the upper eye - L: Adjustable length - Length: 305 +10/-0 mm - Stroke: 66 mm - Spring rate: 33 N/mm - Position: rear - Fitted spring: 00281-73 - Packing unit: pair - ABE approved


Specifications


Brand
Öhlins


Application
07-17 Dyna Fat Bob FXDF (FD2); 93-99 Dyna Glide Conv. FXDS-CON (FXD); 16-17 Dyna Low Rider 103 FXDL (FD2); 99-03 Dyna Low Rider FXDL (FD1); 06-10 Dyna Low Rider FXDL (FD2); 15-16 Dyna Low Rider FXDL (FD2) (No ABE); 93-99 Dyna Low Rider FXDL (FXD), short version; 03-04 Dyna Low Rider FXDLI (FD1); 05-07 Dyna Low Rider FXDLI (FD2); 16-17 Dyna Low Rider S FXDLS (FD2); 2017 Dyna Street Bob 103 FXDB (FD2); 06-16 Dyna Street Bob FXDB (FD2); 07-15 Dyna Super Glide Custom FXDC (FD2); 05-06 Dyna Super Glide Custom FXDCI (FD2); 00-05 Dyna Super Glide FXD (FD1), short version; 91-94 Dyna Super Glide FXD (FXD); 95-99 Dyna Super Glide FXD (FXD), short version; 12-17 Dyna Switchback FLD; 09-17 Dyna Wide Glide FXDWG (FD2)


Sales unit
Par


Colour
Black


Finish
Gloss


Position
['Trasera']


Packaging weight
3.45 kg


HS Code
87141090


Original name
Öhlins, STX36 Blackline rear shock absorber set. 305mm
