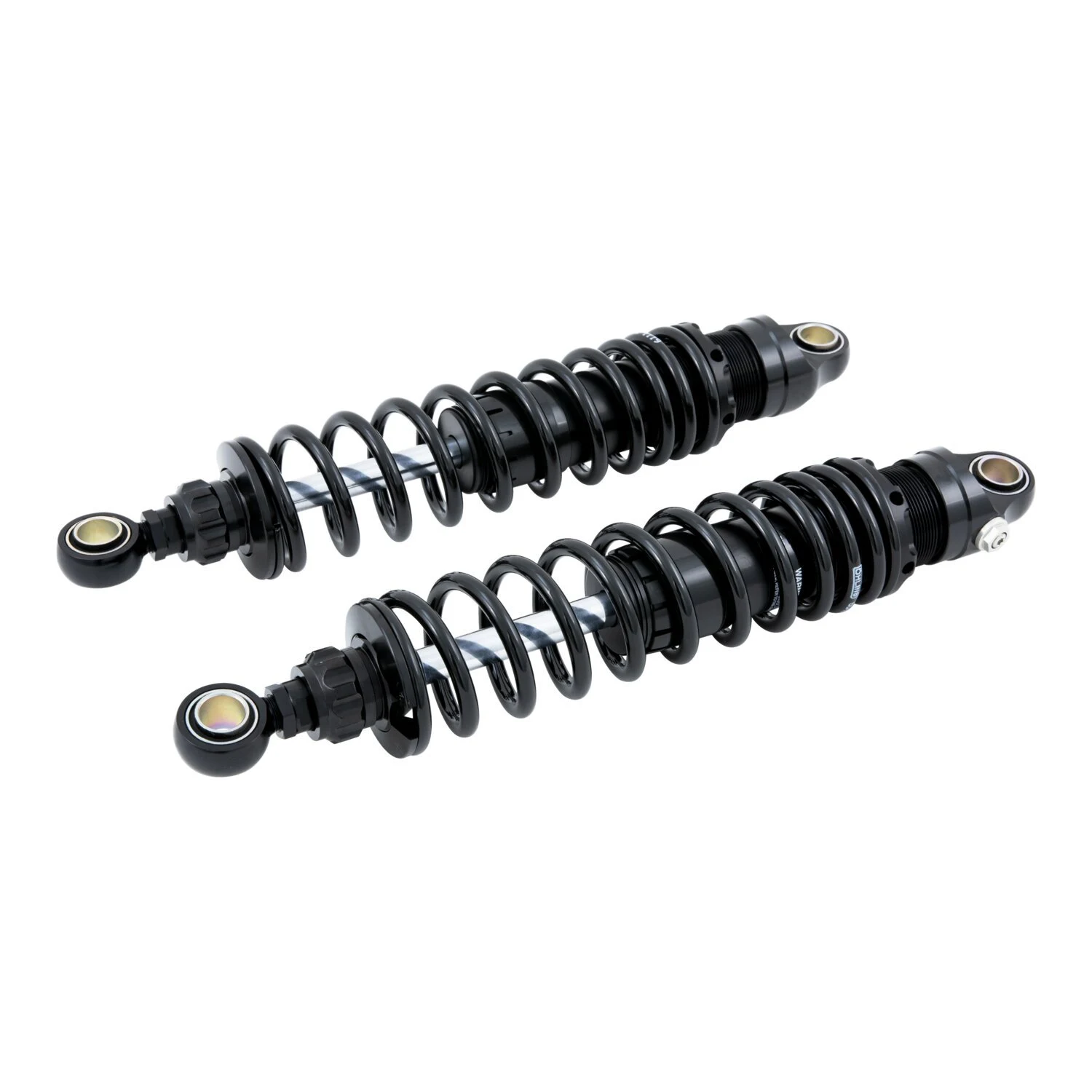

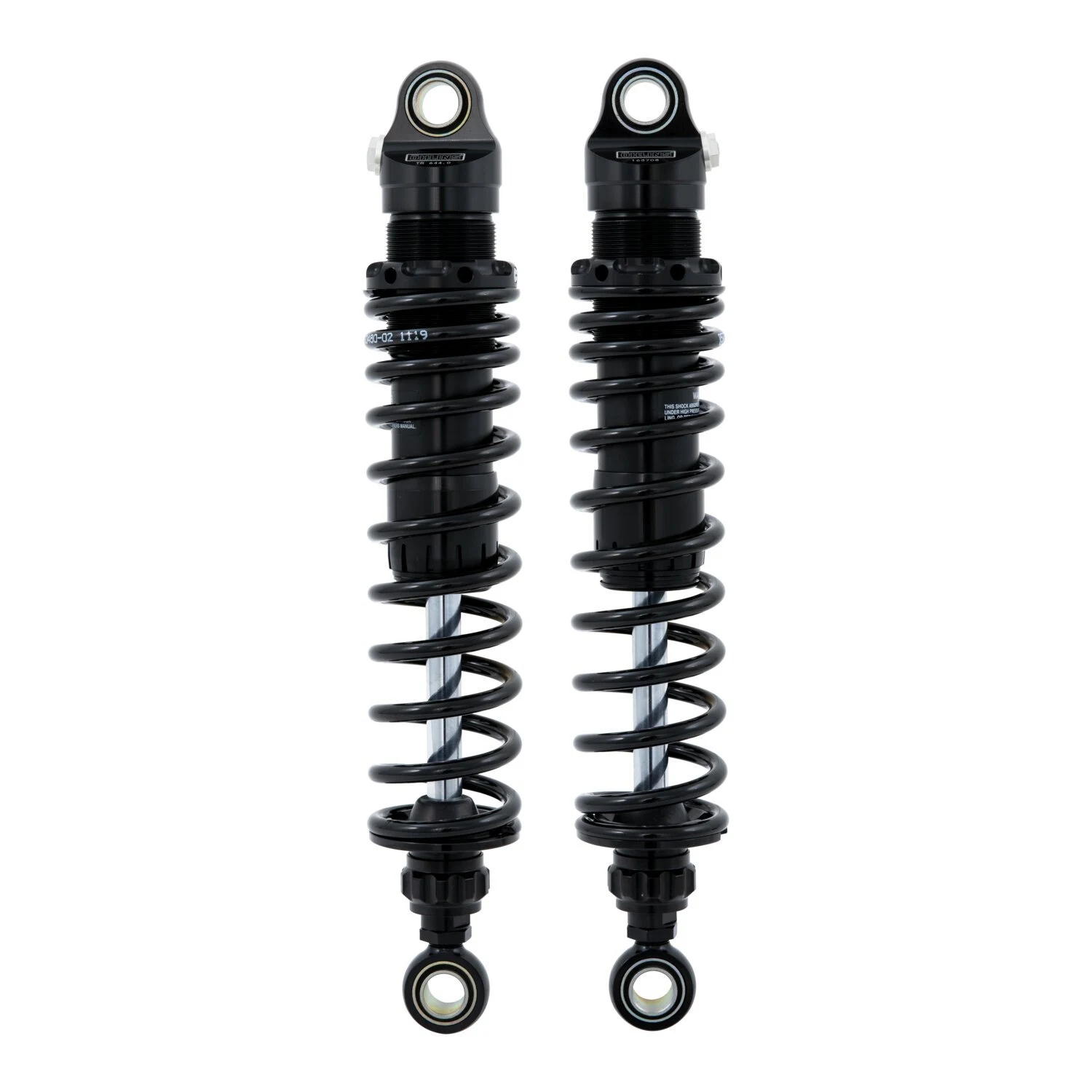

Öhlins, STX36 Blackline rear shock set. 336mm

- Black springs - Black body - S: Single tube body - Piston diameter: 36 mm - D: High-pressure gas mono-tube shock absorber with internal reservoir in the main body - R1: Adjustable extension damping. Adjustment wheel on the upper eye - L: Adjustable length - Length: 336 +10/-0 mm - Stroke: 75 mm - Spring rate N/mm: progressive 16-26 N/mm - Position: rear - Fitted spring: 00480-02 - Packing unit: pair - ABE approved.
The STX36 is a proven, reliable shock absorber that has demonstrated its worth in performance and durability. Especially for the cruiser motorcycle market, when looking to improve performance, the STX36 is an excellent investment when suspension characteristics matter to you.


Specifications


Brand
Öhlins


Application
16-18 XL1200CX Roadster (XL2); 16-18 XL1200 Iron (XL2); 07-12 XL1200N Nightster (XL2) long version; 04-09 XL1200R Roadster (XL2); 00-03 XL1200S Sport (XL1); 17-18 XL1200T Superlow (XL2) long version; 12-16 XL1200V Seventy Two (XL2) long Version; 10-18 XL1200X Forty-Eight; 18-19 XL1200XS Forty-Eight Special (No ABE) long version; 99-03 XL53C (XL1); 04-16 XL883 (XL2); 09-18 XL883N Iron (XL2); 00-03 XL883R (XL1); 05-08 XL883R (XL2); 06-16 XL883R Roadster (XL2); 93-99 XLH1200 (XL/2) long version; 92-98 XLH883 (XL/2) long version; 99-05 XLH883 (XL1) long version


Sales unit
Par


Colour
Black


Material
Steel


Finish
Gloss


Position
['Trasera']


Packaging weight
3.723 kg


HS Code
87141090


Motorcycle family
SPORTSTER


Original name
Öhlins, STX36 Blackline rear shock absorber set. 336mm
