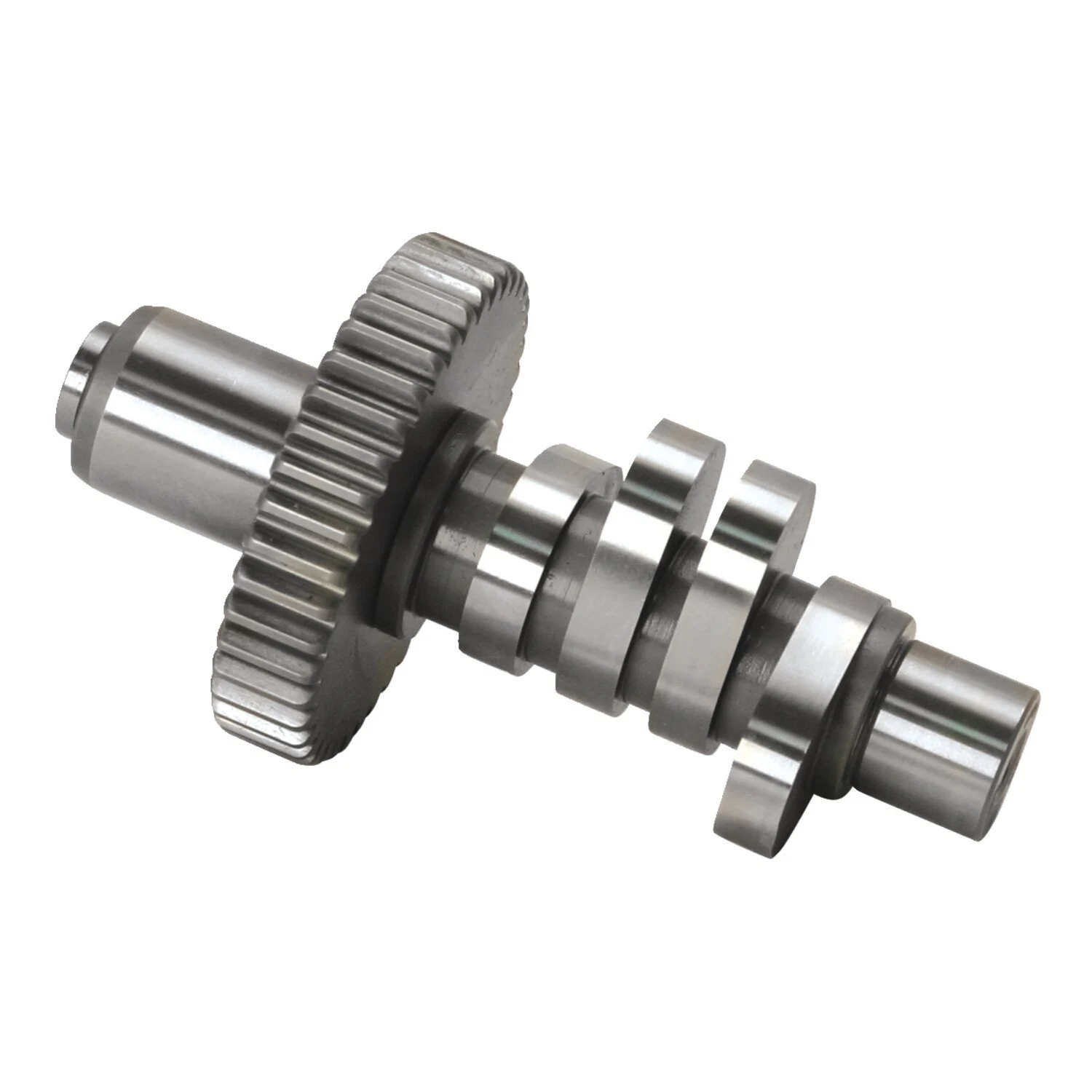

S&S, camshaft 514

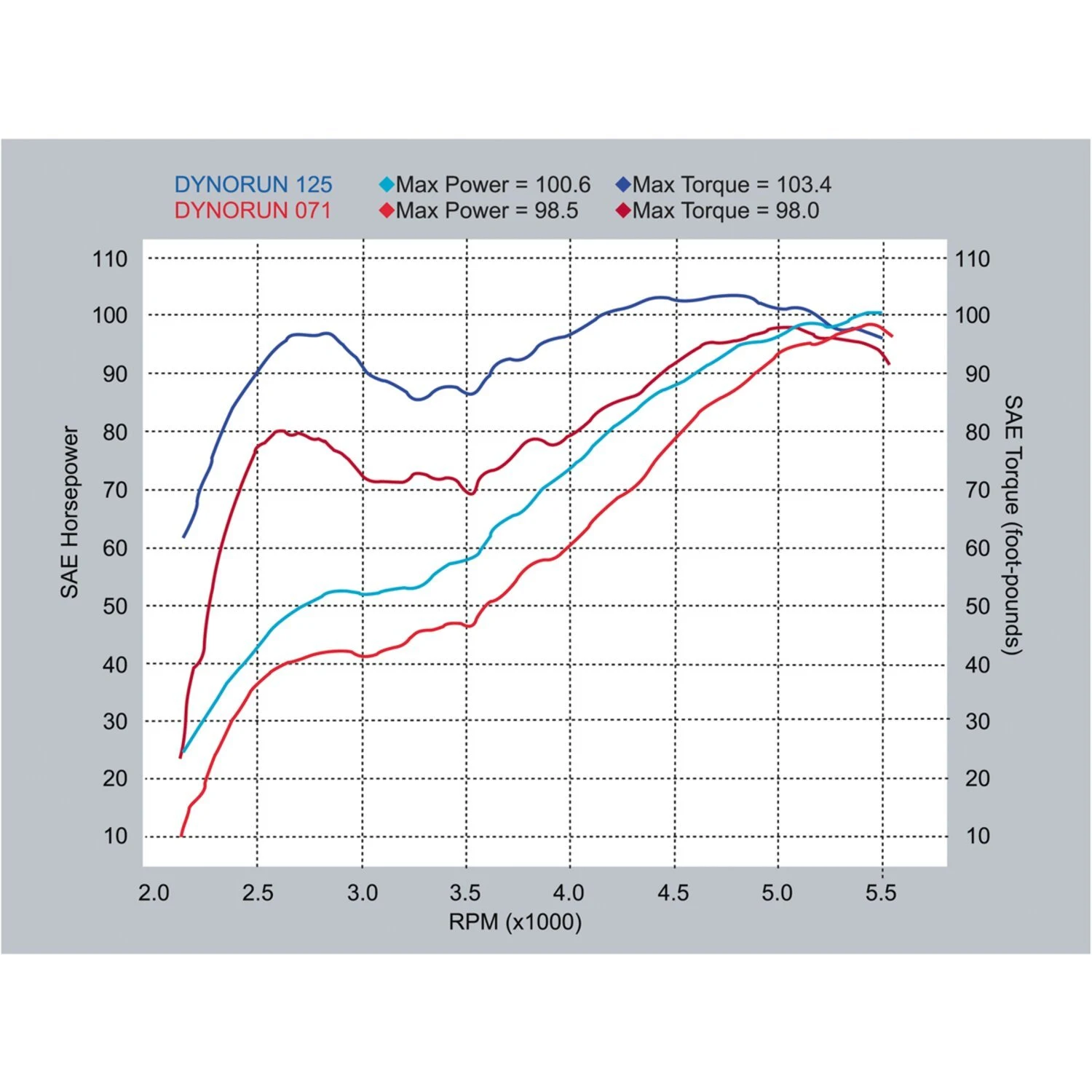

.514" valve lift. For 84" to 93" racing engines with compression ratio no higher than 9:1. The best gains occur in the mid-range from 2500 to 5000 rpm, where most riding takes place. Relatively quiet and less demanding on the valvetrain than most other camshafts with similar lifts. Solid lifters or aftermarket hydraulic lifters are recommended; verification of valve spring spacing and other normal clearance adjustments is required. 2500–5000 RPM.


Specifications


Brand
S&S


Application
70-E77 Shovelhead (NU)


Material
Steel


Packaging weight
0.927 kg


HS Code
84831021


Motorcycle family
BIG TWIN, FX


Original name
S&S, 514 camshaft
