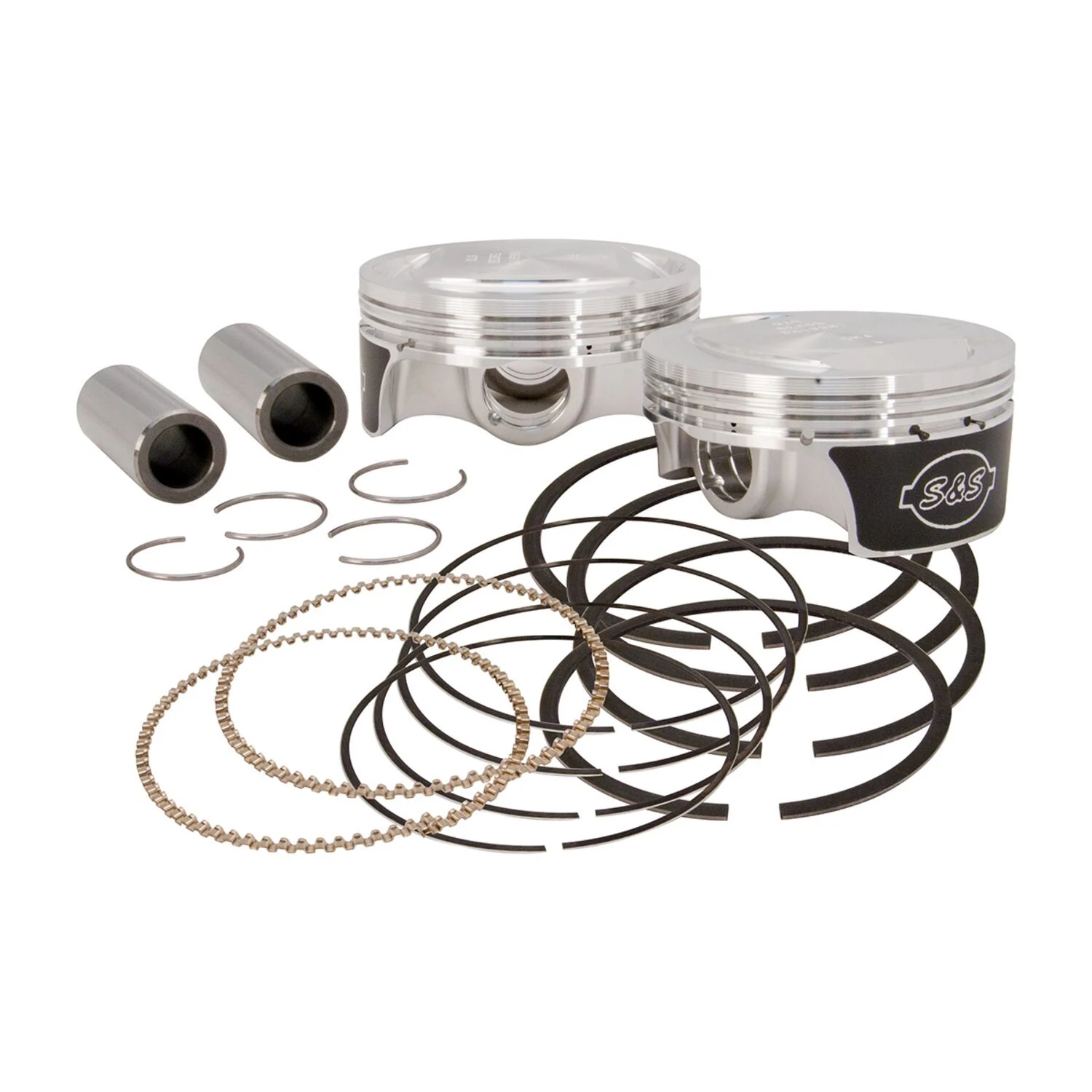

S&S large capacity piston kit 96" to 103". Standard

Fits 2007-2017 Twin Cam 96" models as a 96" to 103" conversion. Compatible with the stock 96" 4-3/8" stroke. The stock cylinders must be machined to 3-7/8" big bore; no other modifications are required. The forged pistons have a 5cc dome, weight is equal to stock. 10.1:1 compression ratio with stock heads. 1.270" deck height. No case machining or rebalancing required; the pistons are compatible with S&S and stock heads. Includes rings, wrist pins and locks.
Note: In all applications, the technician must assess the suitability of the components in combination with the other engine components before installation. It is important that a qualified mechanic carries out the installation and makes the necessary adjustments. The rider must follow standard break-in and riding procedures for rebuilt engines.


Specifications


Brand
S&S


Application
07-17 96" Twin Cam (NU)


Sales unit
Set


Material
Aluminium


Packaging weight
1.121 kg


HS Code
84099100


Motorcycle family
DYNA, SOFTAIL, TOURING


Original name
S&S, 96" to 103" big bore pop-up piston kit. Std
