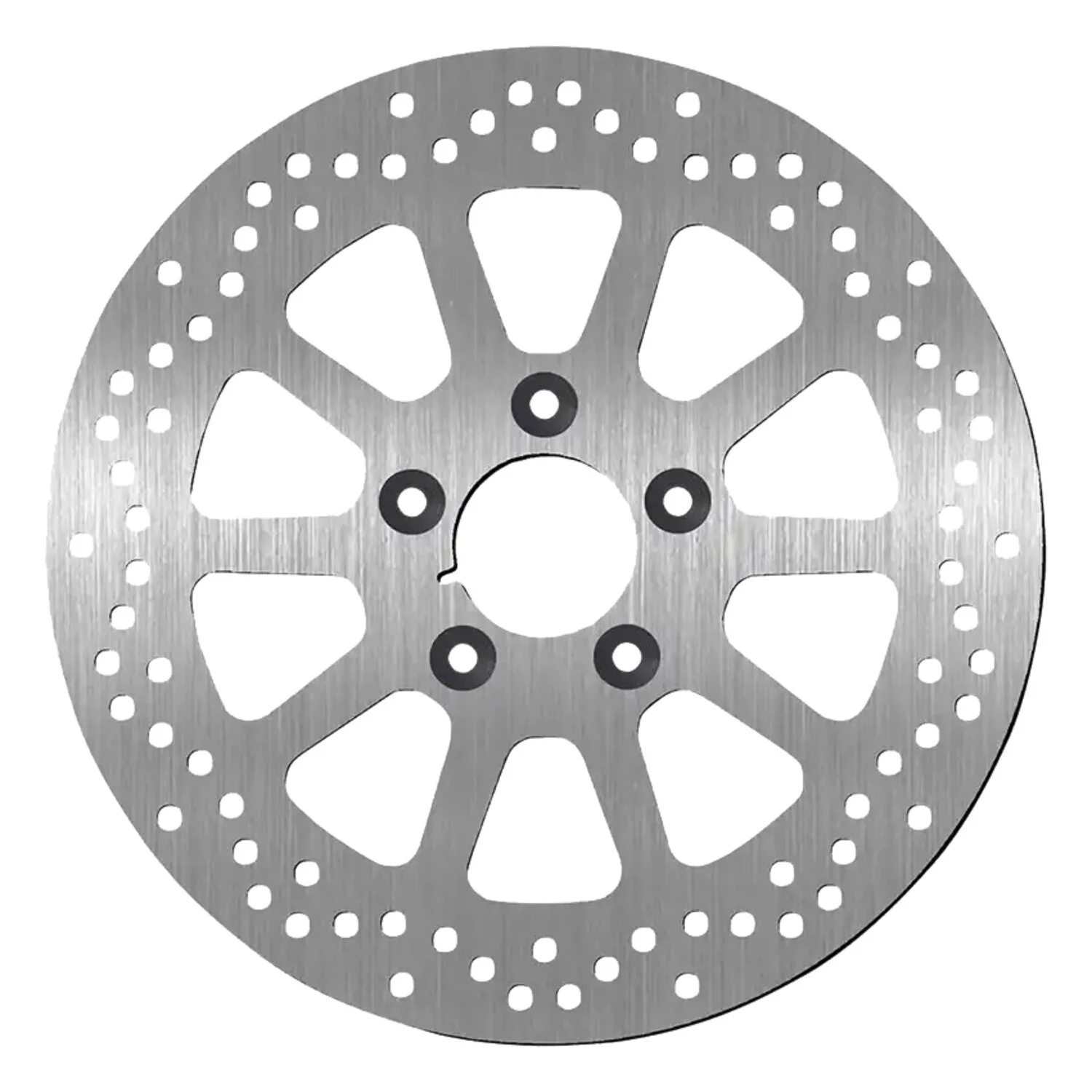

SBS brake disc, '10-Spoke Rigid' 292mm. Rear

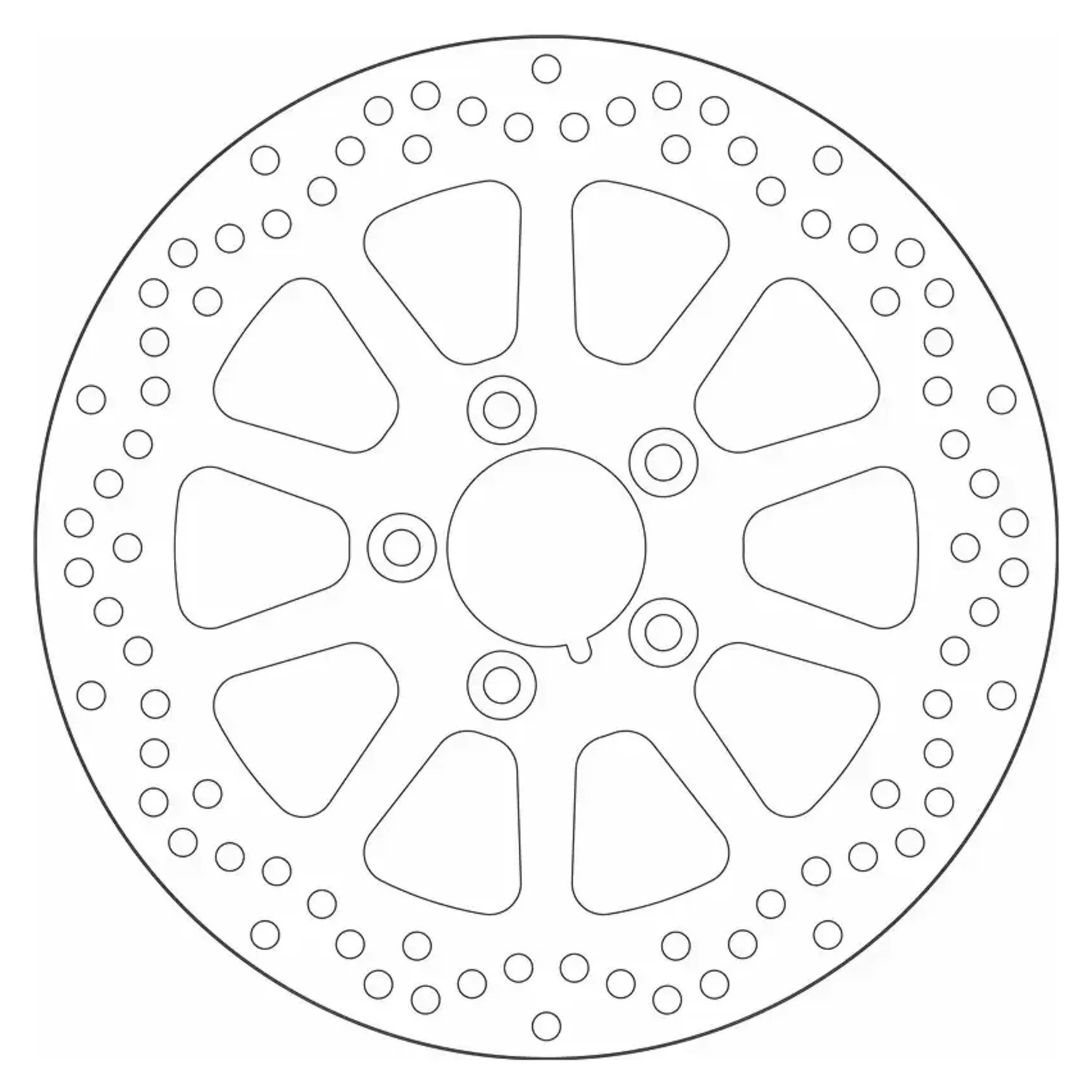

11.5" / 292mm O.D., 56.3mm I.D., 10.5mm (3/8") countersunk mounting holes with 3.25" bolt circle / 48.6mm distance between mounting holes. 5mm thickness. 'B' mounting style.
OEM replacement reference 41797-00.
Note: mounting on the OEM FXSTD wheel requires brake disc spacer plate 43837-00.
SBS brake discs fit the standard H-D 5-bolt hubs. Model years and H-D OEM references are provided for reference only and may feature a custom design. Check the mounting style details for use in custom applications.
All SBS brake discs are made from high-quality stainless steel, alloyed with a high carbon content, to offer excellent braking performance and reliable braking power in any condition. All brake discs are manufactured in the EU by craftsmen using high-end grinding machines for a perfectly flat disc that operates without noise or vibrations.
- High quality stainless steel with high carbon content - Installation as original - Excellent braking performance and braking power in all conditions - Long service life - High level of comfort – no noise, no vibrations - High temperature resistance - Anti-corrosion treatment - Perfectly compatible with all SBS brake pads - Heat-treated stainless steel centre hubs


Specifications


Brand
SBS


Application
Rear: 00-26 Softail (excl. 2017 FXSE); 00-17 Dyna (excl. 16-17 FXDLS); 00-07 Touring; 00-10 XL (excl. XR1200)


OEM
41797-00, 43837-00


Packaging weight
1.704 kg


HS Code
87141010


Motorcycle family
DYNA, SOFTAIL, SPORTSTER, TOURING


Original name
SBS, '10-Spoke Rigid' brake rotor 292mm. Rear
