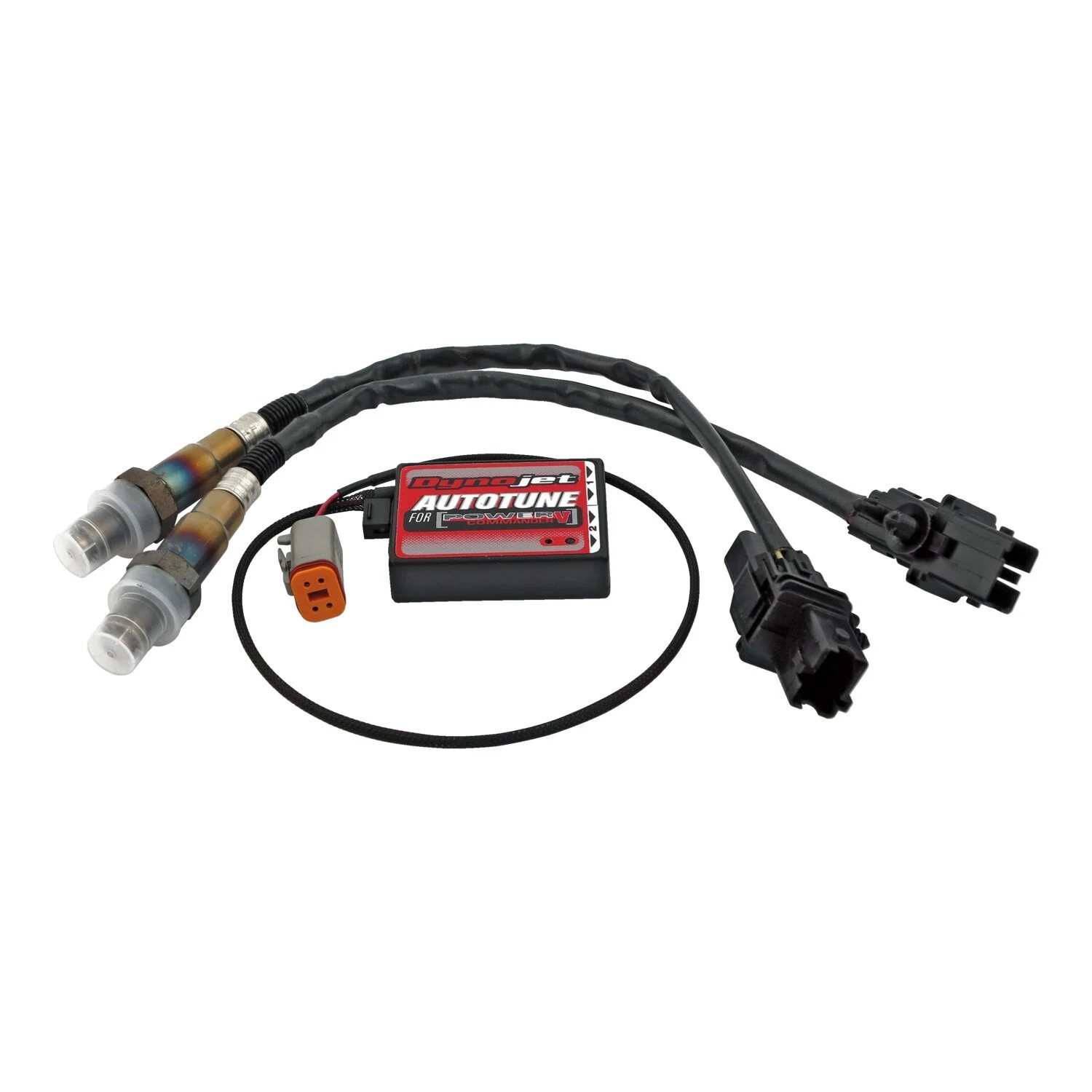

Dynojet Auto Tune, for J1850

For Power Commander 5 modules.
Compatible with J1850, with 4-pin OBD (On-Board Diagnostics) port connector.
In combination with this optional Auto Tune system, the Power Commander map is written automatically while riding. With the Auto Tune connected, the rider can specify what Air/Fuel ratio (how rich or lean the mixture is) should be present at each RPM and throttle position and/or specific gear selection, for the individual cylinders. Base settings are included. This allows complete tuning for good fuel efficiency whilst cruising and the best power at more open throttle positions. The Auto Tune is equipped with two Wide Band O2 sensors, included with the system. Wide Band sensors are more expensive than the standard narrow band sensors used by H-D, but they work much better, especially during rapid throttle position changes, and deliver superior tuning results.
Installation note: O2 sensors The kits come with 18 mm wide band sensors, to replace the lower quality OEM narrow band sensors. All kits include weld-on bungs for 18 mm OBD sensors. The exhaust systems of recent models, with 12 mm O2 sensors, will require the use of these weld-on bungs to convert them to 18 mm wide band sensors. Earlier models, with exhaust systems fitted with 18 mm O2 sensor ports, will not require the included weld-on bungs. The 01-06 bikes, which were not originally fitted with O2 sensors / O2 ports, will obviously also require the weld-on bungs for 18 mm O2 sensors.
Installation note for models with 4- or 6-pin connector:
The Auto Tune system connects to your bike via a 4 or 6 pin connector to your OBD (On Board Diagnostics) connector. Check whether you have a 4 or 6 pin OBD connector before ordering.
Note: 02-15 V-Rods require a power cable.
**Dynojet product not available for purchase by distributors located in the United Kingdom**


Specifications


Brand
Dynojet


Application
01-15 H-D with 4-pin diagnostic plug; 08-17 V-Rod. With Power Commander 5/6 modules (NU)


Packaging weight
0.635 kg


HS Code
90328900


Motorcycle family
DYNA, SOFTAIL, TOURING, V-ROD


Original name
Dynojet Auto Tune system, for J1850
