Feuling, Race Series camshaft head kit

BULLETPROOF™ CAMCHESTS!
FEULING camchest kits take the guesswork out of building your engine by grouping the necessary components and ensuring that each part is designed to work and function in perfect harmony. We guarantee maximum reliability, optimum performance and the lowest possible engine and oil temperatures.

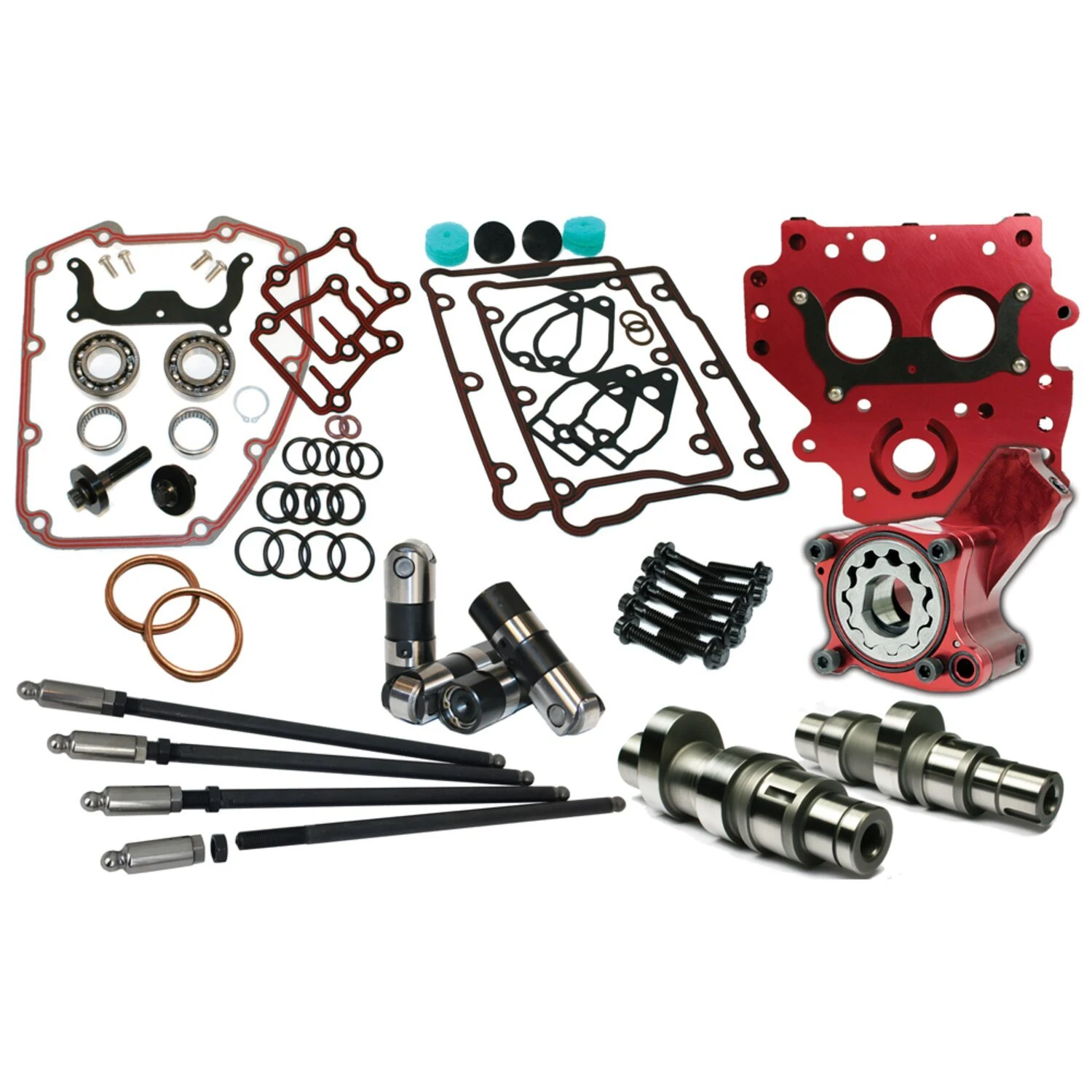

- RACE SERIES kits The kits include a RACE SERIES lubrication system: 7075 billet aluminium oil pump, RACE SERIES rocker arms, high-flow 7075 billet aluminium cam plate, quick-install adjustable pushrods with .134" wall thickness, chrome pushrod tubes. Cam installation kit with gaskets/O-rings, Timken/Koyo cam bearings, ARP hardware for cam/crankshaft/pump/plate, molybdenum paste, Loctite and hardware.
• 7075 machined aluminium oil pump, 50% harder and stronger than the factory pump, maintaining tighter tolerances under temperature.
• The SERIE RACE hydraulic lifters have a total travel of .200", designed with a slower bleed rate to withstand high valve spring pressures, increase engine RPM before valve float and feature greater roller clearance for steep cam profiles.

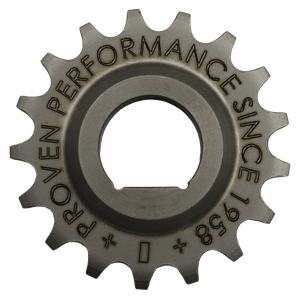

NOTE: Gear drive camchest kits MUST purchase the cam gear kit separately – see S&S #33-4275
The camchest kits are available in FEULING HP+ and RACE SERIES combinations, and with gear or chain drive REAPER cams. Available fits for '99-'17 Twin Cam engines.
• Fortify your engine with maximum reliability • Engine temperatures 25-35 degrees cooler • Oil temperatures 15-30 degrees cooler • 15-30 lbs more oil pressure • More power • Quieter and smoother engine operation • Eliminates wet sumping, blow-by and oily air filters.
630 CAMS - Vicious power gains, wide streetable power band from a high-lift cam profile for high-performance engines with highly modified heads and compression ratio. Requires carburettor and/or throttle body work, along with a high-performance exhaust and intake system. Maintains low-rpm performance with dazzling mid and top-end power. Requires high-performance valve springs, pushrods and rocker arms. RPM 2,500 - 6,900+
Feuling does not recommend adjusting beyond factory emission standards.
NOTE: Gear drive camchest kits MUST purchase the cam gear kit separately – see S&S #33-4275
Note: Product available on special order only.
To order, please contact your MCS sales representative.


Specifications


Brand
Feuling


Application
99-06 Twin Cam (Excl. 2006 Dyna), Gear Drive, Includes 630 Reaper™ Camshafts #1010, Cam Install kit #2061, RACE SERIES™ Lifters #4050, Quick Install adjustable pushrods #4096, Chrome pushrod tubes #4095, RACE SERIES™ oil pump #7062, Anodised camplate #8000 and ARP Camplate/Oil Pump Fasteners #8020. Requires cam gears see S&S #33-4275


Sales unit
Kit


Packaging weight
0 kg


HS Code
84831021


Motorcycle family
DYNA, SOFTAIL, TOURING


Original name
Feuling, Race Series Camchest Kit
