Feuling, Race Series camshaft head kit

BULLETPROOF™ CAMCHESTS!
NOTE: This camchest kit is the stock fit for mechanical spring tensioners. If you want to upgrade to hydraulic tensioners (recommended), see kits nos. 7222, 7222P, 7222ST.
FEULING complete camchest kits include all the necessary components from the top to the bottom of the camchest, conveniently packaged under a single part number. These combined kits not only ensure that each individual part is designed to work and function together, but that they do so in complete harmony. These camchest kits take the guesswork out of the ordering process and guarantee the engine builder maximum reliability, optimum performance and the lowest possible engine and oil temperatures.

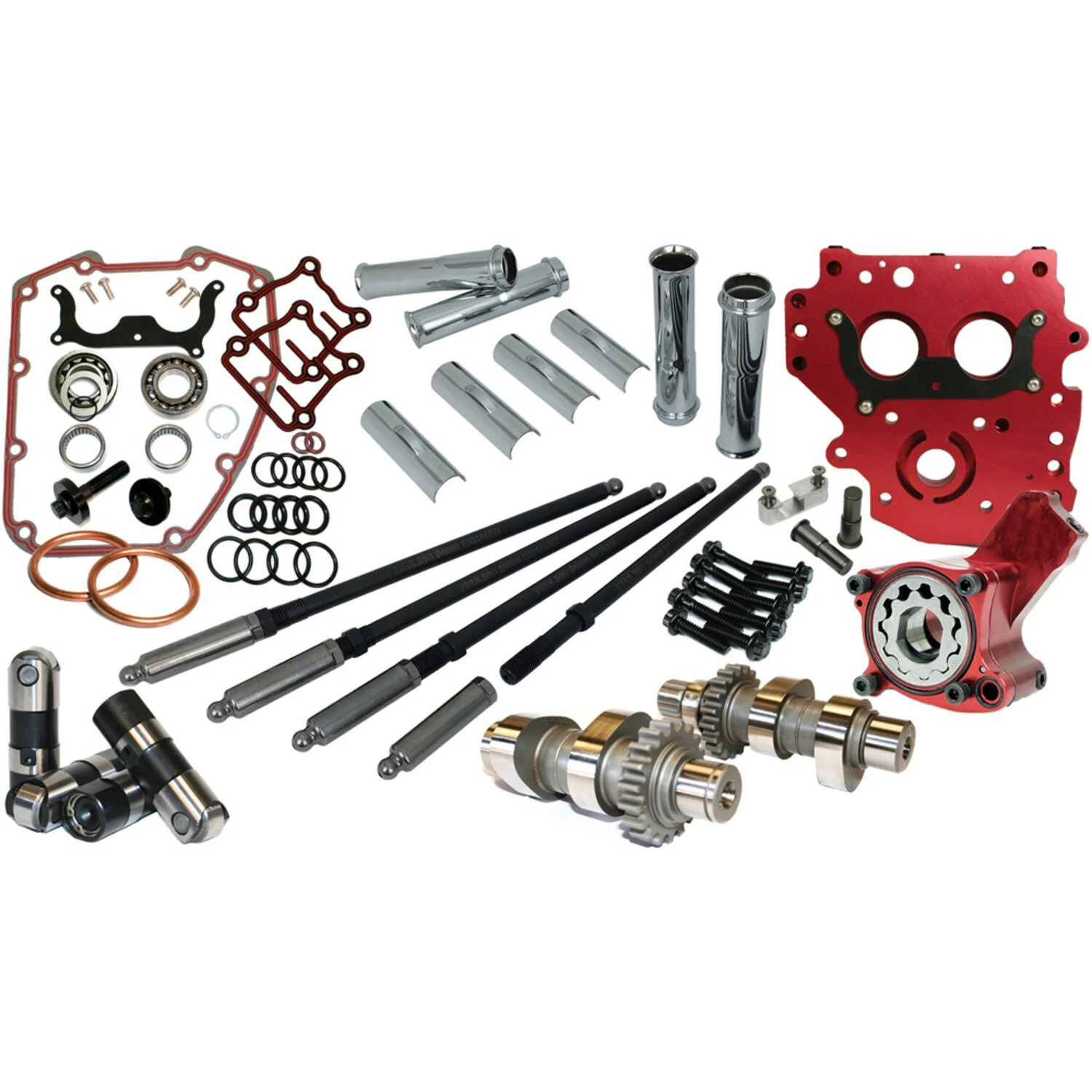

The complete camchest kits include: FEULING high-volume oil pump, high-flow camplate, REAPER Series camshafts, hydraulic roller lifters, adjustable pushrods, Timken bearings, gaskets, O-rings, exhaust gaskets, ARP fasteners, washers, molybdenum paste, Loctite and hardware.
Camchest kits are available in FEULING HP+ and RACE SERIES combinations, and with gear- or chain-driven REAPER camshafts. Fits available for Twin Cam '99-'17 engines. Engine temperatures 25-35 degrees cooler, oil temperatures 15-30 degrees cooler, 15-30 pounds more oil pressure, quieter and smoother engine operation, elimination of wet sumping, crankcase gases and oily air filters.
574 CAMS - Powerful power band for modified engines and an excellent bolt-in option for stock 96", 103" and 110" engines. This is an excellent all-round camshaft with solid low-rpm performance and impressive mid and high-rpm power. The extremely smooth cam design creates very smooth valve train motion. Responds very well to modified cylinder heads, higher compression ratio, high-performance exhaust and intake systems. High-performance valve springs are required on '99-'04 engines and high-performance pushrods and lifters are recommended. RPM 2,100 - 6,500
Note:
1999 model year engines using keyway style camshafts/pulleys will need to purchase the splined style camshaft rear pulley separately. See part no. 1093 or no. 1094.
Note: Product available on special order only.
To place an order, contact your MCS sales representative.


Specifications


Brand
Feuling


Application
99-06 Twin Cam (Excl. 2006 Dyna), Chain Drive, Includes 574 Reaper™ Camshafts #1002, Cam Install kit #2058, RACE SERIES™ Lifters #4050, Quick Install adjustable pushrods #4096, Chrome pushrod tubes #4095, RACE SERIES™ oil pump #7050, Anodised camplate #8010 and ARP Camplate/Oil Pump Fasteners #8020


Sales unit
Kit


Packaging weight
0 kg


HS Code
84831021


Motorcycle family
DYNA, SOFTAIL, TOURING


Original name
Feuling, Race Series Camchest Kit
