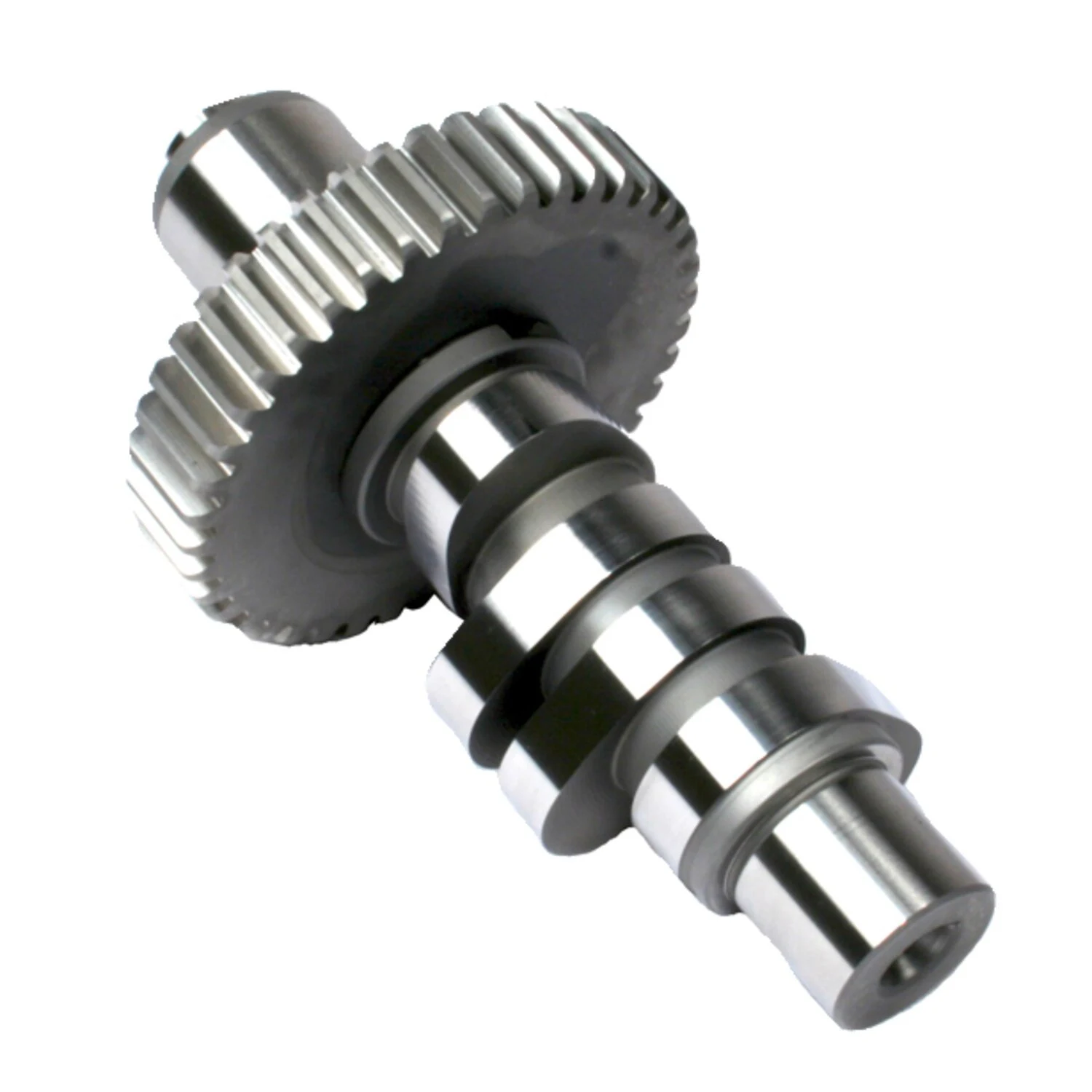

Feuling, Reaper 574 Evo cam

The Reaper EVO 574 camshaft requires high-performance valve springs, such as the Feuling 566032, 707562 or 566034. High-performance lifters are recommended, though not mandatory. It works with stock pushrods on engines with standard block height; if the block height, cylinders or rocker boxes have been modified from standard, adjustable pushrods are required, such as the Feuling 566073, 566070 or 707315. Compatible with a stock engine, but increased compression ratio, head work and a high-performance exhaust will enhance its performance. Increased compression is required for good lower end performance. RPM range: 2,700 - 6,200.
Intake: Valve lift .574, Opens 15°, Closes 45°, Duration 240° @ 53", .163 lift @ TDC, Cam centre 105° Exhaust: Valve lift .574, Opens 61°, Closes 14°, Duration 255° @ 53", .143 lift @ TDC, Cam centre 113.5° Overlap: 29°.


Specifications


Brand
Feuling


Application
84-99 Evo Big Twin (NU)


Sales unit
Kit


Packaging weight
0.912 kg


HS Code
84831021


Motorcycle family
BIG TWIN, DYNA, FX, FXR, SOFTAIL, TOURING


Original name
Feuling, Reaper 574 Evo camshaft
