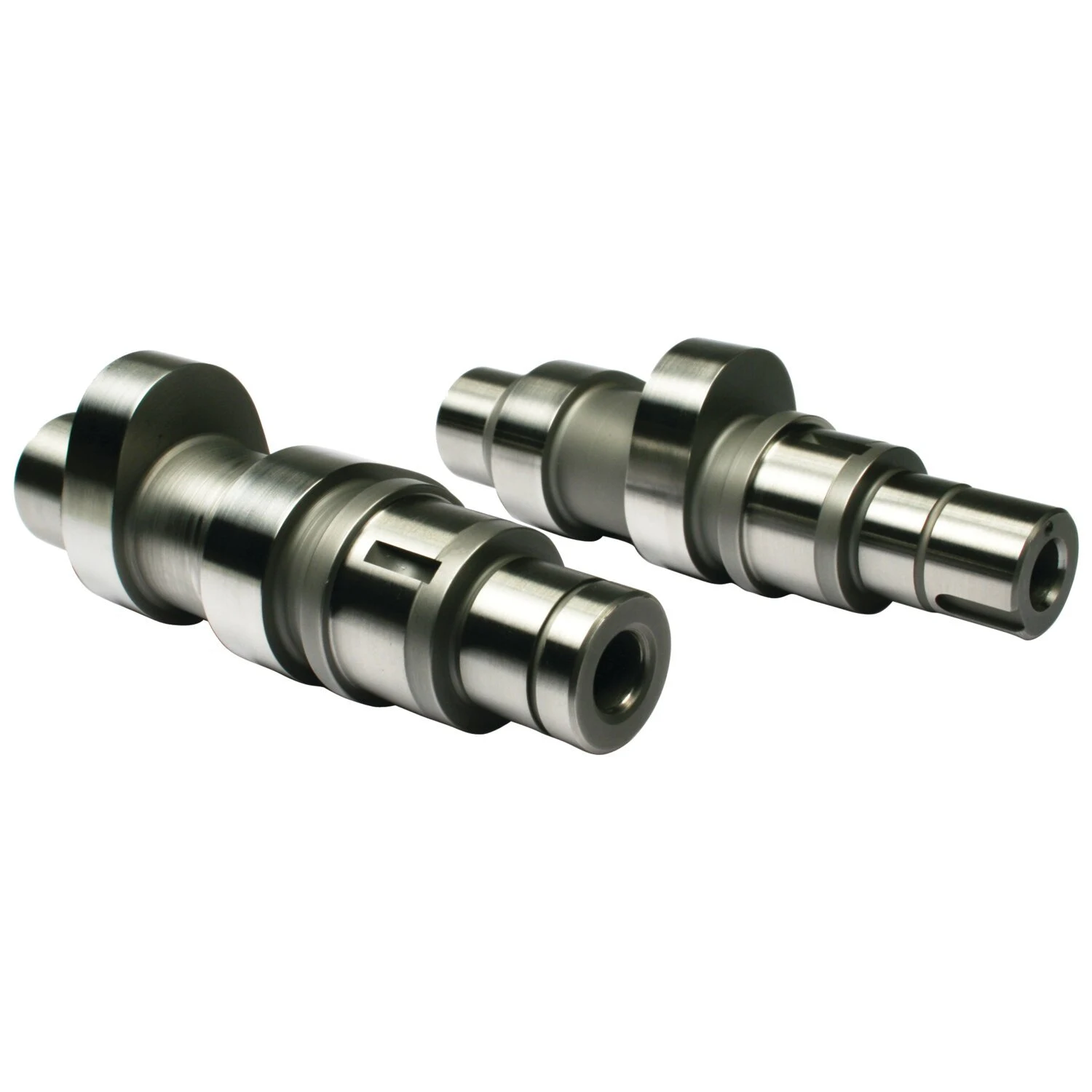

Feuling, Reaper 594G gear-driven cam kit

Gear drive. .594" intake valve lift, .594" exhaust valve lift. The camshafts come without the inner and outer drive gears.
Large displacement 103/110/124". Power range 2200-6250 RPM with excellent performance on heavy motorcycles. For high-compression 95" engines in the upper RPM range. Works well with a higher compression ratio, but smaller engines also require it. High lift springs, pushrods, lifters, carburettor / throttle body work, high-performance exhaust, intake and clutch work required.
Note: These high lift cams come with smaller base circles and therefore require adjustable pushrods to compensate for the additional length needed.
Note: Gears must be purchased separately. Installation is a simple press fit. If you have gears from your current drive camshaft, Andrews or S&S, these can be reused, or a new S&S set (503606) can be purchased.


Specifications


Brand
Feuling


Application
99-06 Twin Cam A/B (NU) (Excl. 2006 Dyna)


Material
Steel


Packaging weight
1.232 kg


HS Code
84831021


Motorcycle family
DYNA, FXR, SOFTAIL, TOURING


Original name
Feuling, Reaper gear driven 594G camshaft set
