HP+® Cam box kit - CAMCHEST HP+ with Reaper 525 by chain

For Twin Cam '99-'06, excluding '06 Dyna
Includes all components required for the complete camshaft assembly
Maximum reliability, durability, performance and the lowest possible engine and oil temperatures
Quieter and smoother engine operation
Increases oil pressure, return volume and engine oil flow
Engine temperatures 25°-35° lower
Oil temperatures 15°-30° lower
15-30 PSI additional oil pressure
Eliminates wet sumping, blow-by and oily air filters

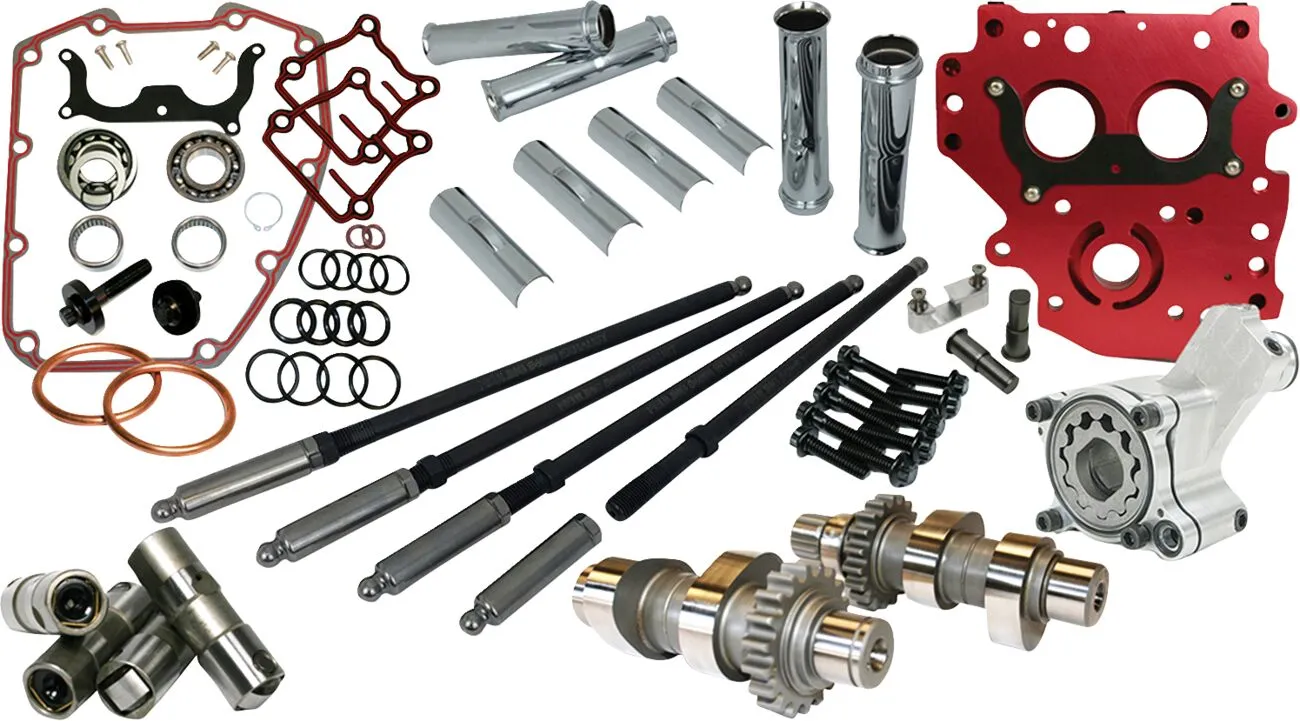

The kit includes Feuling® high-flow oil pump, High Flow cam plate, Reaper® camshafts, hydraulic lifters, quick-install or one-piece adjustable pushrods, Timken® bearings, gaskets, O-rings, exhaust gaskets, ARP® bolts, washers, moly paste, Loctite® and hardware
'99 model engines using a camshaft/sprocket with a keyway require a splined camshaft rear sprocket (sold separately).
The kit uses OE-style spring tensioners. For hydraulic tensioners, see the chain drive conversion kit.
Designed to increase torque range and improve fuel consumption.
Excellent bolt-in camshaft upgrade for stock 88" and 96" engines; also performs very well on 103" stroker engines and responds well to increased compression and head work.
Produces strong low-to-mid-range power with a linear power and torque curve.
Can be used with original valve springs, stems and tappets.
Improves throttle response and facilitates starting.
Power range: 1,750 - 5,500 rpm.



Specifications


Brand
FEULING PARTS


Supplier reference
7201


Application
Intake, Exhaust


Features
Quick-fit adjustable pushrods


Intake cam centre
109°


Exhaust cam centre
113°


Intake closure
42°


Exhaust Clamp
5°


Intake duration
226°


Exhaust duration
236°


Intake valve lift
0,525"


Intake valve lift at TDC
0,099"


Exhaust valve lift
0,535"


Exhaust valve lift at TDC
0,112"


Model
HP+®


Product name
Camshaft housing kit


Type
Chain drive


Units
Kit


Open intake valve
4°


Open Exhaust Valve
51°


Version
525 Series
