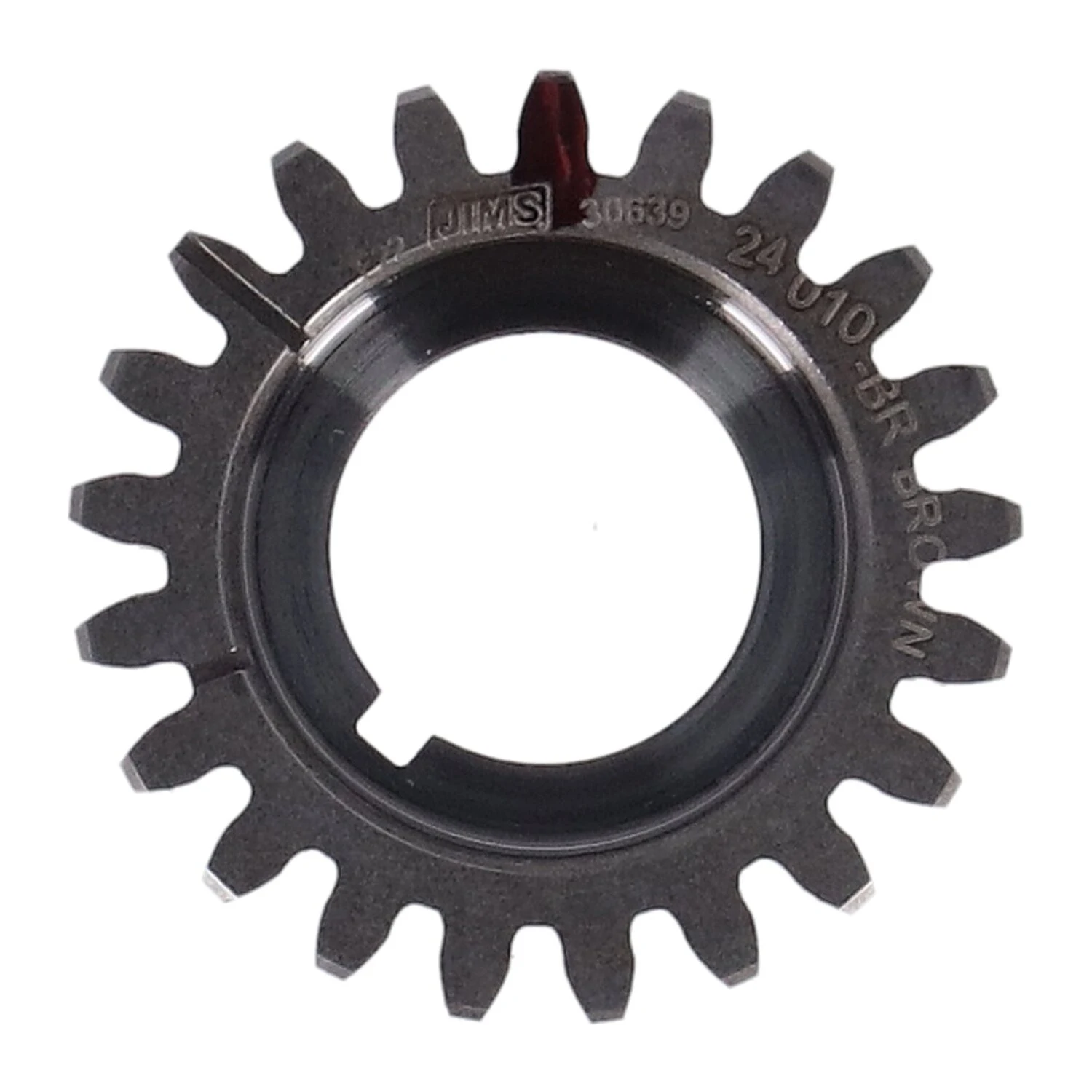

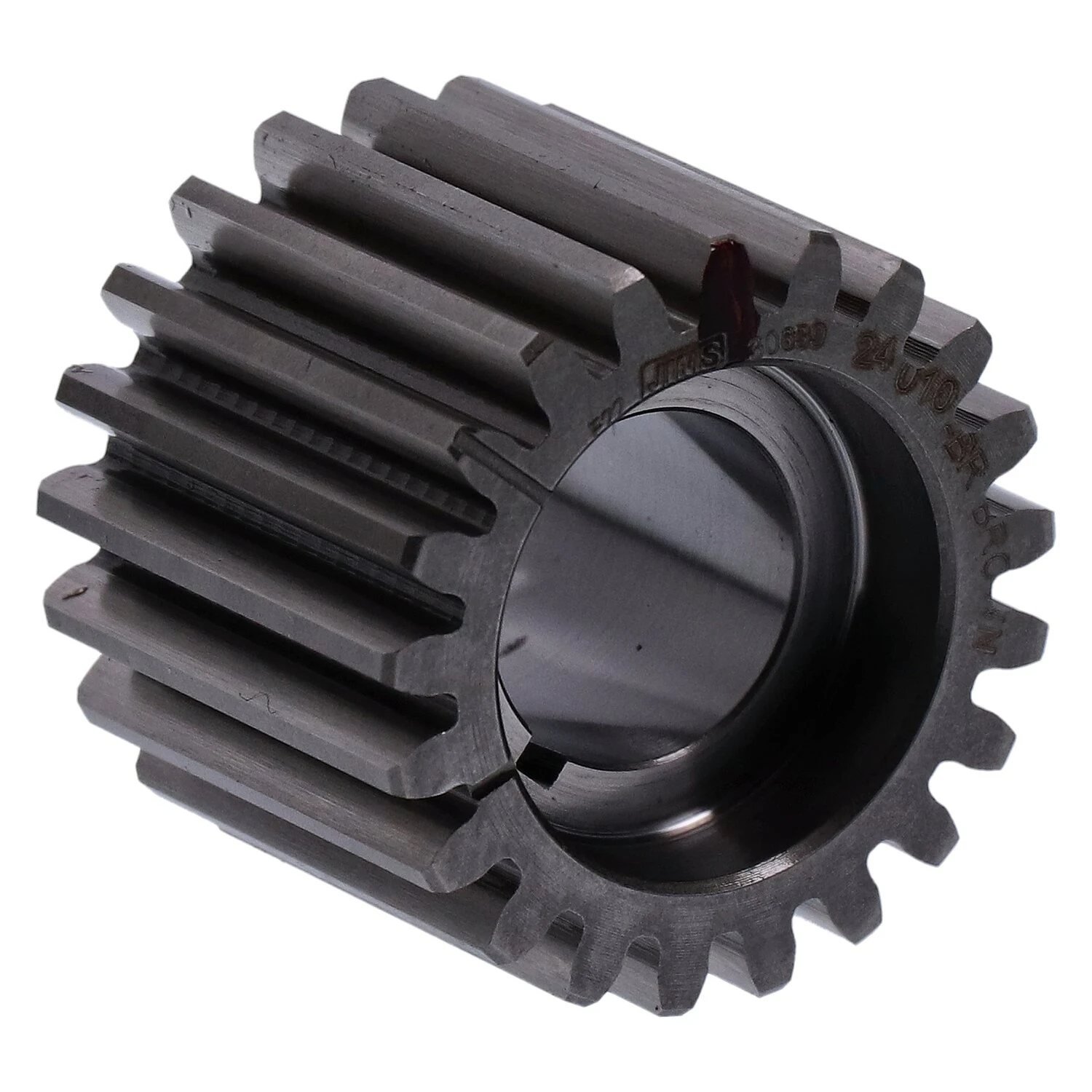

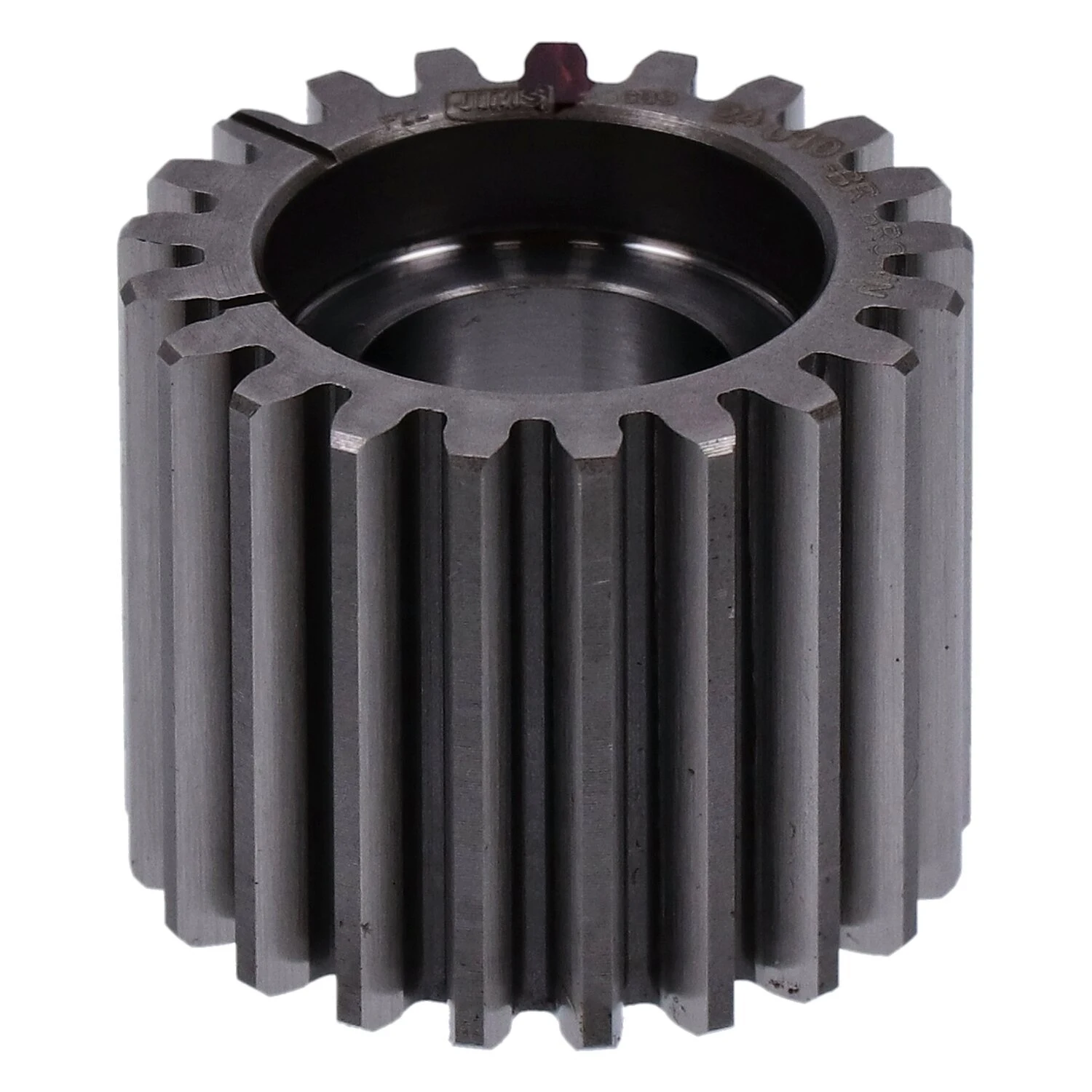

JIMS, 54-77 sprocket. Brown

Crown size for .105" pins: 1.4460-1.4455".
Camshaft sprocket gear for .105" pins: 2.7695-2.770".
Manufactured from the finest American aerospace quality tool steel. Precision machined to exacting tolerances with no compromises.
Note: Cam gear fit is essential for quiet valve train operation. Too loose a fit will cause a clicking noise, sometimes confused with tappet noise. Too tight a fit will produce a whining sound and premature wear.
The sizes are as follows:
961300 Orange (larger).
961301 Red.
961302 Blue (medium).
961303 Green (average). Replaces 24010-54.
961304 White. Replaces 24010-54.
961305 Brown.
961306 Amarillo (smaller).


Specifications


Brand
Jims


Application
54-E77 Big Twin (NU)


Colour
Brown


Material
Steel


Packaging weight
0.13 kg


HS Code
84099100


Motorcycle family
BIG TWIN, FX, TOURING


Original name
JIMS, pinion gear 54-77. Brown
