FEULING PARTS

Race Series® camshaft kit

2.509,65€ IVA inc.

Made to order from the USA

Estimated delivery in 30-45 days Shipping surcharge 15€ per order No cancellation or return, unless defective Terms and conditions

Version: Kit de levas RS 487 transmisión por cadena refrigerado por aceite M8 17-
SKU: AK-3813-9134 Category: Brand:
Compatible motorcycles (37 models)
Not exactly what you're looking for?Need help finding your spare part? Tell us and we will take care of it.
Locate your spare part
Version Kit de levas RS 487 transmisión por cadena refrigerado por aceite M8 17-
Brand

FEULING PARTS

Motorcycle family

,

Made to order from the USA

You may also like

Descripción.

  • Includes 487 Reaper® Chain Drive camshaft, cam installation kit, Race Series tappets, one-piece pushrod, Race Series® oil pump, high-flow cam plate and ARP studs and nuts, plus cam plate/oil pump bolts.
  • 487 Reaper Cam
  • Chain drive
  • 38° overlap
  • RPM range: 2,250 - 6,100
  • Camshaft for 114" and 117" engine
  • Responds very well to increases in diameter and/or compression
  • Maintains power at low revs and offers greater thrust above 2,950 rpm compared to the original
  • Camshaft specifications measured on the engine on the lifter @ 0.050 using a rocker arm ratio of 1.61
  • Cam installation kit
  • Includes cam bearing, cam/crank bolts and gasket/O-ring set
  • Race Series® Camshafts
  • Full-stroke hydraulic pushrods manufactured from machined steel with 0.200" stroke
  • Single-piece pushrod
  • Heavy-duty 7/16" diameter HP+ tube with 0.165 wall thickness, precise concentricity, heat-treated and black oxide finish
  • Race Series® oil pump
  • High-flow 2.250 chrome-molybdenum gerotor gears
  • 27% more pressure and intake gear volume compared to original
  • 42% greater evacuation volume thanks to passages, ports and holes adjusted to the engine sump
  • 46% more crankshaft and connecting rod bearing oil volume
  • Engine temperatures 15°-25° lower
  • Oil temperatures 15°-30° lower
  • 10-30 PSI additional oil pressure
  • Reduces wet sumping, blow-by, and oily air filters
  • Magnets to protect gears and pressure relief valve
  • FEULING test results show a 50% reduction in engine sump oil level.
  • High-flow cam plate
  • Increases in rear wheel power of 2 horsepower and 2 ft. lb. of torque possible
  • Manufactured in the USA
  • Feuling does not recommend adjusting beyond original emissions standards

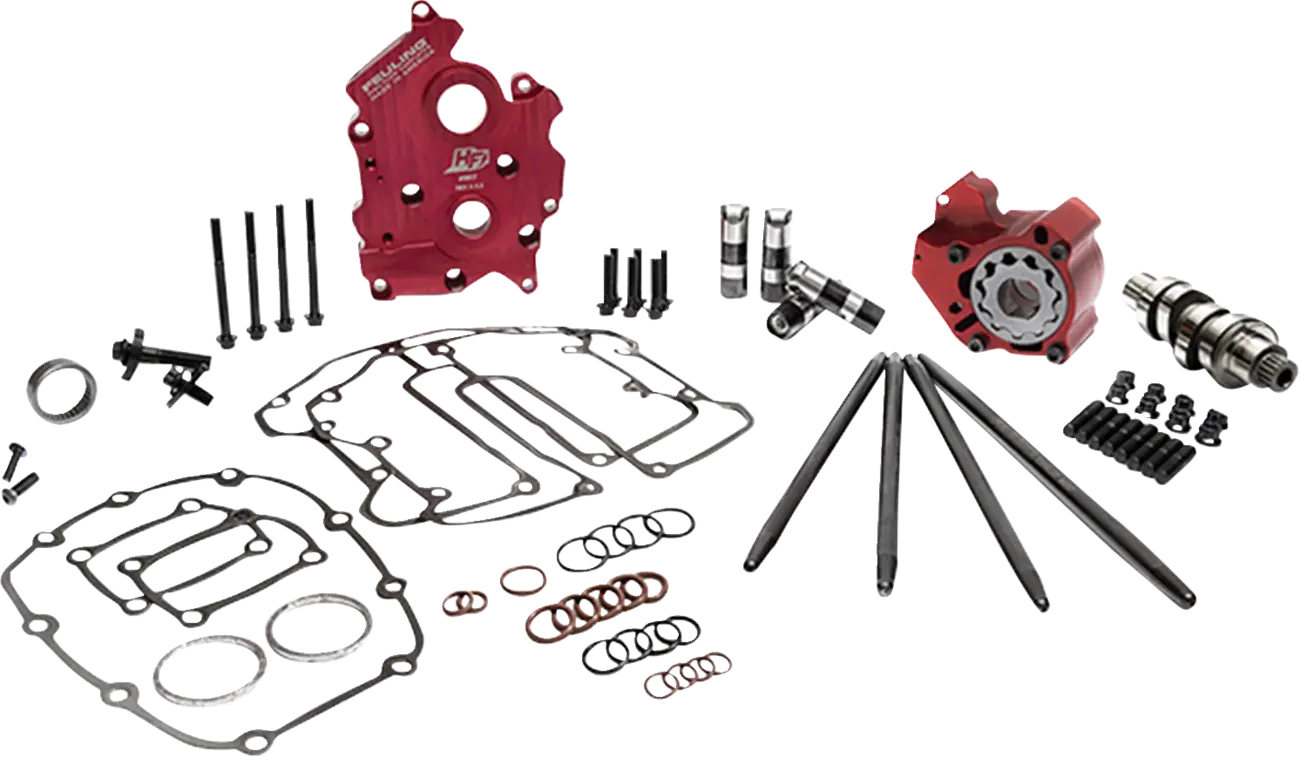

  • The kit includes:
  • • 487 Reaper camshaft
  • • HP+ rods
  • • Race Series® Spigots
  • • High-flow camshaft plate
  • • Race Series® oil pump
  • • Camshaft installation kit
  • • ARP balancer bolts and nuts
  • • Fixings for camshaft/ oil pump plate

Specifications

Brand FEULING PARTS
Supplier reference 7272
Application Oil-cooled
Intake cam centre 98,5°
Exhaust cam centre 103,25°
Intake closure 37°
Exhaust Clamp 17,5°
Intake duration 237°
Exhaust duration 241,5°
Intake valve lift 0,478"
Intake valve lift at TDC 0,180"
Exhaust valve lift 0,487"
Exhaust valve lift at TDC 0,146"
Model Reaper
Product name Camshaft housing kit
Type Chain drive
Units Kit
Open intake valve 20,5°
Open Exhaust Valve 44°
Version 487 Series
