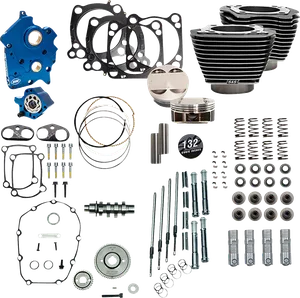

Power Package 132" engine performance kit

Bolt-on Big Bore kit increases your 114"/117" with a 4.50" stroke M8 to 132" without the need to machine the sump
4.320" big bore cylinder with 11.0:1 forged pistons
Oil pump/cam plate S&S
Removable service plugs
Independent drain sections for the crankcase and camshaft compartment
Residue filter on both scavenging ports
Magnet in the cam cover to prevent debris from entering the oil pump
Greater oil flow capacity in both supply and return
Adjustable pressure relief valve, adjustable with the unit installed on the engine
Quickee rods with rod tubes
S&S premium tappets
S&S hard anodised and black coated tappet cuffs, manufactured from billet aluminium.
S&S valve springs compatible with cams up to 0.605" lift
High-performance single-wire conical spring design
HPT496 camshaft designed for large bore applications
MLS head gasket (multi-layer steel)
Includes 132 cam cover badge
Manufactured in the USA
Maintains original engine height.
Compatible with original crankcases
Compatible with original and S&S rocker arms.
The original engine serial numbers are retained.
Compatible with original valve springs, both first generation (round port) and second generation (oval port).



Specifications


Brand
S&S CYCLE


Supplier reference
310-1393


Features
Chrome pushrod tubes


Engine capacity
132"


Colour/finish
Black, Prominent fins


Cylinder Dimensions
4,320"


Style
HPT496 Series


Model
Performance Kit


Product name
Power Package


Compression ratio
11,0:1


Cooling system
Oil-cooled


Type
Engine


Distribution type
Equipment


Units
Kit
