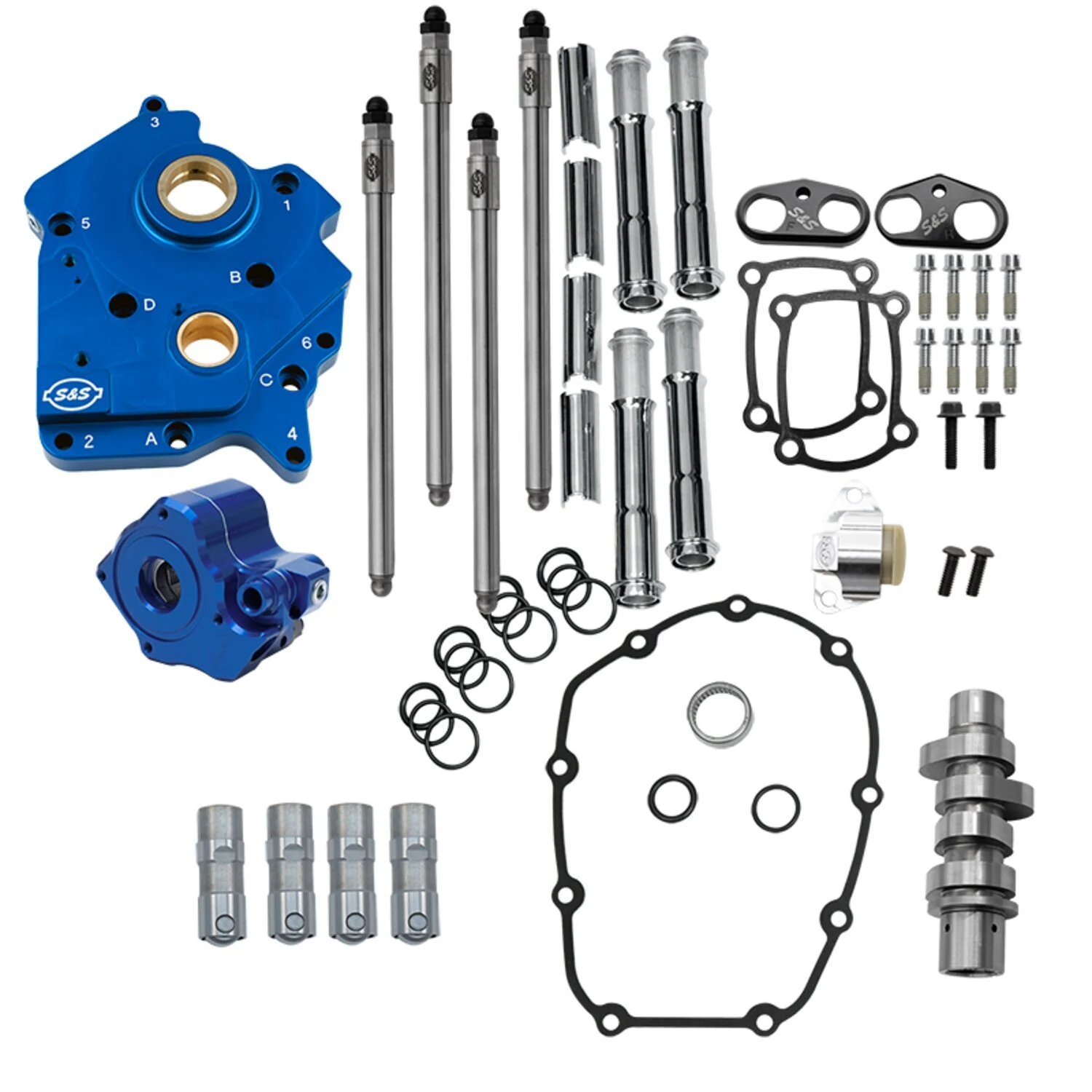

S&S, HPT560 chain drive camshaft case kit

S&S Cycle now covers your 2023-2026 VVT-equipped bike with the new HPT560 cam. This bolt-in cam offers a significant increase in both horsepower and torque from as low as 2000 rpm. Torque gains extend across the entire power band, whilst horsepower sees a large increase at the top end. As a bolt-in cam, it is compatible with stock rocker arms and springs, as well as S&S Cycle rocker arms.
Features and Benefits
Quickee Adjustable Straps:
• Simple installation and fitting on the bike • No need to remove rocker boxes • Chrome tie-rod tubes
S&S Precision Camshafts:
• Hand-assembled to exacting tolerances • Reduced valve train noise with superior high-RPM performance • Tight tolerances guarantee consistent oil pressure and lift
Cam followers:
• Hard anodised machined aluminium construction • Eliminates distortion to improve camshaft stability • Optimised for high lift and high RPM operation
Oil Pump and Cam Plate:
• Precision CNC machined from forged aluminium • Independent scavenge sections for the flywheel cavity and cam housing • Removable passage plugs for easy maintenance • Twin debris screen and magnetic pickup for superior oil filtration • +44% increase in oil supply flow / +58% increase in scavenge efficiency • Adjustable pressure relief valve (tunable with the part installed) • Includes high-performance S&S cam chain tensioner


Specifications


Brand
S&S


Application
23-26 M8 models with VVT (Excl oil-cooled models)


Sales unit
Set


Packaging weight
4.724 kg


HS Code
87141090


Motorcycle family
TOURING, TRIKE


Original name
S&S, Chain drive HPT560 cam chest kit
