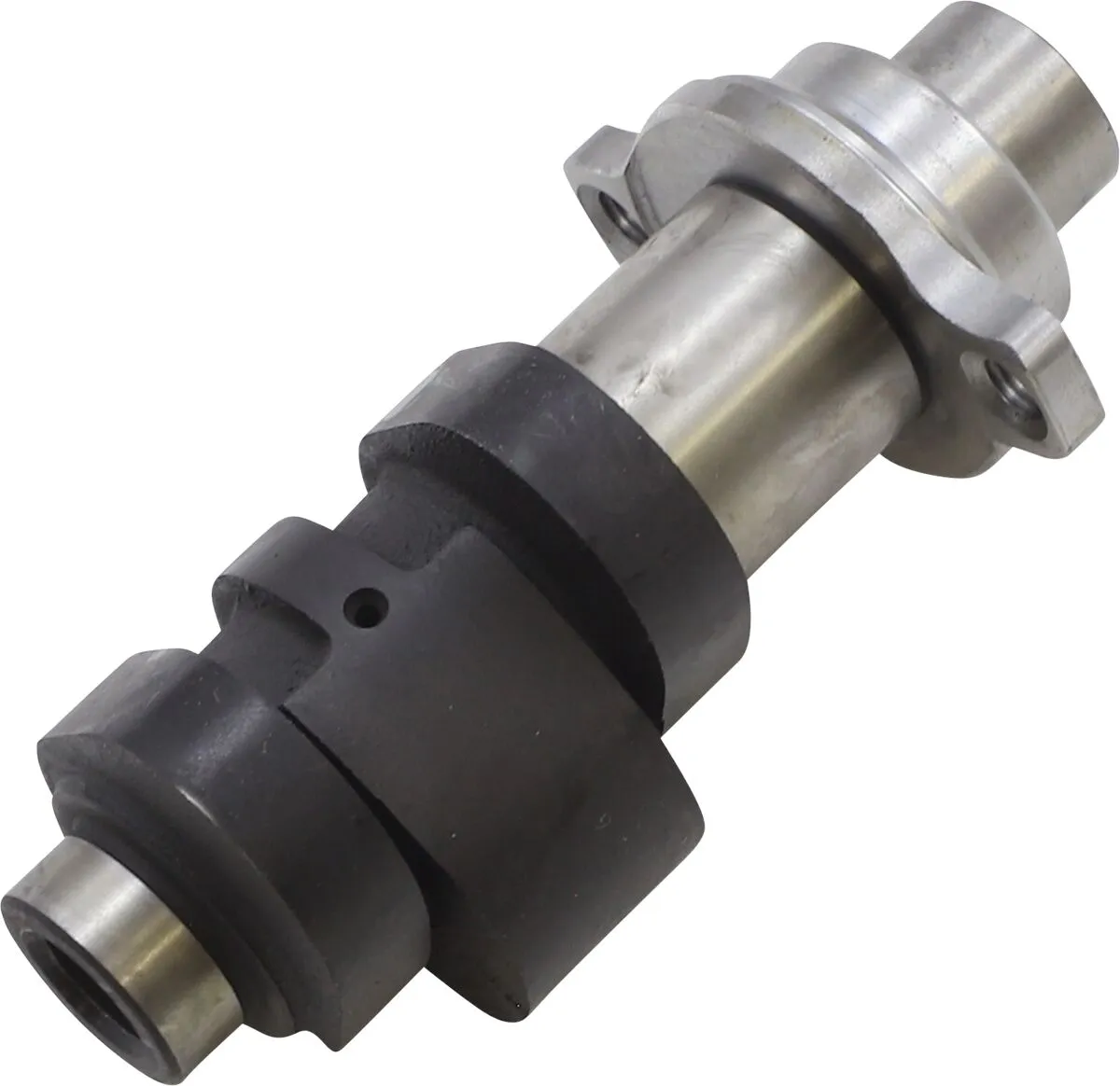

Stage 2 camshaft - single stage

CNC machined from 8620 forged and cemented steel.
Designed and tested on a dynamometer in the USA
Designed using valve train software
Increases power by between 5% and 10%
Some camshafts feature Hot Cams Improved Throttle Design (I.T.R.) technology; they improve throttle response across the entire rpm range and offer significant power gains at mid and high revs.
Designed to improve performance at mid and high RPMs.
Designed as drop-in camshafts using the original valve springs (unless otherwise stated).
More power at high revs than Stage 1 with additional gains in the mid-range.
Uses original valve springs and rockers.
Does not use an automatic decompression mechanism.
For engine with single camshaft.
Intake valve clearance: 0.150 mm.
Exhaust valve clearance: 0.200 mm.



Specifications


Brand
HOT CAMS


Supplier reference
1010-2


Application
Exhaust, Intake


Intake cam centre
107°


Exhaust cam centre
103°


Intake duration
265°


Exhaust duration
260°


Intake valve lift
9,570 mm


Exhaust valve lift
9,510 mm


Product name
Camshaft


Type
Stage 2


Units
Unit
