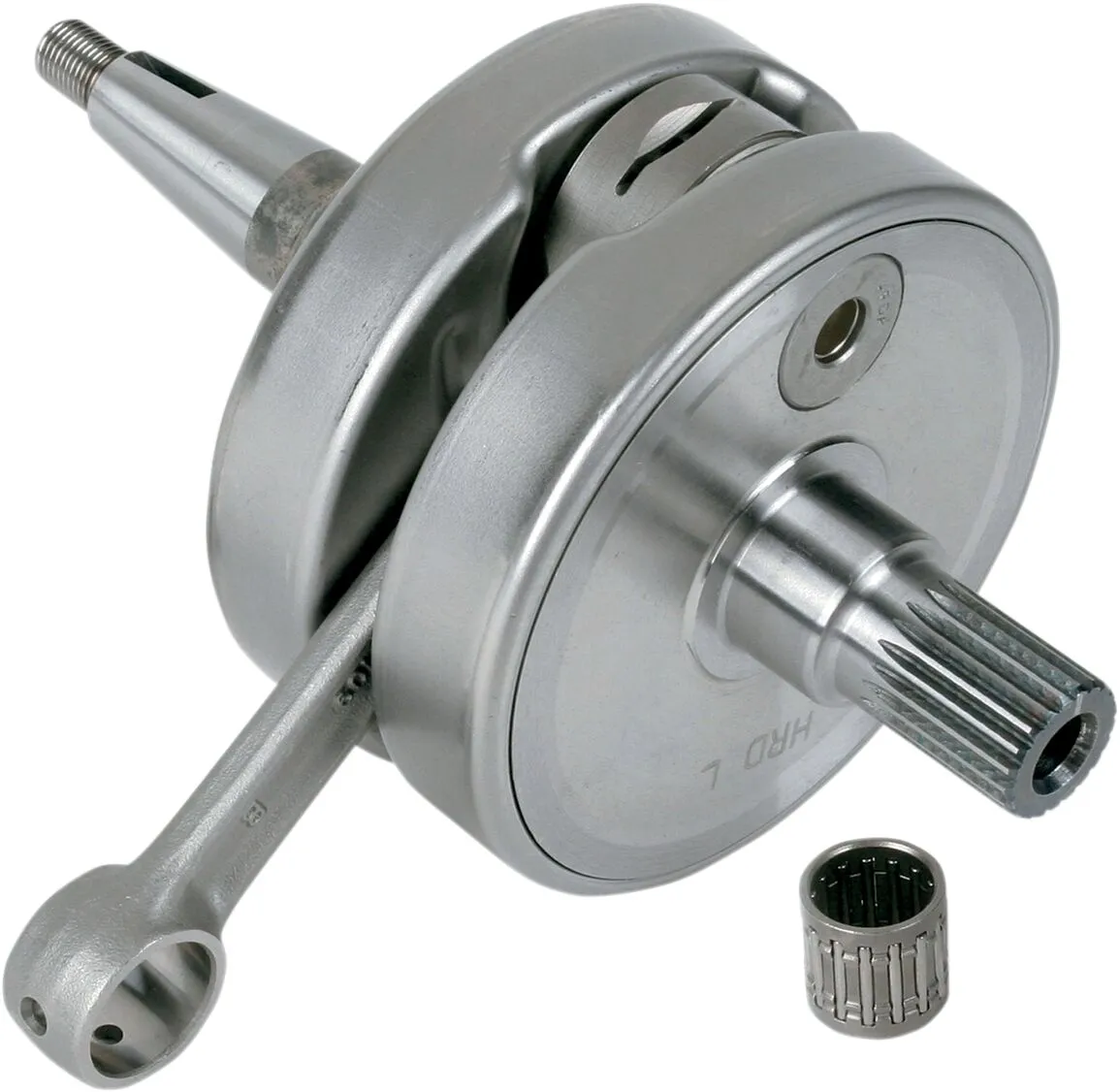

Stroker Crankshaft - Rods Honda

Assembled and aligned at the factory to OEM specifications
Direct replacement crankshaft, no modifications required unless otherwise stated
CNC machined and dynamically balanced to accommodate increased stroke
Adds +2.00 mm to +4.00 mm of stroke depending on application.
Uses original piston unless otherwise stated
Main bearings not included
Can be combined with Cylinder Works Big Bore cylinders for significant increases in capacity and power.
Not rebuildable, as the connecting rods are shorter than OEM.
The +4.00 mm stroke increase generates 260 cc with a standard piston.
Connecting rod side clearance is 0.45 mm to 0.75 mm.
IMPORTANT: The cylinder head chamber area must be machined 2.00 mm deeper to accept the long-stroke crankshaft.



Specifications


Brand
HOT RODS


Supplier reference
4107


Features
Standard crankshaft


Engine capacity
260 cc


Colour/finish
Steel


Stroke length
76,00 mm


Material
4140 Steel


Model
2-Cycle


Product name
Crankcase assembly


Type
Stroker


Units
Assembly
