Feuling, Race Series camshaft head kit

BULLETPROOF RACE SERIES CAM CHEST KIT!
FOR CHAIN HYDRAULIC TENSIONER CONVERSION UPGRADE
FEULING complete cam case kits include all the components needed from the top to the bottom of the case, conveniently packaged under a single part number (#). These combined kits not only ensure that each individual part is designed to work and function together, but that they do so in perfect harmony. These cam case kits eliminate the guesswork from the ordering process and guarantee the engine builder maximum reliability, optimum performance and the lowest possible engine and oil temperatures.

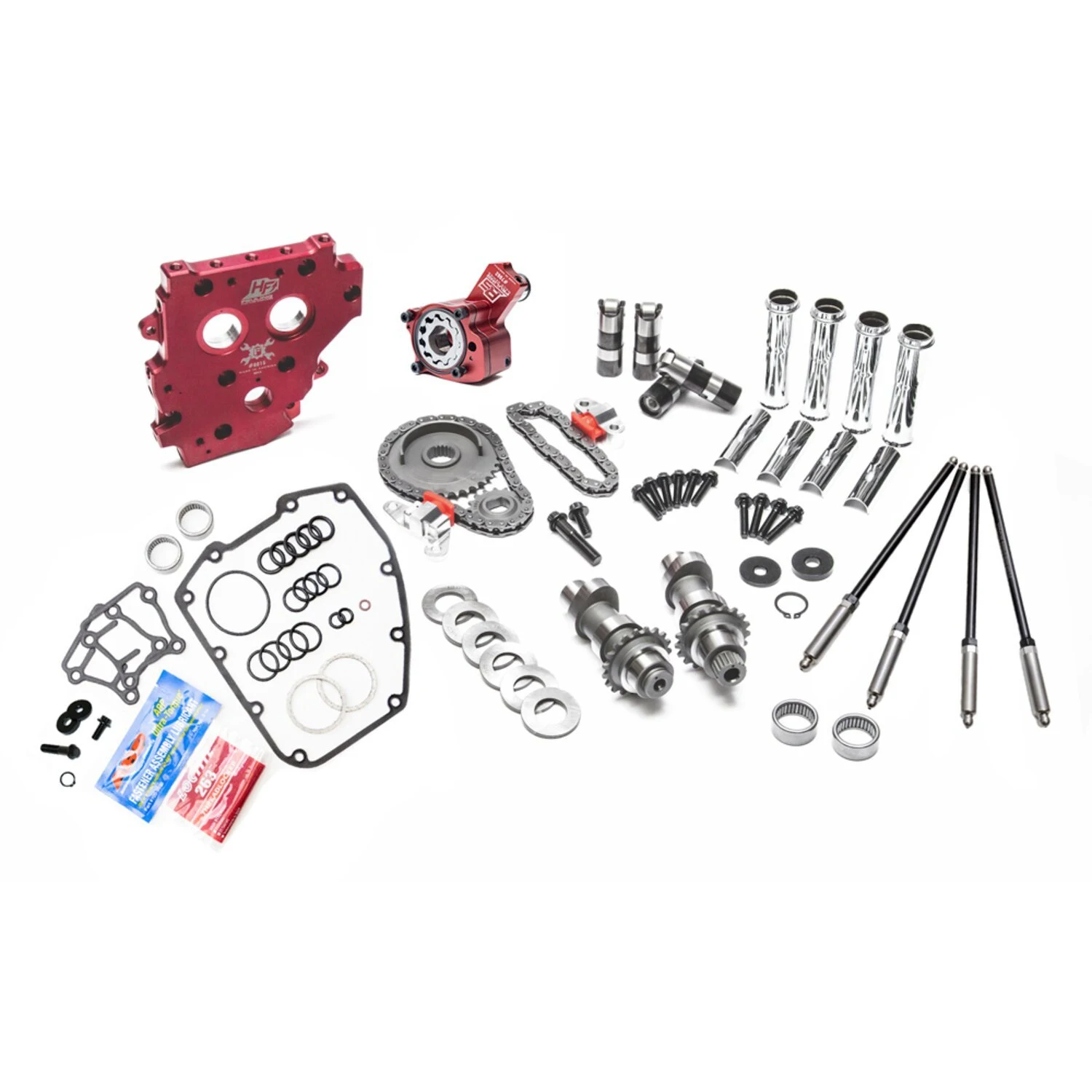

The Complete RACE SERIES Conversion Kits include: FEULING RACE SERIES high-volume oil pump, High-flow cam plate, REAPER Series conversion camshafts, RACE SERIES hydraulic roller rockers, QUICK adjustable pushrods, Chrome pushrod tubes, Hydraulic tensioner pads and housings, Sprockets, Roller chains, Cam sprocket alignment spacers, Timken bearings, Gaskets, O-rings, Exhaust gaskets, ARP fasteners, washers, molybdenum paste, Loctite and fasteners.
Cam case kits are available in FEULING HP+ and RACE SERIES combinations, and with gear-driven or chain-driven REAPER camshafts. Compatibility available for '99-'17 Twin Cam engines. Engine temperatures 25-35 degrees cooler, oil temperatures 15-30 degrees cooler, 15-30 pounds more oil pressure, quieter and smoother engine running, elimination of wet sumping, crankcase blow-by and oily air filters.
UPGRADE YOUR OLD MECHANICAL STYLE CAMSHAFTS AND TENSIONERS TO THE NEW HYDRAULIC STYLE TENSIONER SYSTEM
Conversion camshafts for Twin Cam '99-'06 engines. These camshafts use the '99-'06 inner cam journals with the '07-'17 outer cam journals, allowing the use of '07-'17 cam plates, the oil pump, hydraulic chain tensioners and the chain drive system.
630 CAMSHAFTS - Vicious power gains, wide streetable power band from a high lift camshaft for high performance engines with highly modified heads and compression ratio. Requires carburettor and/or throttle body work, along with a high performance exhaust and intake system. Retains low-rpm performance with stunning mid and high power. Requires high performance valve springs, pushrods and lifters. RPM 2,500 - 6,900+
Note: Product available on special order only.
To place an order, contact your MCS sales representative.


Specifications


Brand
Feuling


Application
99-06 Twin Cam (Excl. 2006 Dyna), Conversion chain drive cams, 630 Reaper camshafts #1018, Crank sprocket #1091, Cam sprocket with timing tab #1094, Cam install kit #2063, Race Series Lifters #4050, Quick Install adjustable pushrods #4096, Chrome pushrod tubes #4095, Race Series oil pump #7062, High Flow camplate #8015, ARP Camplate/Oil Pump Fasteners #8020, Sprocket spacers #8041, Inner cam chain #8060, Outer cam chain #8061, Outer tensioner pad and housing #8075, Inner tensioner pad and housing #8076.


Sales unit
Kit


Packaging weight
0 kg


HS Code
84831021


Motorcycle family
DYNA, SOFTAIL, TOURING


Original name
Feuling, Race Series Camchest Kit
