Feuling, St Race series cam head kit

BULLETPROOF™ CAMCHESTS!
FEULING camchest kits take the guesswork out of building your engine by grouping together the necessary components and ensuring that every part is designed to work and function in complete harmony. We guarantee maximum reliability, optimum performance and the lowest possible engine and oil temperatures.

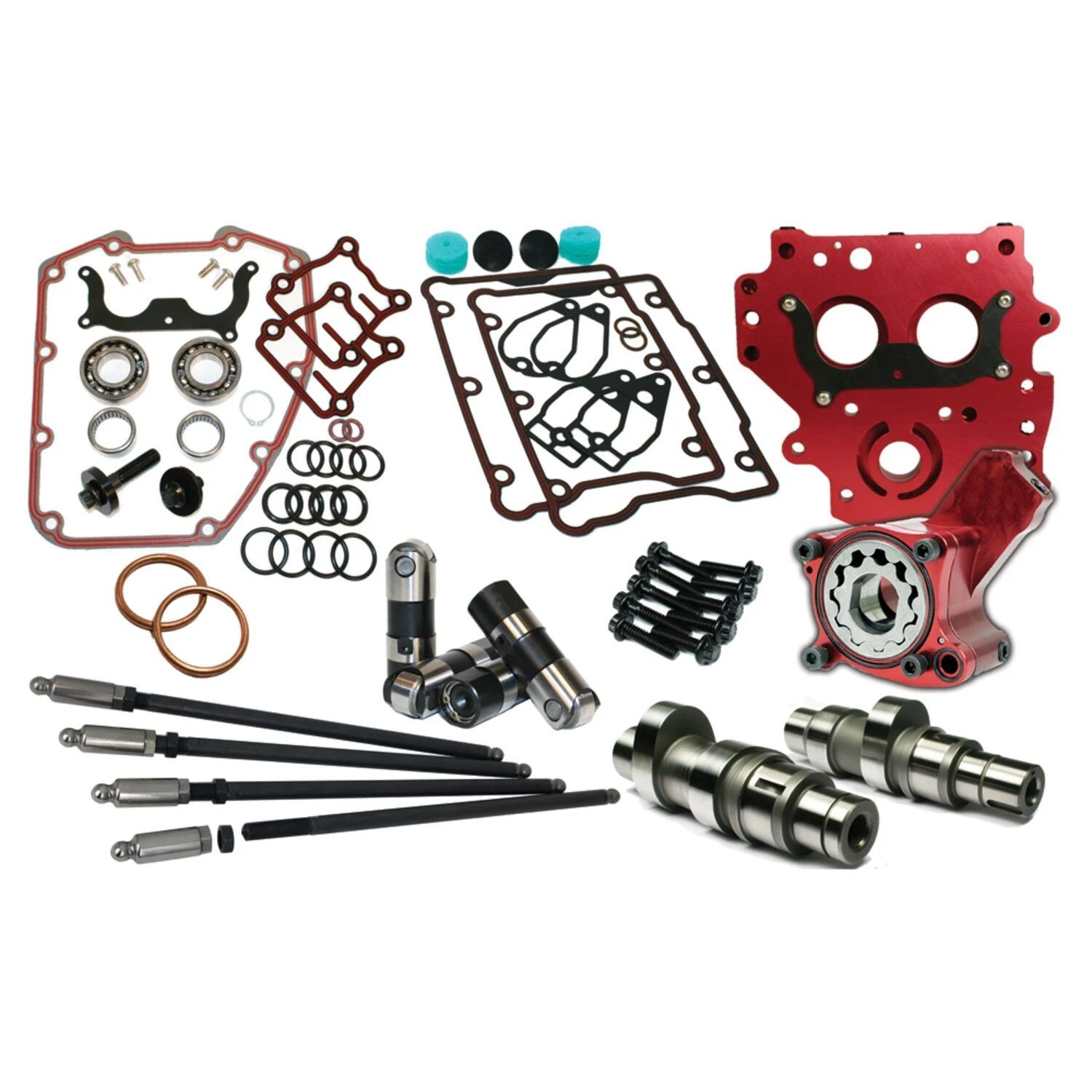

-RACE SERIES kits The kits include a RACE SERIES lubrication system: 7075 machined aluminium oil pump, RACE SERIES short-travel rocker arms, high-flow 7075 machined aluminium cam plate, quick-install adjustable pushrods with .134" wall thickness, chrome-plated pushrod tubes. Camshaft installation kit with gaskets/O-rings, Timken/Koyo camshaft bearings, ARP fasteners for camshaft/crankshaft/pump/plate, molybdenum paste, Loctite and hardware.
• CNC-machined 7075 aluminium oil pump which is 50% harder and stronger than the factory pump, maintaining tighter tolerances under temperature.
• RACE SERIES hydraulic lifters have .200" of total travel, designed with a slower bleed rate to handle high valve spring pressures, increase engine RPM before valve float and feature increased roller clearance for steep profile camshafts.
NOTE: Gear-driven camchest kits MUST purchase the cam gear kit separately – see S&S #33-4275
Camchest kits are available in FEULING HP+ and RACE SERIES combinations, and with gear or chain drive REAPER cams. Compatibility available for Twin Cam '99-'17 engines.
• ARMOUS your engine with maximum reliability • Engine temperatures 25-35 degrees cooler • Oil temperatures 15-30 degrees cooler • 15-30 lbs more oil pressure • More power • Quieter, smoother engine running • Eliminates wet sumping, crankcase gases and oily air filters.
630 CAMS - Vicious power gains, wide streetable power band from a high-lift cam profile for high-performance engines with highly modified heads and compression ratio. Requires carburettor and/or throttle body work along with a high-performance exhaust and intake system. Maintains low-rpm performance with dazzling mid and top-end power. Requires high-performance valve springs, pushrods and rocker arms. RPM 2,500 - 6,900+
Feuling does not recommend adjusting beyond factory emission standards.
NOTE: Gear-driven camchest kits MUST purchase the cam gear kit separately – see S&S #33-4275
Note: Product available on special order only.
To order, please contact your MCS sales representative.


Specifications


Brand
Feuling


Application
99-06 Twin Cam (Excl. 2006 Dyna), Gear Drive, Includes 630 Reaper™ Camshafts #1010, Cam Install kit #2060, RACE SERIES™ Short Travel Lifters #4050ST, Quick Install Adjustable Pushrods #4096, Chrome pushrod tubes #4095, RACE SERIES™ oil pump #7062, Anodized camplate #8000 and ARP Camplate/Oil Pump Fasteners #8020. Requires cam gears see S&S #33-4275


Sales unit
Kit


Packaging weight
0 kg


HS Code
84831021


Motorcycle family
DYNA, SOFTAIL, TOURING


Original name
Feuling, Race Series St Camchest Kit
