Feuling, St Race series cam head kit

BULLETPROOF™ CAMCHESTS!
Complete FEULING camchest kits include all necessary components from the top to the bottom of the camchest, conveniently packaged under a single part number. These combined kits not only ensure that every individual part is designed to work and function together, but that they do so in complete harmony. These camchest kits remove the uncertainty from the ordering process and guarantee the engine builder maximum reliability, optimum performance and the lowest possible engine and oil temperatures.

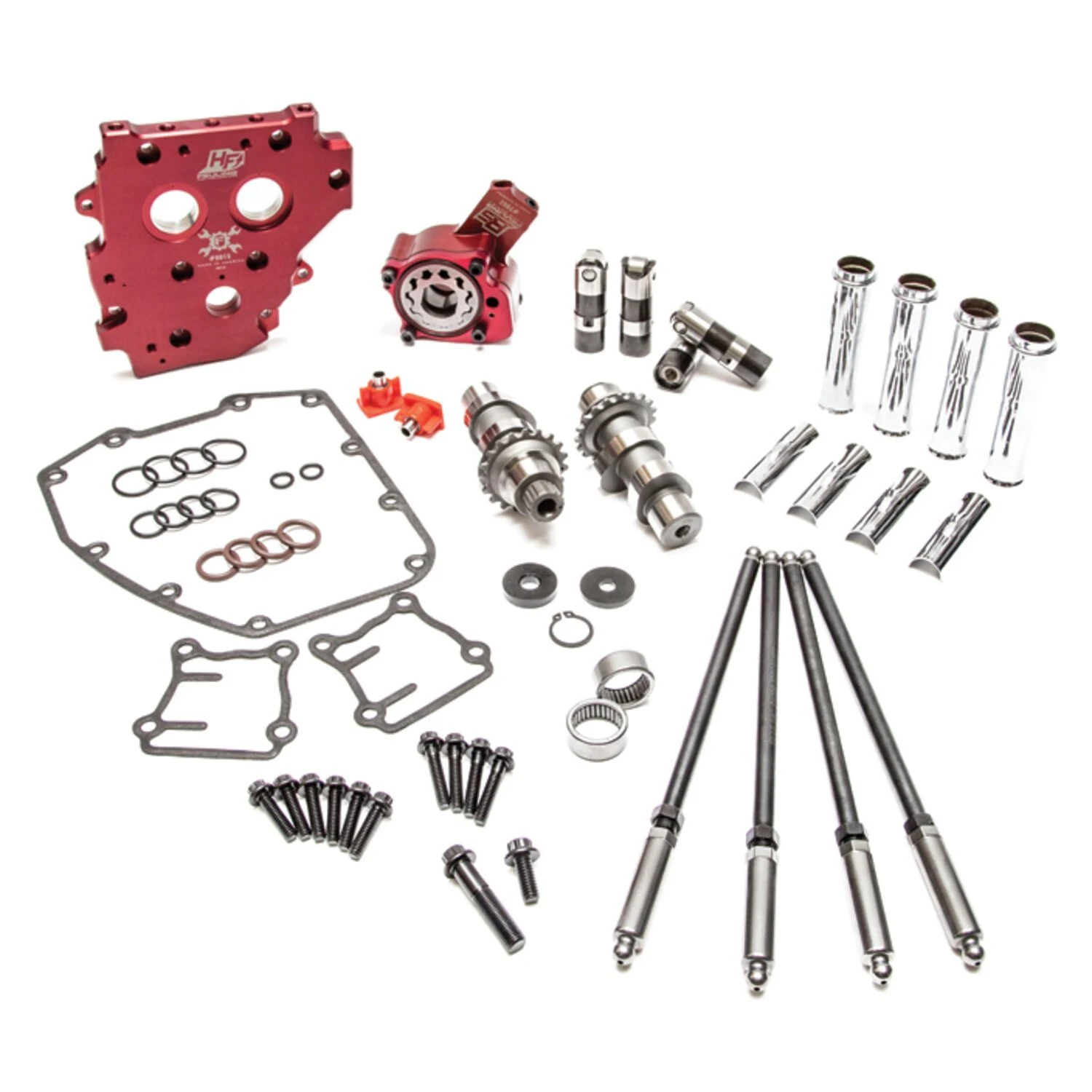

The Complete Camchest Kits include: FEULING high-volume oil pump, high-flow camplate, REAPER Series camshafts, short-travel roller hydraulic lifters, quick-install adjustable pushrods with .134" wall thickness, chrome pushrod tubes, Timken bearings, gaskets, O-rings, exhaust gaskets, ARP fasteners, washers, molybdenum paste, Loctite and hardware.
Camchest kits are available in FEULING HP+ and RACE SERIES combinations, and with gear or chain driven REAPER camshafts. Fits available for '99-'17 Twin Cam engines. Engine temperatures 25-35 degrees cooler, oil temperatures 15-30 degrees cooler, 15-30 lbs more oil pressure, quieter and smoother engine running, elimination of wet sumping, crankcase gases and oily air filters.
574 CAMS - Aggressive power band for modified engines and an excellent direct-fit option for stock 96", 103" and 110" engines. This is an excellent all-round camshaft with solid low-rev performance and dazzling mid and high-rev power. The extremely smooth cam design creates very smooth valvetrain motion. Responds very well to modified cylinder heads, increased compression ratio, high performance exhaust and intake systems. High performance valve springs are required on '99-'04 engines and high performance pushrods and lifters are recommended. RPM 2,100 - 6,500
Note: Product available on special order only.
To place an order, contact your MCS sales representative.


Specifications


Brand
Feuling


Application
TC '07-'17 Includes '06 Dyna, Chain Drive, Includes 574 Reaper™ Camshafts #1009, Cam Install kit #2070, RACE SERIES™ Short Travel Lifters #4050ST, RACE SERIES, Quick Install Adjustable Pushrods #4096, Chrome pushrod tubes #4095, RACE SERIES™ oil pump #7062, camplate #8015 and ARP Camplate/Oil Pump Fasteners #8020, Replacement tensioner pads #8078.


Sales unit
Kit


Packaging weight
0 kg


HS Code
84831021


Motorcycle family
DYNA, SOFTAIL, TOURING, TRIKE


Original name
Feuling, Race Series St Camchest Kit
