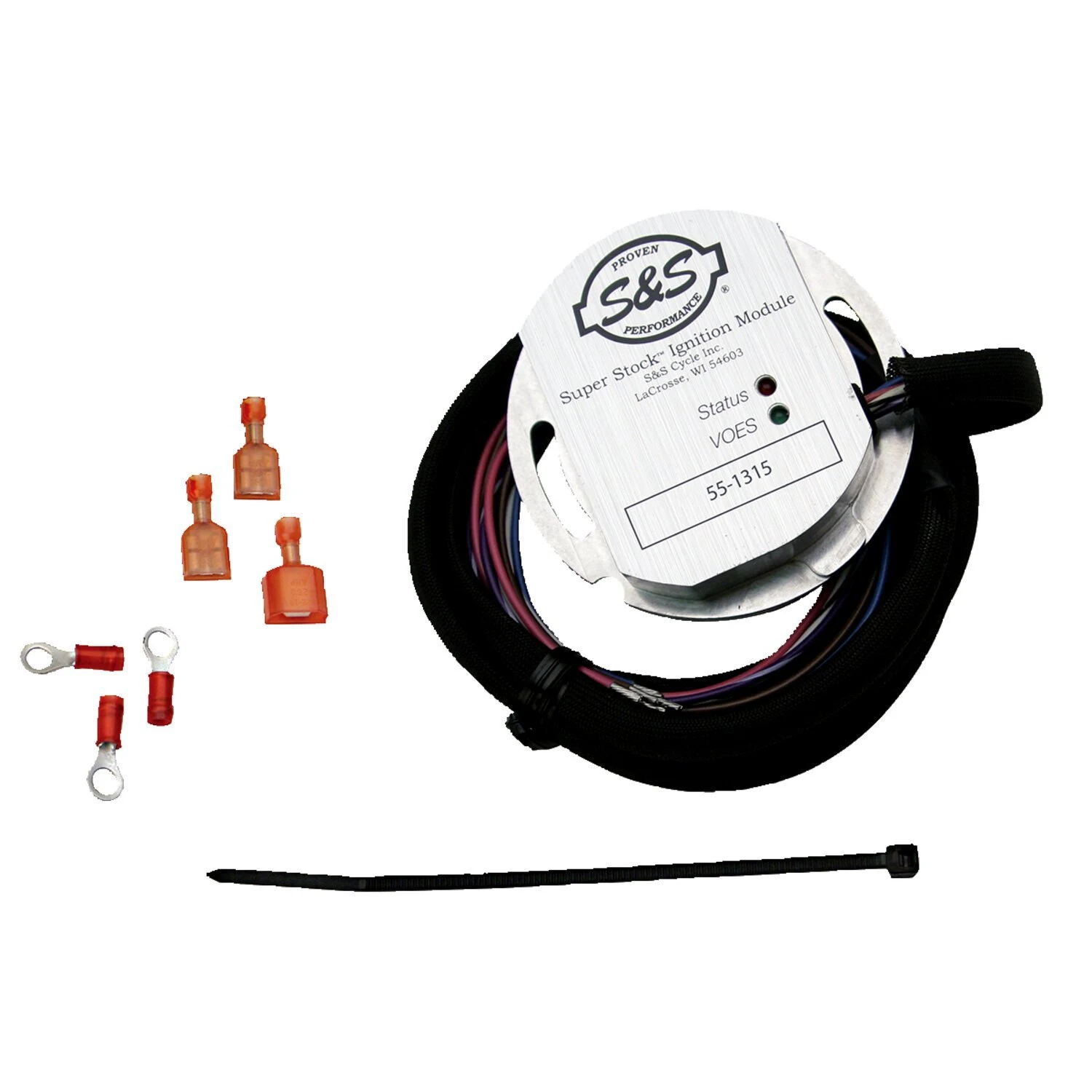

S&S SuperStock ignition module. S&S Evo 96"

Single-fire ignition. For electric start. Module only with instructions. The modules are pre-programmed with ignition curves for use with specific S&S engines. Only the basic ignition timing is set, no further adjustments are necessary. Configuration for electric start, where the engine rotates 3 revolutions before ignition sparks occur. This is done to prevent kickback that can damage the electric start components.
Note: All modules can be configured for kick or electric start by a certified S&S dealer equipped with the Super Stock diagnostic cable and software. It is also possible to view: Wide open throttle (WOT) time; the time the engine has been running at various temperatures; number of engine starts; total running time; time spent in various RPM ranges; max RPM and the amount of time spent at the rev limiter. It also allows the dealer to activate the 24-hour 'break-in' rev limiter function. If activated, it will protect a new engine by limiting engine speed. Only after 24 hours of operation will the engine be able to reach the maximum of 6300 RPM. Only modules on new S&S engines sold with the Super Stock ignition system will have the 'break-in' rev limiter activated.


Specifications


Brand
S&S


Application
FOR 96" S&S EVO ENGINES


Packaging weight
0.357 kg


HS Code
87141090


Original name
S&S, SuperStock ignition module. 96" S&S Evo
