Feuling, M8 Oil Cooled Hp+ Cam Cover Kit

FEULING M8 oil-cooled cam chest kits include all necessary components from the top to the bottom of the chest, conveniently packaged under a single part number. These combined kits not only ensure that each individual part is designed to work and function together, but to do so in perfect harmony. These cam chest kits eliminate the guesswork from the ordering process and guarantee the engine builder maximum reliability, optimum performance and the lowest possible engine and oil temperatures.
• Available in HP+ or RACE SERIES kits • Quieter and smoother engine operation • Increases oil pressure, scavenging volume and engine oil flow • 27% more pressure and scavenging gear volume compared to stock • 42% more scavenging volume with port, passage and orifice sizing matched to the crankcase • 46% more oil volume to the crankshaft and connecting rod bearings • Engine temperatures 15-25 degrees cooler • Oil temperatures 15-30 degrees cooler • 10-30 PSI additional oil pressure • Reduces wet sumping, blow-by and oily air filters • Magnets in the oil pump to help protect the gears and pressure relief valve • Test results show a gain of 2 HP and 2 ft/lbs of torque at the rear wheel on Milwaukee Eight • NOTE: FEULING in-house testing shows a 50% reduction in crankcase oil level.
- The HP+ series kits include a CNC machined 6061 aluminium high-volume oil pump, the FEULING HIGH FLOW cam plate, HP+ hydraulic roller lifters and the cam installation kit.
The 465 kits are available in FEULING HP+ and RACE SERIES combinations with chain drive REAPER camshafts.
465 CAM - The Reaper 465 is a screamer, producing solid low-range performance with substantial gains above 2,800 RPM compared to stock equipment. This direct replacement for M8 engines can be used with stock valve springs, pushrods, lifters and exhaust. It will respond well with slip-on mufflers and/or a high-performance exhaust system and air filter. The use of high-performance valve springs is not mandatory, but may result in a quieter and smoother valve train. See Feuling #1107. This cam will also respond well to an increase in displacement or compression.
Camshaft part number 1343
Valve Opening Opening Closing Duration @ .50" lift @ TDC Lobe Centre Intake .445 4 ATDC 23 ABDC 207 .100 99.5 Exhaust .465 50 BBDC 6 ABDC 236 .100 112 RPM Range: 1,850 - 5,950 Grind: 465 Overlap 10

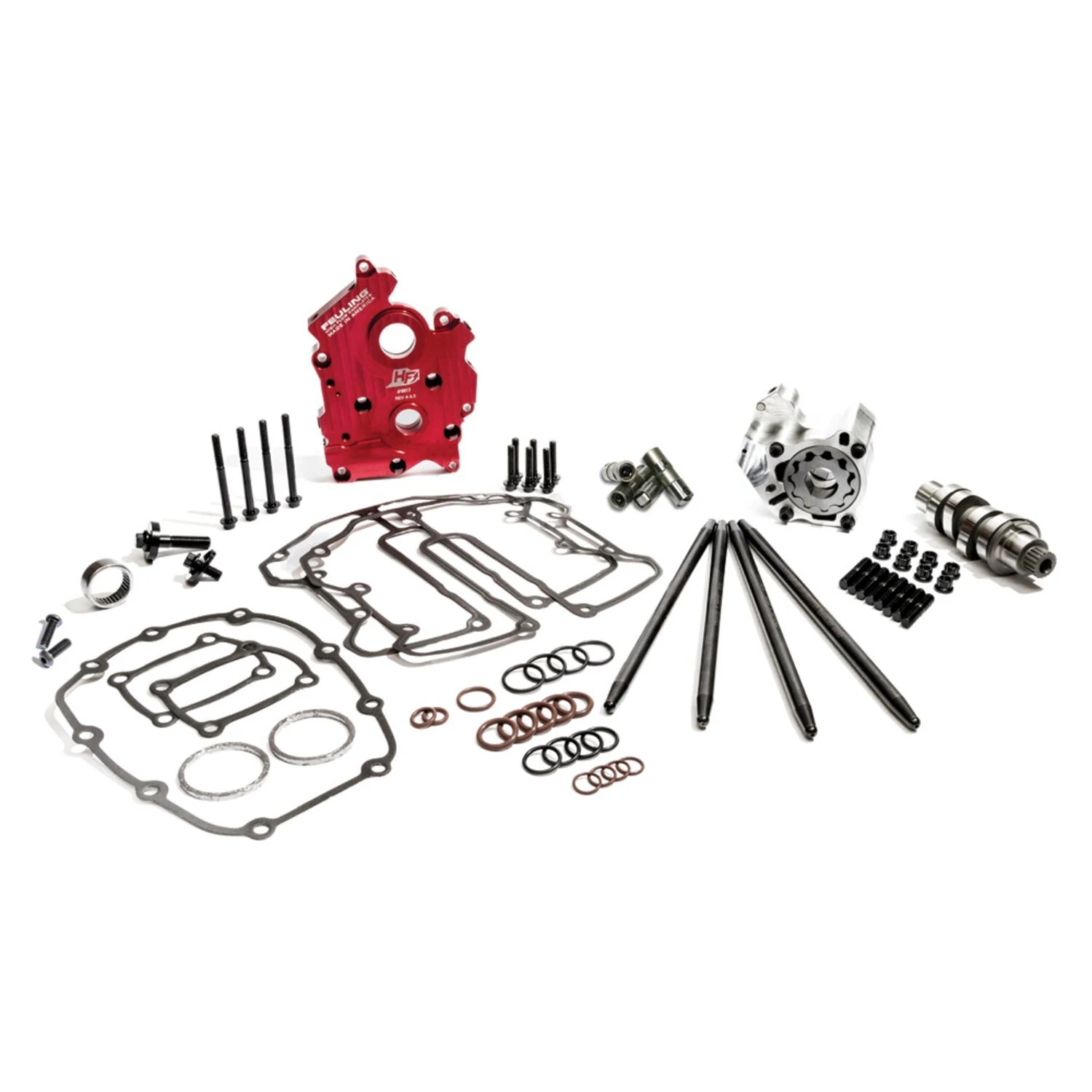

The kits include: FEULING high-volume oil pump, HIGH FLOW machined aluminium cam plate, REAPER Series camshaft, roller hydraulic lifters, fixed-length pushrods, TIMKEN/KOYO cam bearings, rocker studs and nuts, gaskets, O-rings, ARP cam/crankshaft fasteners, washers, molybdenum lubricant and LOCTITE.
Due to the large volume of calls and enquiries requesting the groove for the O-ring/cover seal on the M8 oil pump rear cover, we have added the groove! (11/05/21). Although Feuling's in-house testing on healthy engines showed no benefit. The O-ring may have potential benefits in certain circumstances, such as engines with greater cylinder compression loss, poor sealing of the internal O-ring, elevated crankcase bore and/or crankcase plug (see M8 PRO TIP below) and wider clearances between the lifter and lifter bore.
OIL LEVEL NOTE - DO NOT EXCEED THE OIL TANK OIL LEVEL It is important to obtain the correct hot oil level on your bike. Feuling recommends keeping the oil level at 90%-99% of capacity when hot.
Note: The M8 oil sump is on the right-hand side of the engine. Letting the bike idle or warm up on the side stand will naturally fill the sump and distort the oil level in the tank.
We recommend the following steps to achieve the correct oil level:
1. Check the oil level when cold.
2. Ride the motorcycle until it reaches operating temperature.
3. Switch off the motorbike whilst it is still in an upright position. (This ensures an accurate reading) 4. Once the motorbike is on its side stand, check the oil level.
5. Add or remove oil as necessary.
HP+ crankcase kit Compatible with: Oil-cooled M8 engines
EXEMPT FROM EMISSIONS ALTERATION REGULATIONS UNDER CARB EO# D-881-1, Legal in all 50 states, per CARB: CARB EO# D-881-1
Feuling does not recommend adjusting beyond stock emissions standards.
Note: Product available on special order only.
To order, please contact your MCS sales representative.


Specifications


Brand
Feuling


Application
M8 '17-'24 Except VVT oil cooled, Chain Drive, Includes 465 Reaper Camshafts #1343, Cam Install kit #2030, HP+ Lifters #4000, one piece pushrods #4087, HP+ oil pump #7018, HIGH FLOW camplate #8017, and ARP Rocker studs and nuts, Camplate/Oil Pump Fasteners.


Sales unit
Kit


Packaging weight
0 kg


HS Code
84831021


Motorcycle family
SOFTAIL, TOURING, TRIKE


Original name
Feuling, Hp+ Camchest Kit, Oil Cooled M8
